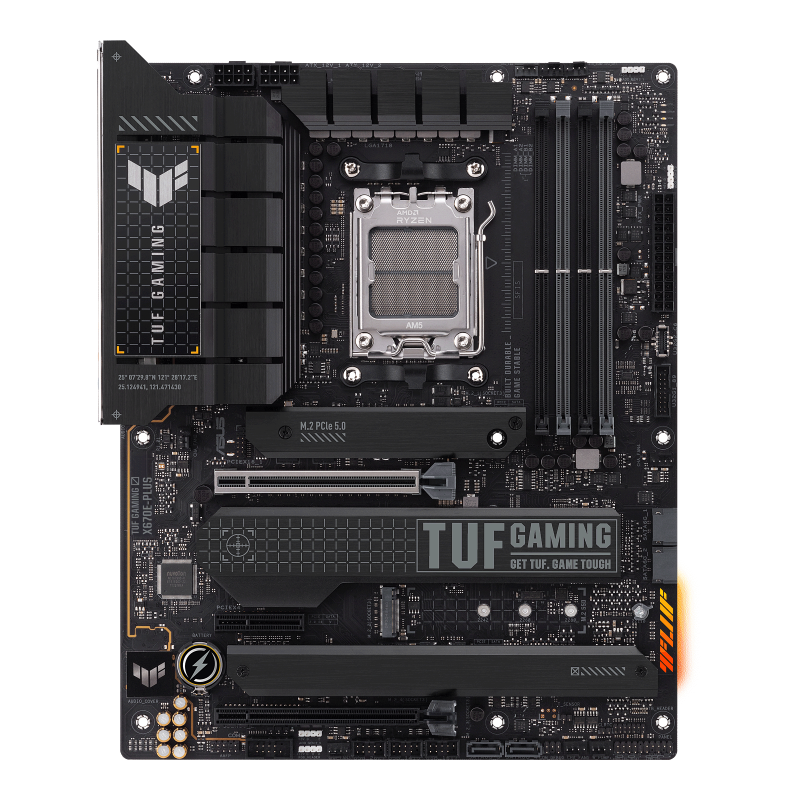

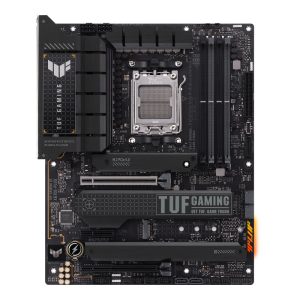

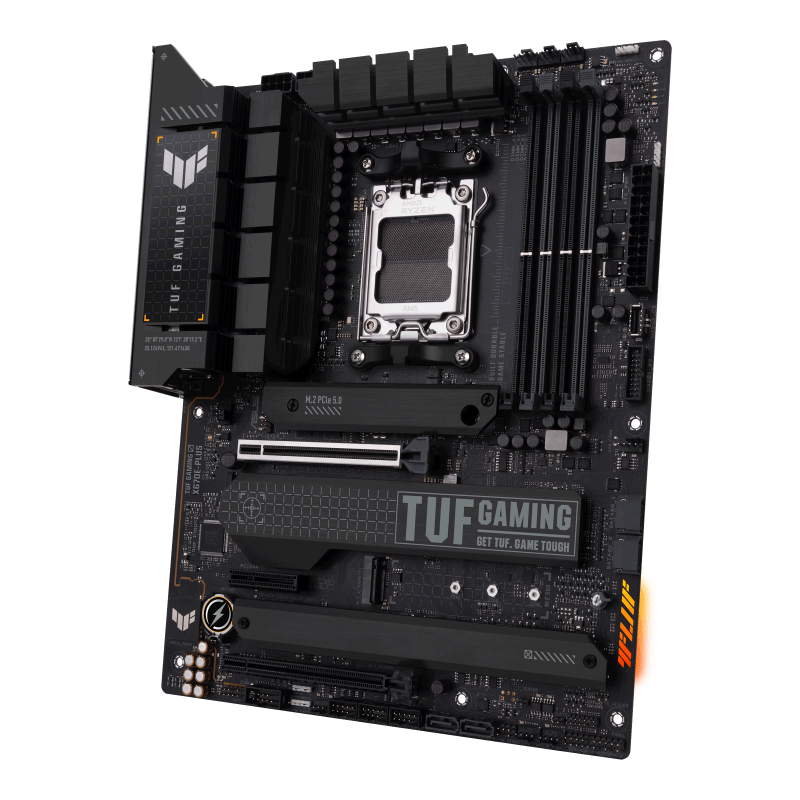

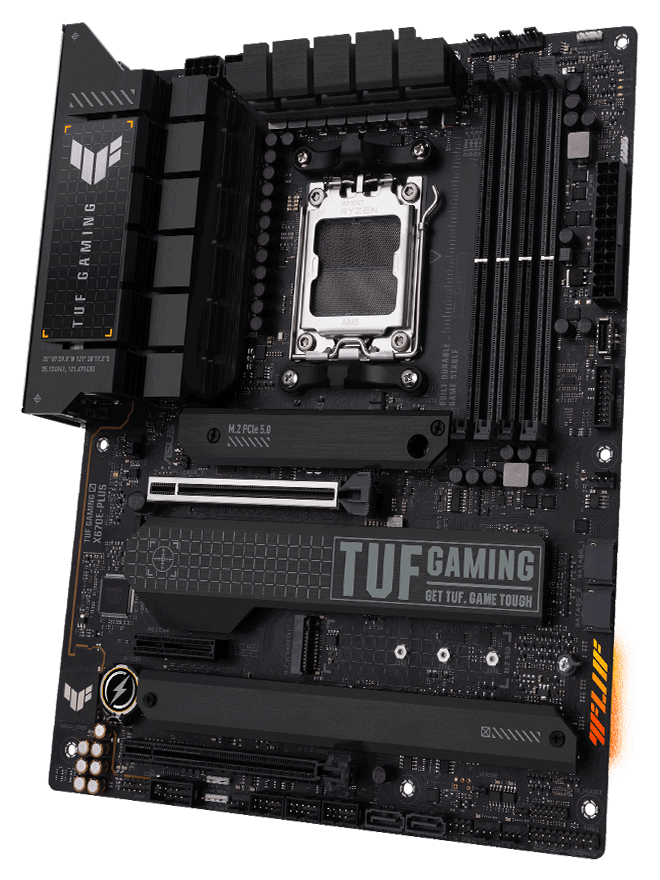

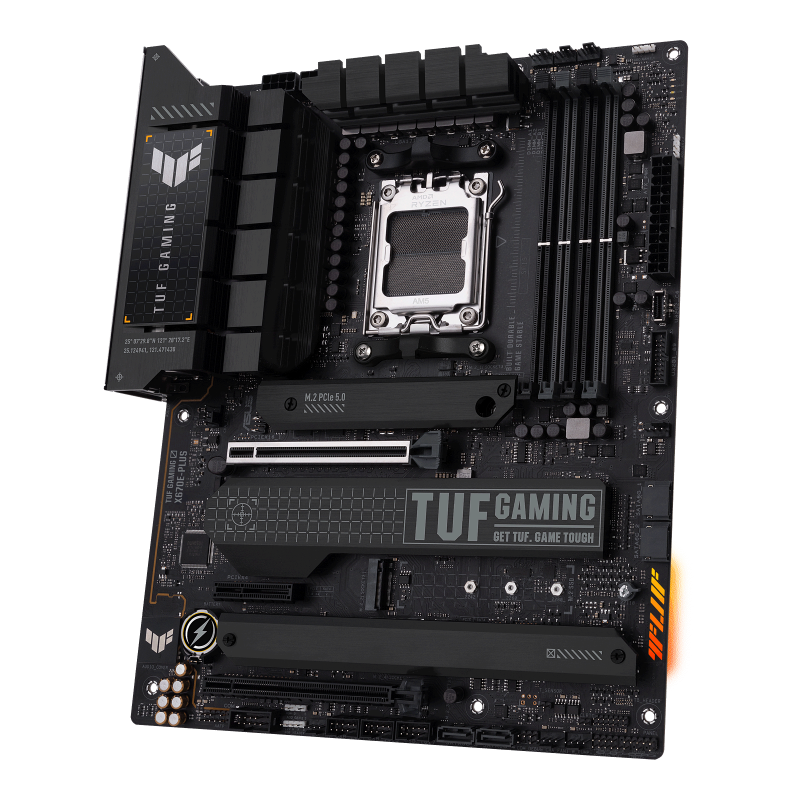

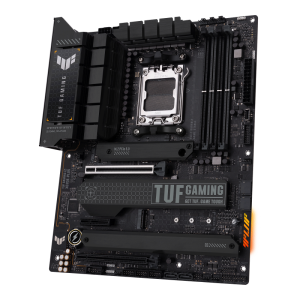

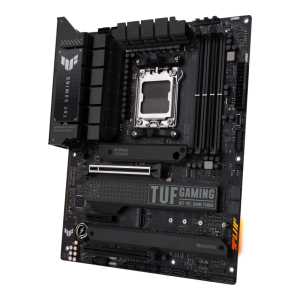

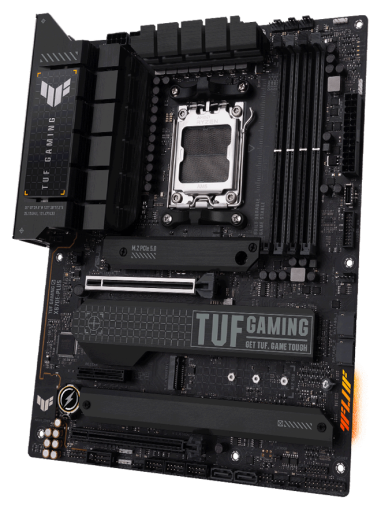

ASUS TUF GAMING X670E-PLUS
Brand:
ASUS
- :4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); OptiMem II
- :1 x DisplayPort**; 1 x HDMI® port***
- :Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*; - Impedance sense for front and rear headphone outputs; - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers; - Supports: Jack-detection, Multi-stream...
- :1 x Realtek 2.5Gb Ethernet; TUF LANGuard
- :AMD Ryzen™ 7000 Series Desktop Processors*; -1 x PCIe 5.0 x16 slot; AMD X670 Chipset; -1 x PCIe 4.0 x16 slot (supports x4 mode); -1 x PCIe 4.0 x4 slots

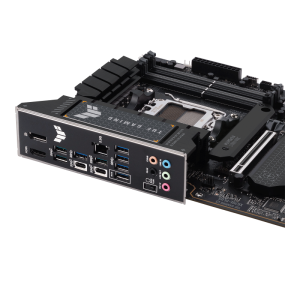

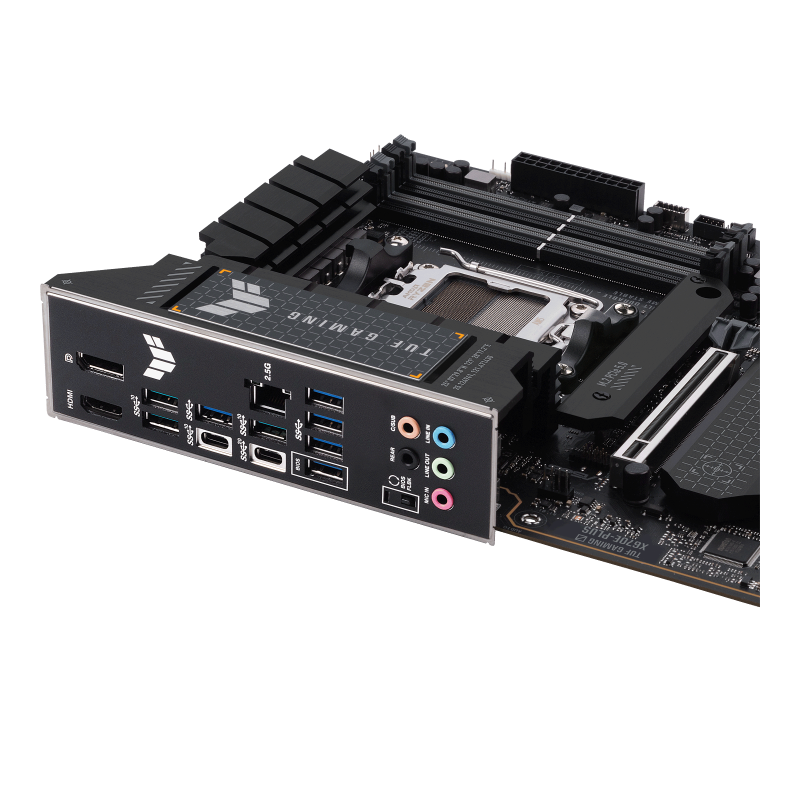

- :1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®); 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C®); 5 x USB 3.2 Gen 1 ports (5 x Type-A); 1 x DisplayPort; 1 x HDMI® port; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x BIOS FlashBack™ button
- :ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- :AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
- :AMD X670
- :Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*; AMD Ryzen™ 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); AMD X670 Chipse...
- :1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; 1 x W_PUMP+ header; 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connectors; 4 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB...
- :256 Mb Flash ROM, UEFI AMI BIOS
