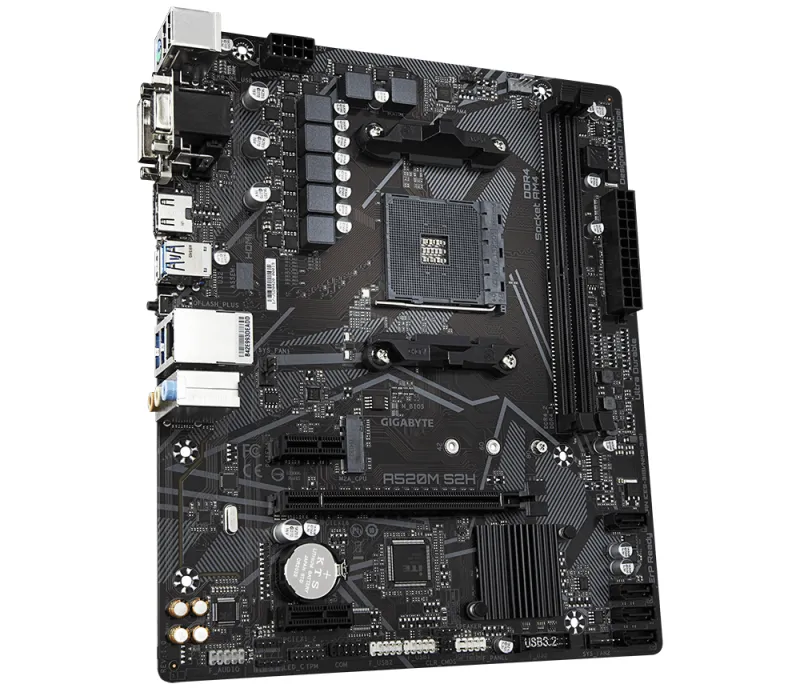

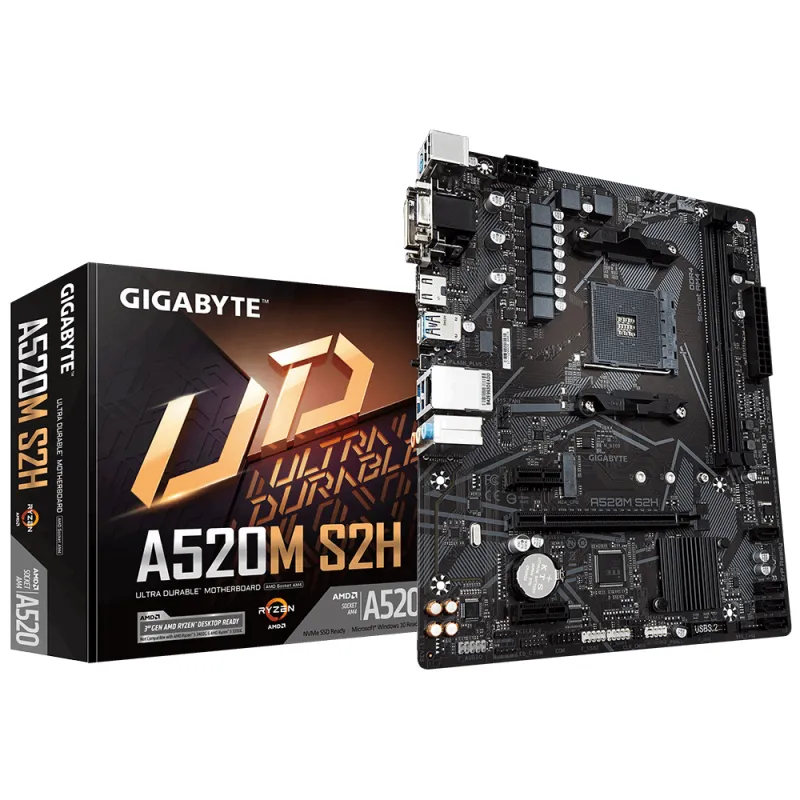

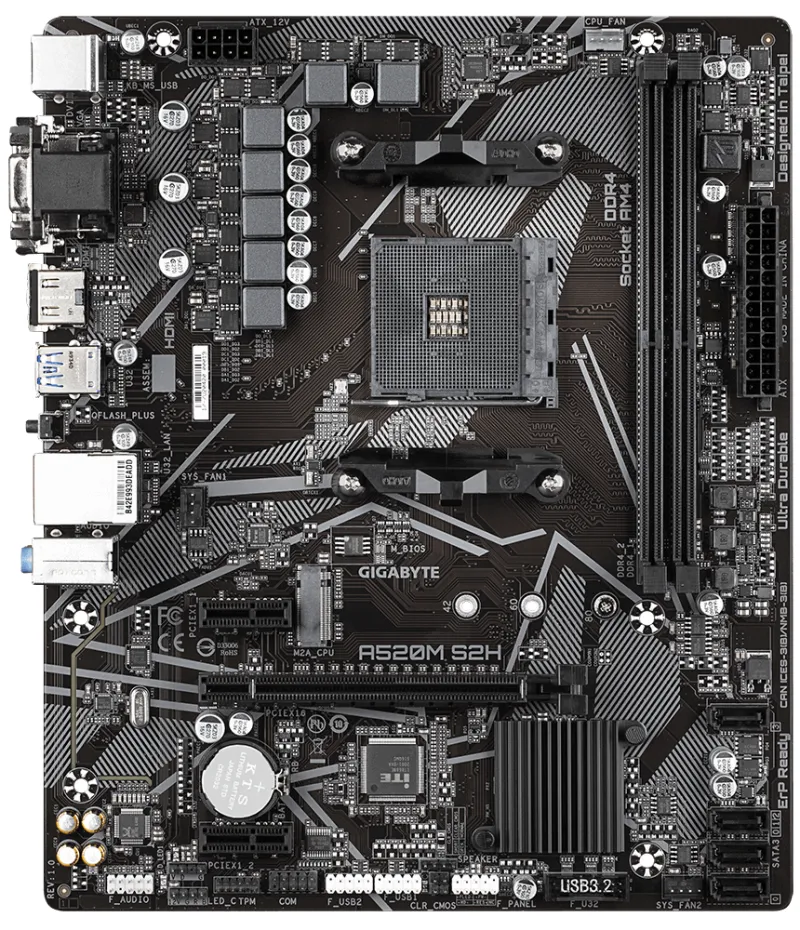

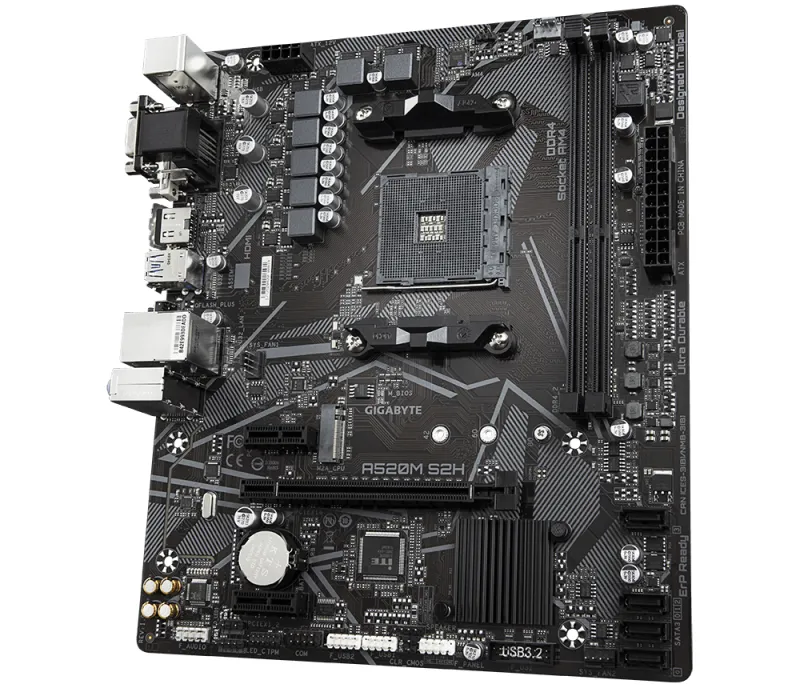

Motherboard GIGABYTE A520M-S2H, Socket AM4
Brand:
GIGABYTE
- Power Connector:1 x 24-pin;1 x 8-pin
- CPU supports:5000 Series AMD Ryzen
- Memory Standard:DDR4
- Maximum Memory Supported:64 GB
- Number of Memory Slots:2
- Frequency Memory:5100(OC) MHz
- Support Dualchannel:Yes
- Integrated Audio:Realtek ALC887
- Integrated LAN:Realtek GbE LAN (10/100/1000 Mbit)
- PCI-E x16:1 x PCIe 3.0/2.0 x16
- Interface Serial ATA:4 x SATA3 6.0 Gb/s
- Connectors:1 x Q-Flash Plus button
- USB Ports:2 x USB 2.0
- CPU Socket:AM4
- PCI-E x1:2
- M2 socket:1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
- Raid support:0,1,10
