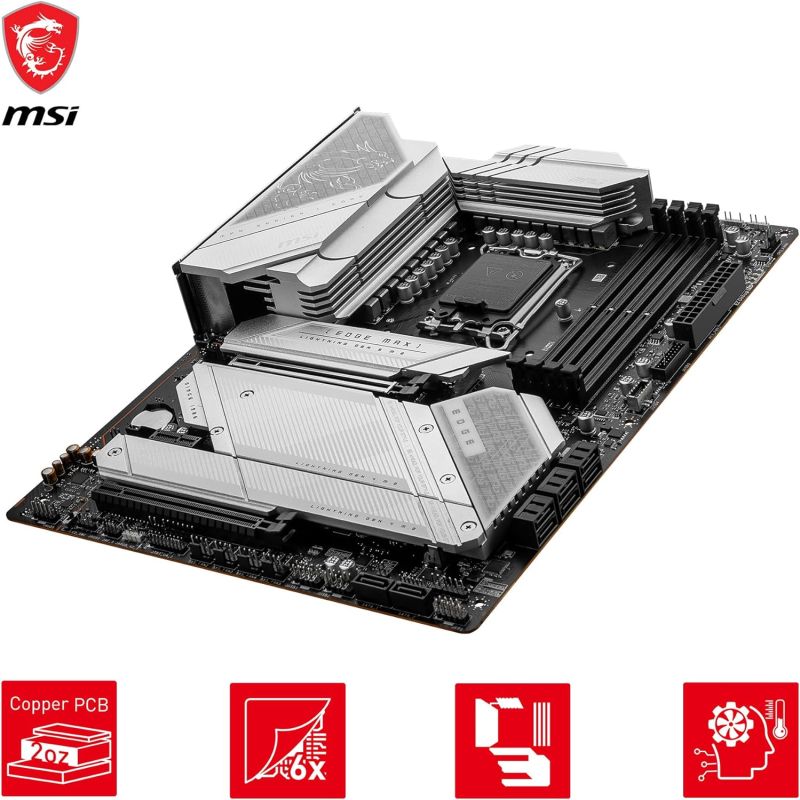

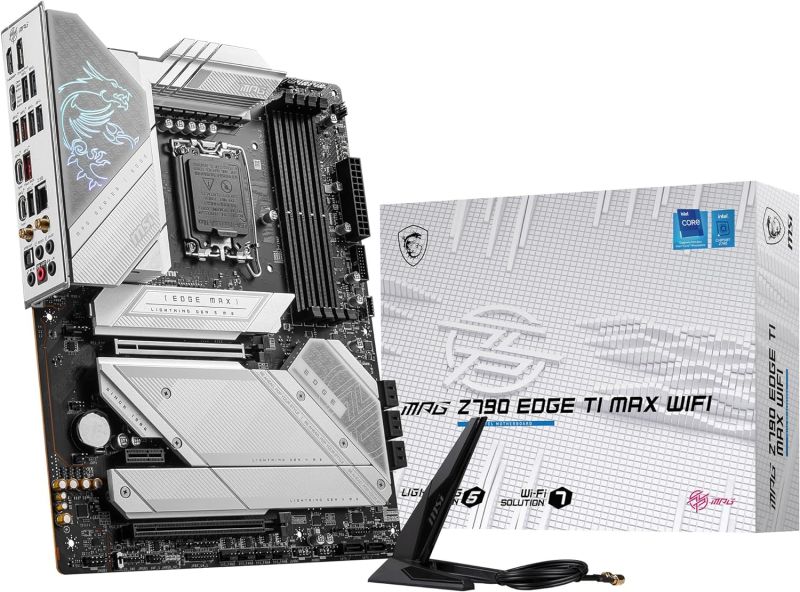

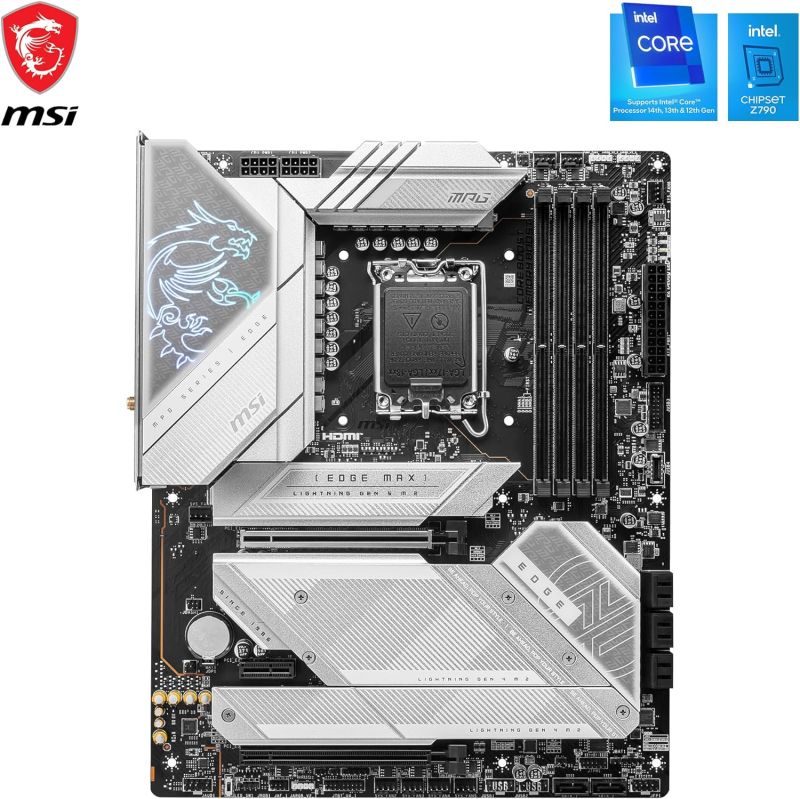

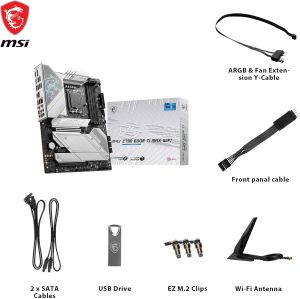

MSI MPG Z790 EDGE TI MAX WIFI
Brand:
MSI
- Form factor:ATX Form Factor
- Warranty:36 Months
- :MPG Z790 EDGE TI MAX WIFI

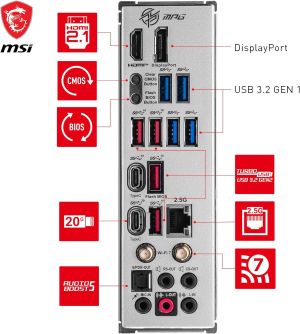

- :Display Port; USB 3.2 Gen 1 5 Gbps (Type-A); USB 3.2 Gen 2 10Gbps (Type-A); 2.5G LAN; Audio Connectors; HDMI™; Clear CMOS; Flash BIOS; USB 3.2 Gen 2 10Gbps (Type-C); USB 3.2 Gen 2x2 20Gbps (Type-C); Wi-Fi / Bluetooth; Optical S/PDIF Out;
- :Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices;
- :Wi-Fi 7 Solution; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.4**, MLO, 4KQAM;
- :4x DDR5, Maximum Memory Capacity 256GB; Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC); 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC); 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC); 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking...
- :1x HDMI; Support HDMI™ 2.1, maximum resolution of 4K 60Hz; 1x DisplayPort; Support DP 1.4, maximum resolution of 8K 60Hz;
- :Realtek® ALC4080 Codec; 7.1-Channel USB High Performance Audio; Supports up to 32-Bit/384 kHz playback on front panel;
- :Intel® 2.5Gbps LAN

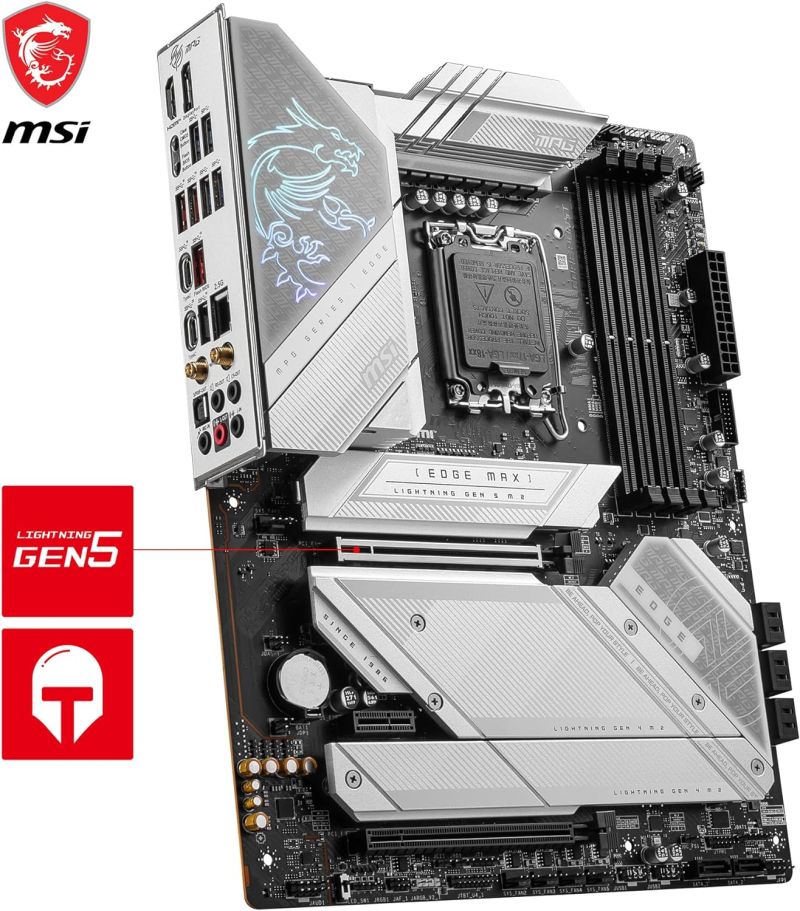

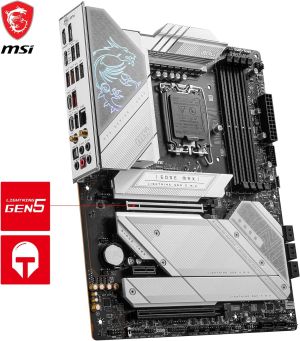

- :2 x PCI-E x16 slot; 1 x PCI-E x1 slot; PCI_E1 PCIe 5.0 supports up to x16 (From CPU); PCI_E2 PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 PCIe 4.0 supports up to x4 (From Chipset);
- :Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
- :4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 4x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear);
- :INTEL Z790
- :1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 5x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connecto...
- :Flash BIOS

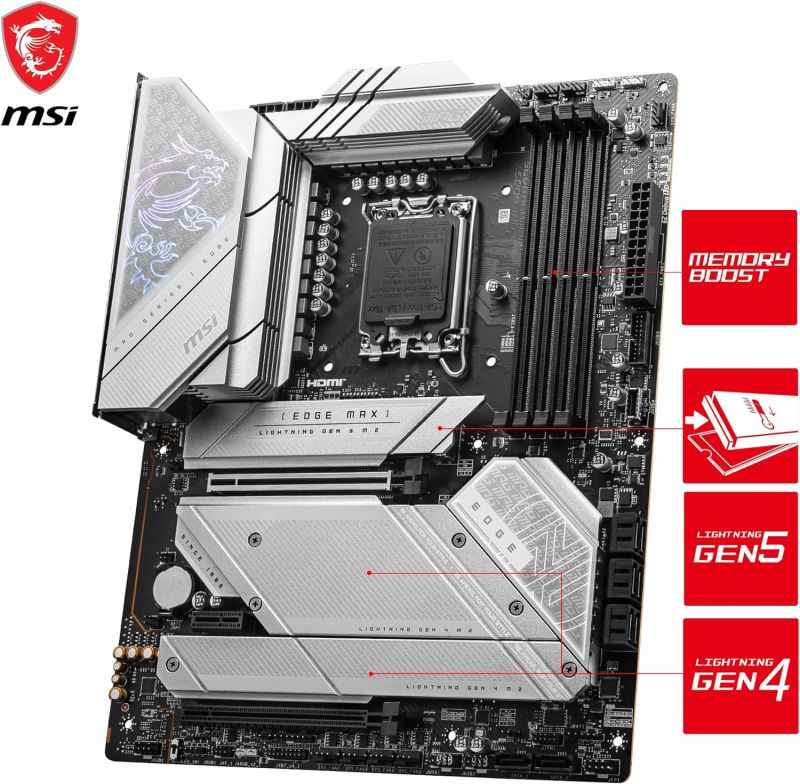

- :5x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supp...
