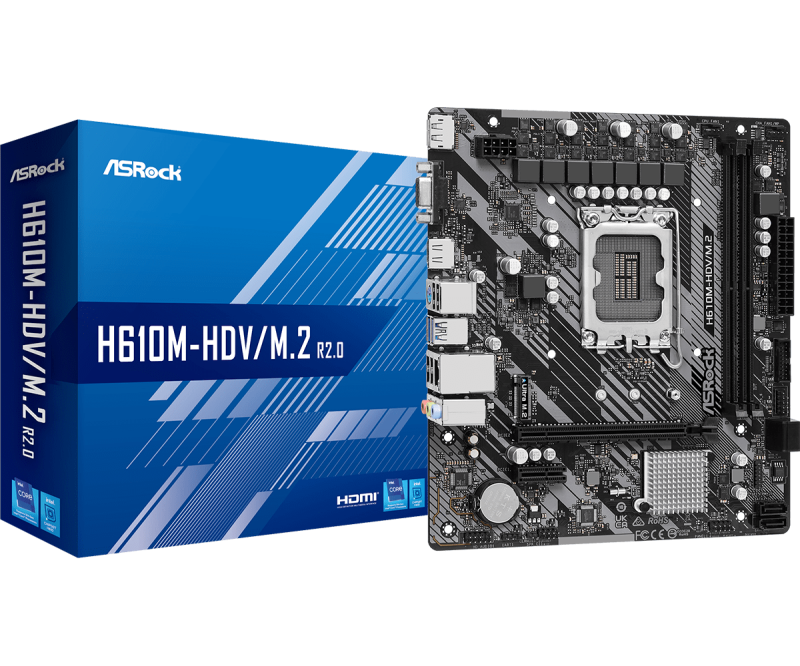

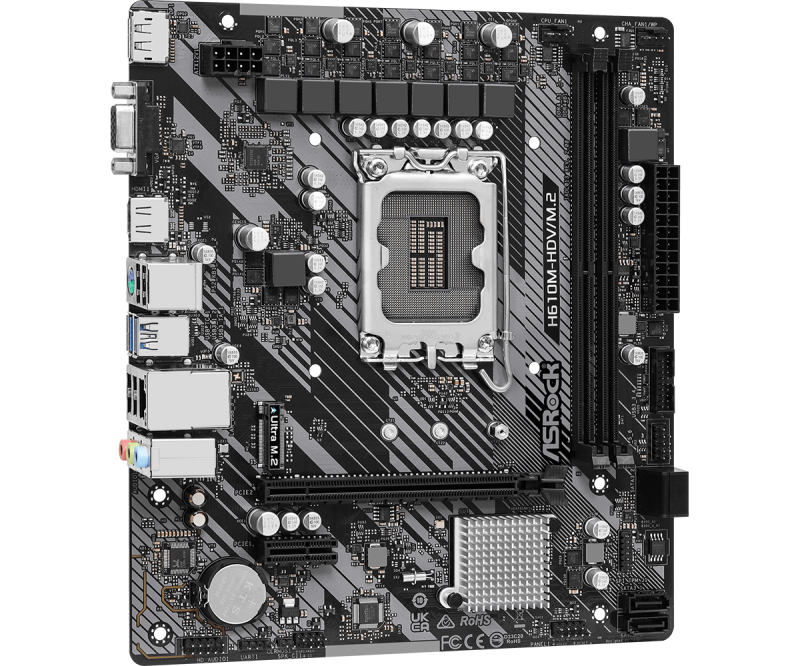

ASROCK H610M-HDV/M.2 R2.0/DDR4
Brand:
ASROCK
- :Dual Channel DDR4 Memory Technology; 2 x DDR4 DIMM Slots; Supports DDR4 non-ECC, un-buffered memory up to 3200; Supports ECC UDIMM memory modules (operate in non-ECC mode); Max. capacity of system memory: 64GB*; Supports Intel® Extreme Memory Profile (...
- :Intel® Xe Graphics Architecture (Gen 12); Three graphics output options: D-Sub, HDMI and DisplayPort 1.4; Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; Supports DisplayPort 1.4 with DSC (compressed) max. resol...
- :7.1 CH HD Audio (Realtek ALC897 Audio Codec); Supports Surge Protection
- :PCIE x1 Gigabit LAN 10/100/1000 Mb/s; 1 x Realtek RTL8111H; Supports Wake-On-LAN; Supports Lightning/ESD Protection; Supports Energy Efficient Ethernet 802.3az; Supports PXE
- :CPU: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*' Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE1)

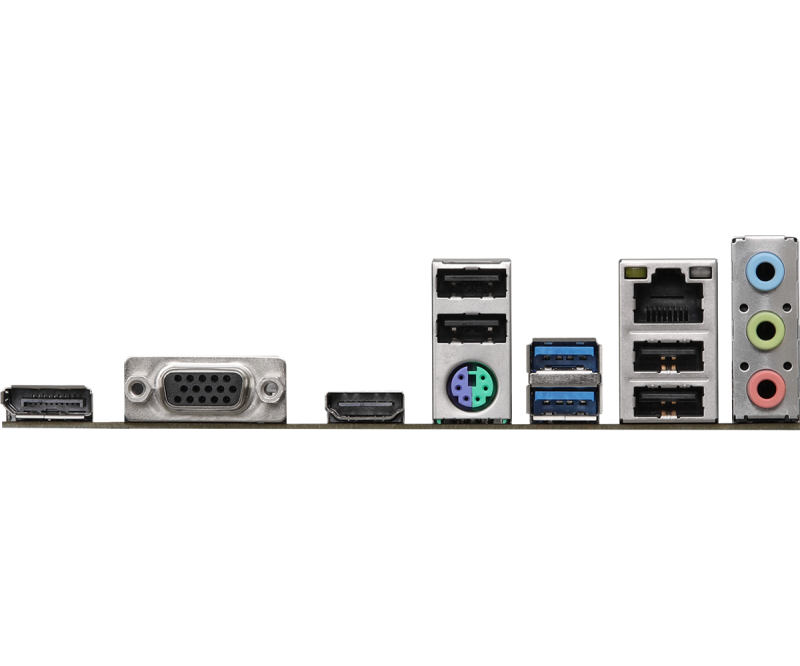

- :1 x PS/2 Mouse/Keyboard Port; 1 x D-Sub Port; 1 x HDMI Port; 1 x DisplayPort 1.4; 2 x USB 3.2 Gen1 Ports (Supports ESD Protection); 4 x USB 2.0 Ports (Supports ESD Protection); 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jacks: L...
- :Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm; Solid Capacitor design
- :- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700); - 6+1+1 Power Phase design; - Supports Intel® Hybrid Technology; - Supports Intel® Turbo Boost Max 3.0 Technology
- :- Intel® H610
- :Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors
- :1 x SPI TPM Header; 1 x Chassis Intrusion and Speaker Header; 1 x CPU Fan Connector (4-pin)*; 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**; 1 x 24 pin ATX Power Connector; 1 x 8 pin 12V Power Connector; 1 x Front Panel Audio...
- :128Mb AMI UEFI Legal BIOS with multilingual GUI support; ACPI 6.0 Compliant wake up events; SMBIOS 2.7 Support; PU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage...
