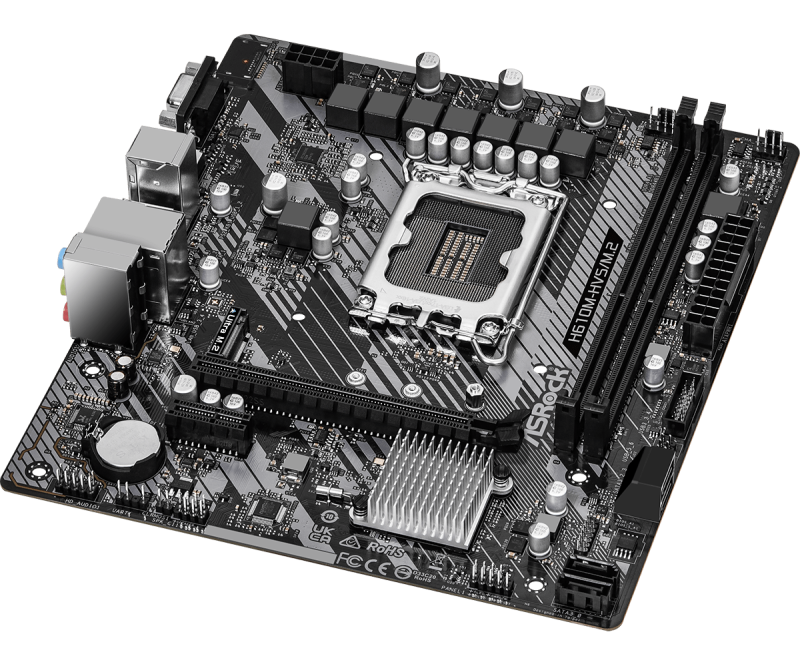

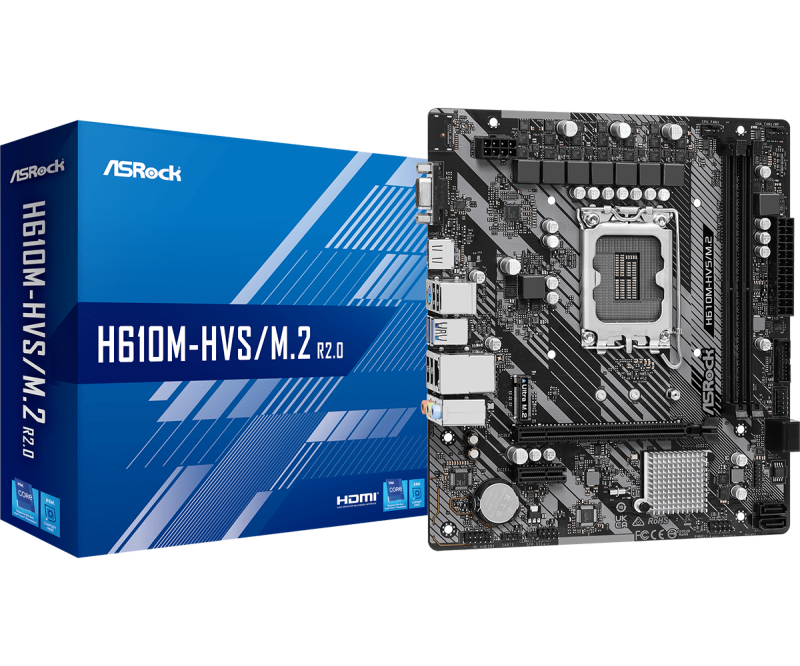

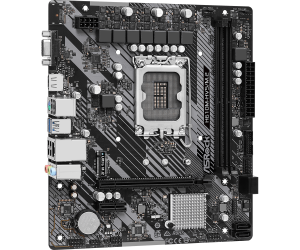

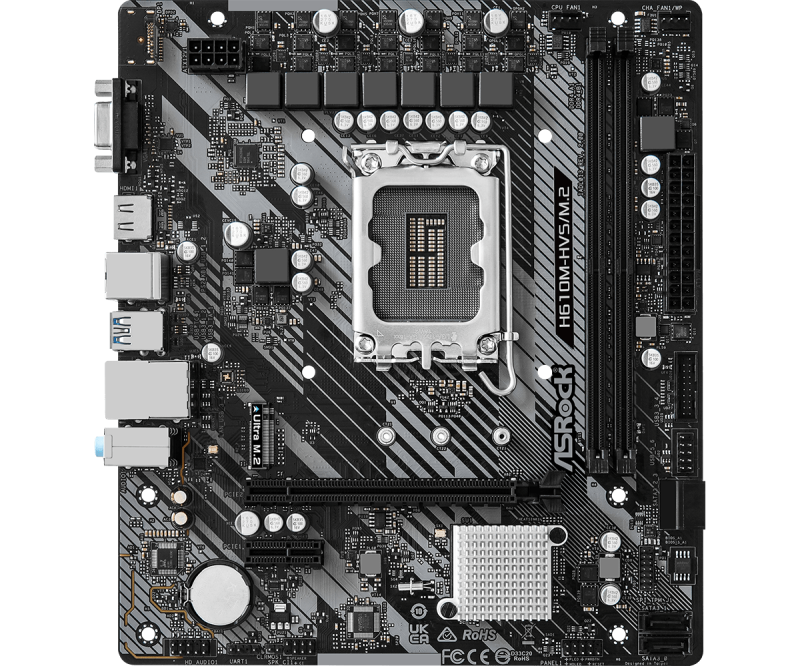

ASROCK H610M-HVS/M.2 R2.0
Brand:
ASROCK
- :- Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - Supports DDR4 non-ECC, un-buffered memory up to 3200; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 64GB; - Supports Intel® Extreme Memor...
- :- Intel® Xe Graphics Architecture (Gen 12); - Dual graphics output: support HDMI and D-Sub ports by independent display controllers; - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports D-Sub with max. r...
- :- 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec); - Supports Surge Protection
- :- PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - 1 x Realtek RTL8111H; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE
- :CPU: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*; Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE1)

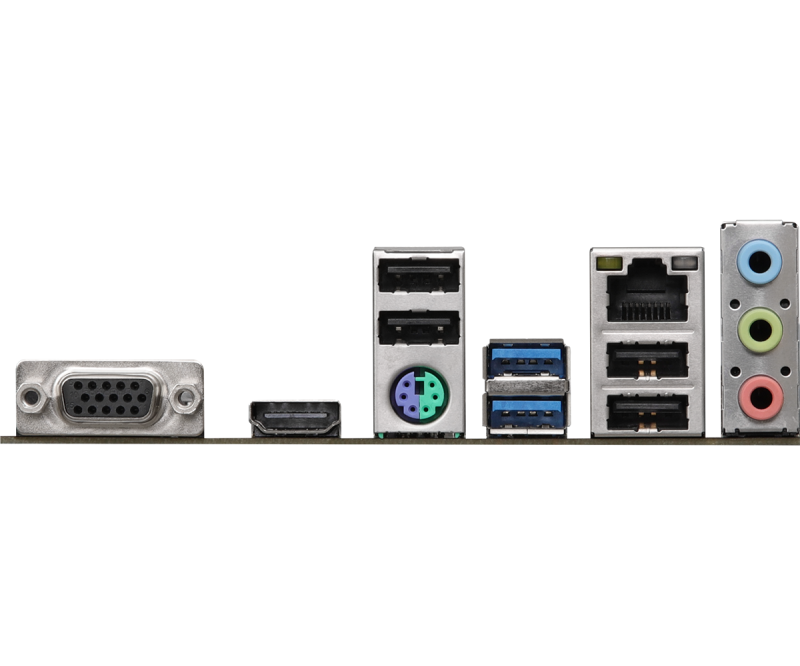

- :- 1 x PS/2 Mouse/Keyboard Port; - 1 x D-Sub Port; - 1 x HDMI Port; - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection); - 4 x USB 2.0 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Line in...
- :- Micro ATX Form Factor: 8.76-in x 7.4-in, 22.3 cm x 18.8 cm; - Solid Capacitor design
- :- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700); - 7 Power Phase design; - Supports Intel® Hybrid Technology; - Supports Intel® Turbo Boost Max 3.0 Technology
- :- Intel® H610
- :Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors
- :- 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin)*; - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Fro...
- :- 128Mb AMI UEFI Legal BIOS with multilingual GUI support; - ACPI 6.0 Compliant wake up events; - SMBIOS 2.7 Support; - CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC...
