Brand:
MSI
- :AMD Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX; Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.3**
- :4x DDR5, Maximum Memory Capacity 192GB; Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency: • 1DPC 1R Max speed up to...
- :1x HDMI™; Support HDMITM 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Supports DP1.4, maximum resolution of 4K 60Hz*
- :Realtek® ALC897 Codec; 7.1-Channel High Definition Audio
- :Realtek® 8125BG 2.5G LAN
- :2x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

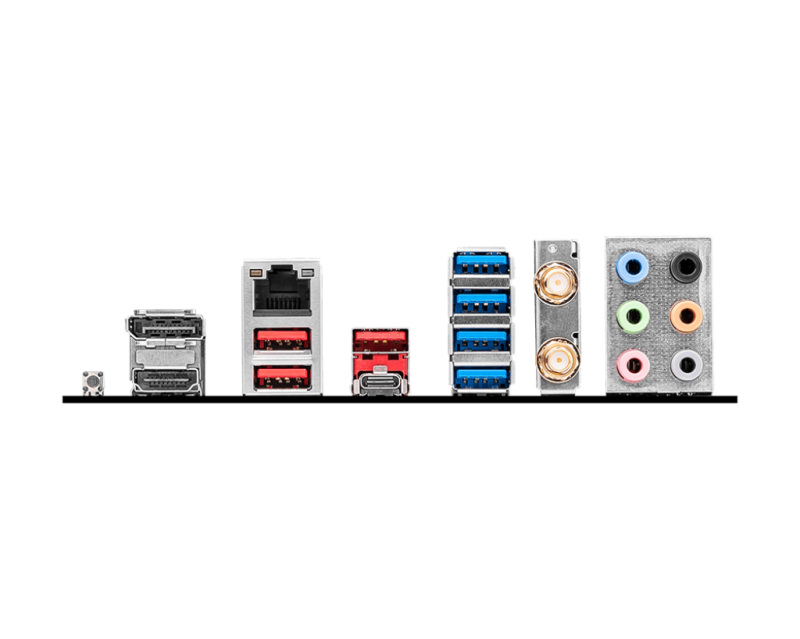

- :DisplayPort; 2.5G LAN; USB 3.2 Gen 2 10Gbps (Type-A); USB 3.2 Gen 1 5Gbps (Type-A); Wi-Fi / Bluetooth; Audio connectors; Flash BIOS Button; HDMI™; USB 3.2 Gen 2 10Gbps (Type-A); USB 3.2 Gen 2x2 20Gbps (Type-C)
- :ATX, 243.84mmx304.8mm
- :Supports AMD Ryzen™ 7000 Series Desktop Processors; Socket AM5
- :AMD B650
- :2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices; M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G
- :1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 4x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB...
