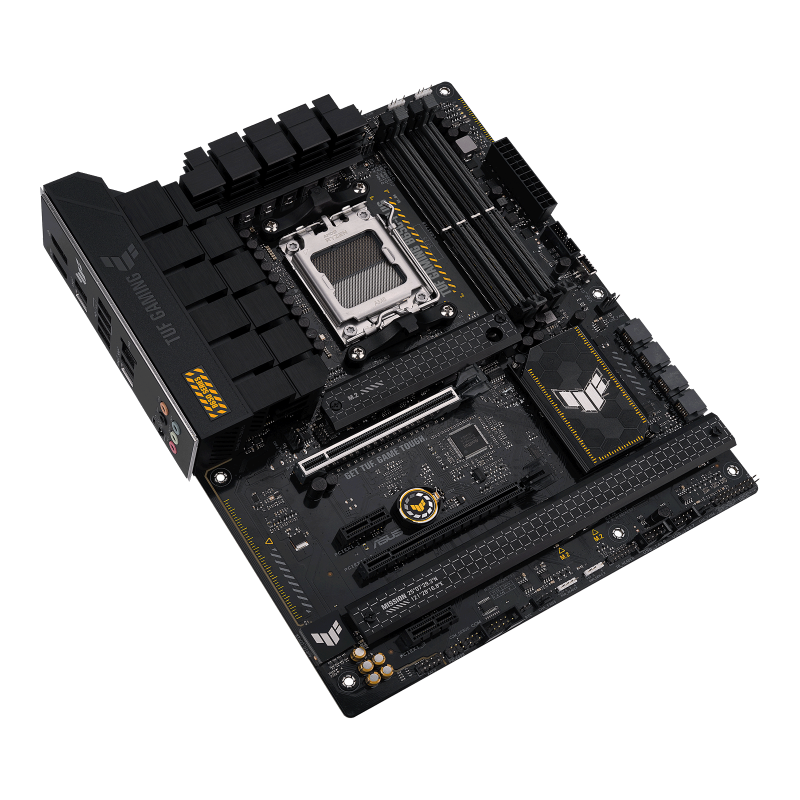

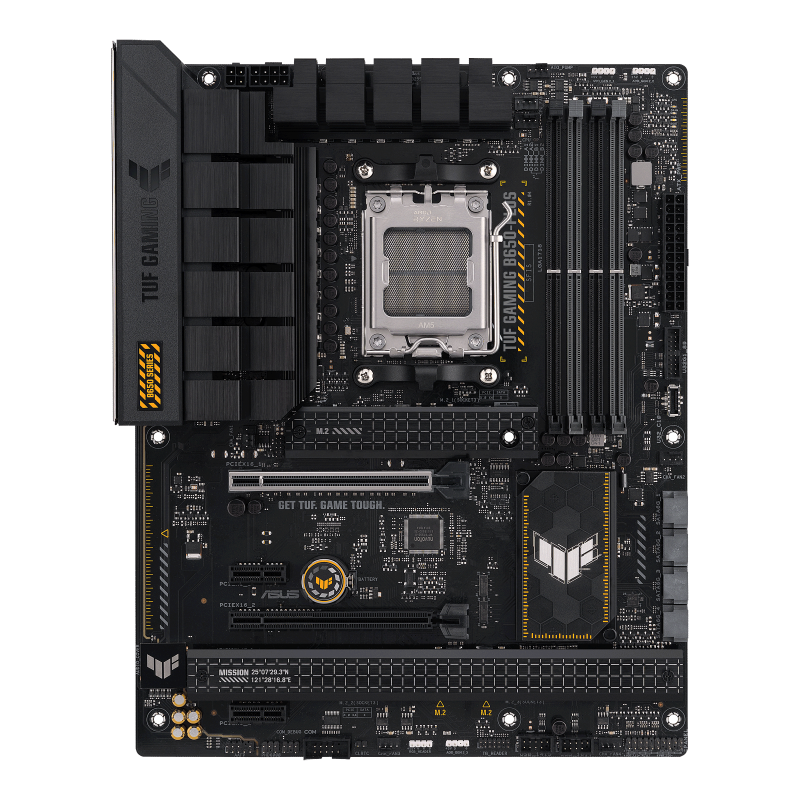

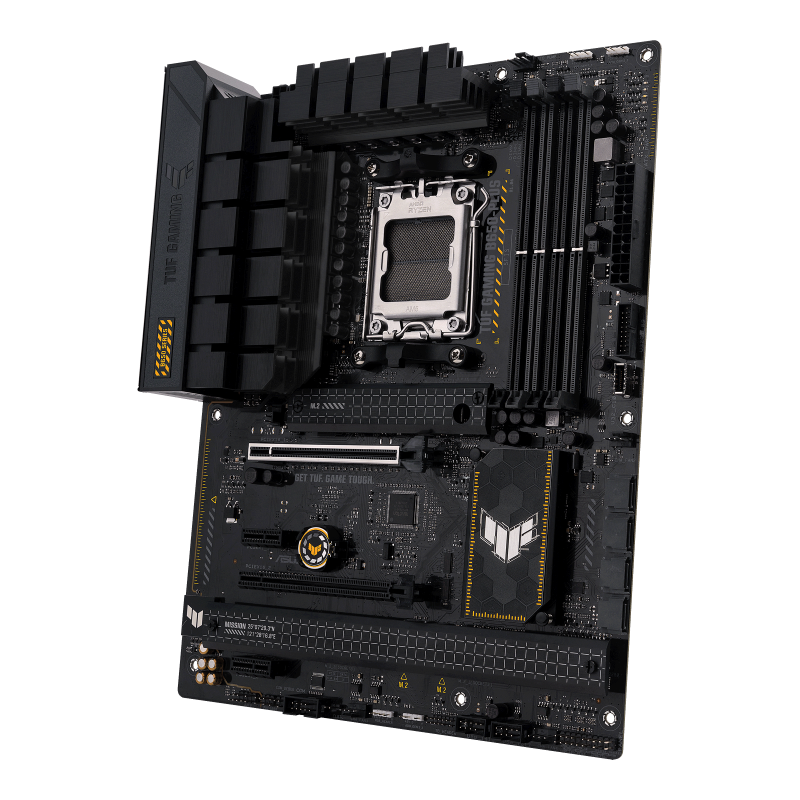

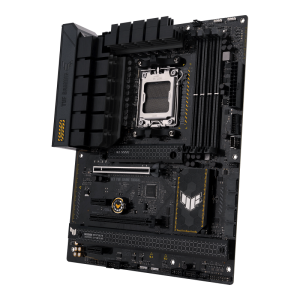

ASUS TUF GAMING B650-PLUS
Марка:
ASUS
- Memory type:4 x DIMM, Max. 128GB, DDR5; 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD EXTended Profiles for Overclocking (EXPO™); OptiMem II
- Graphics:1 x DisplayPort*; 1 x HDMI® port**
- Audio:Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Power pre-regulator reduces power input noi...
- LAN:1 x Realtek 2.5Gb Ethernet; TUF LANGuard
- Expansion Slots:AMD Ryzen™ 7000 Series Desktop Processors*; 1 x PCIe 4.0/3.0 x16 slot(s); AMD B650 Chipset; 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode); 2 x PCIe 4.0/3.0 x1 slots

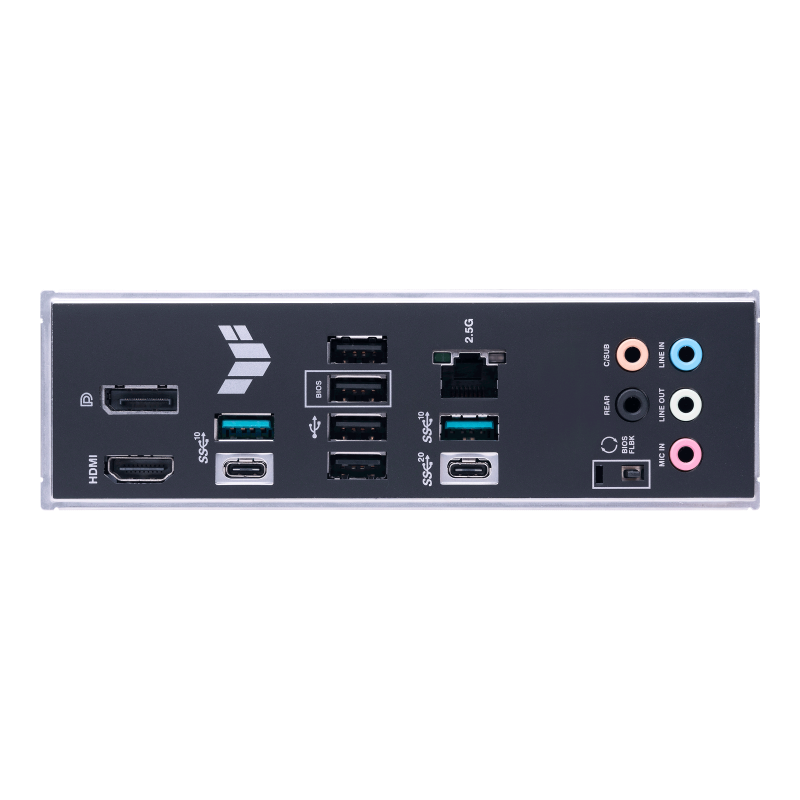

- I/O:1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®); 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®); 4 x USB 2.0 port(s) (4 x Type-A); 1 x DisplayPort; 1 x HDMI® port; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x BIOS FlashBack™ button
- Form Factor:ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- CPU's supported:AMD Socket AM5 for AMD Ryzen™ 7000 Series
- Chipset:AMD B650
- Storage:Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen™ 7000 Series Desktop Processors; M.2_1 slot (Key M), type; 2242/2260/2280(supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); AMD B650 C...
- Connectors:1 x 4-pin CPU Fan header(s); 1 x 4-pin CPU OPT Fan header(s); 1 x 4-pin AIO Pump header(s); 4 x 4-pin Chassis Fan header(s); 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; 3 x M.2 slots (Key M); 4 x SAT...
- BIOS:256 Mb Flash ROM, UEFI AMI BIOS
