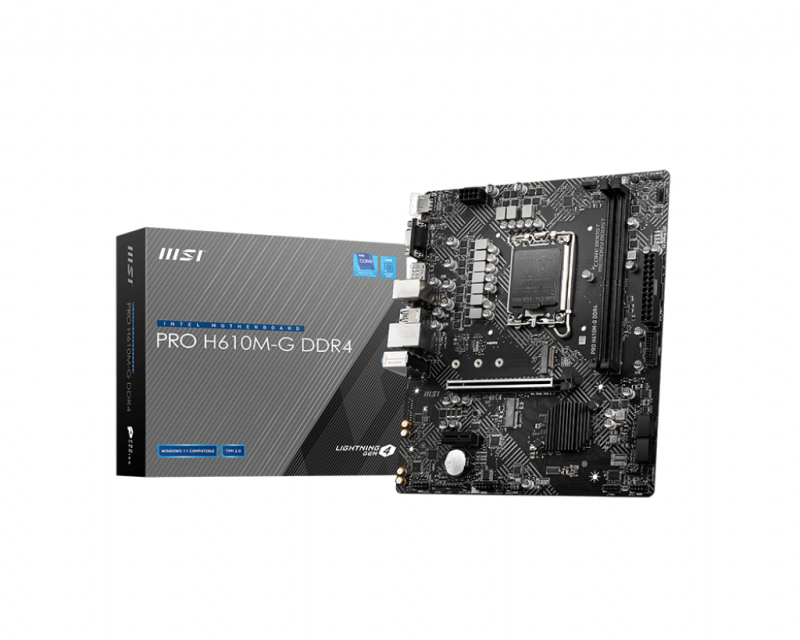

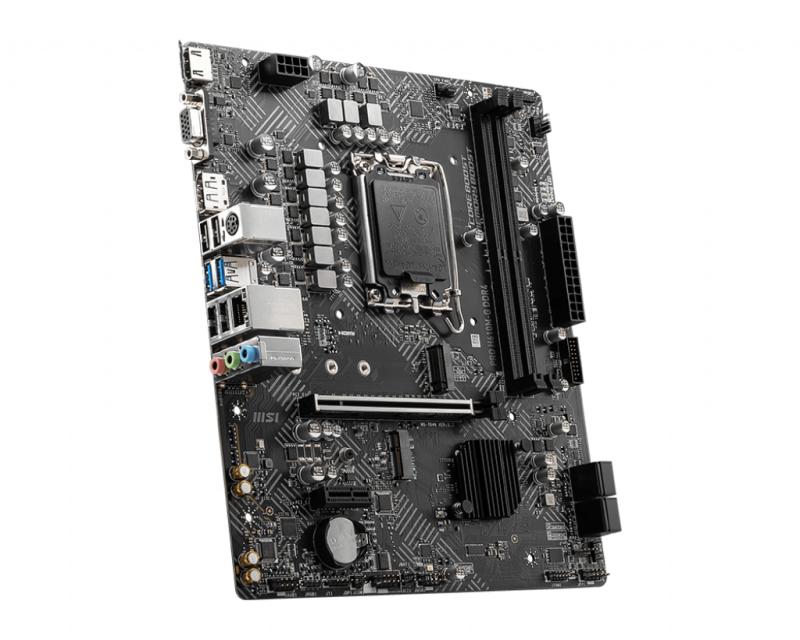

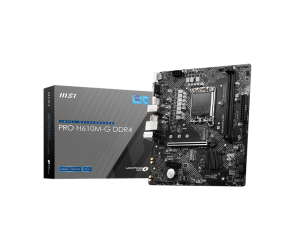

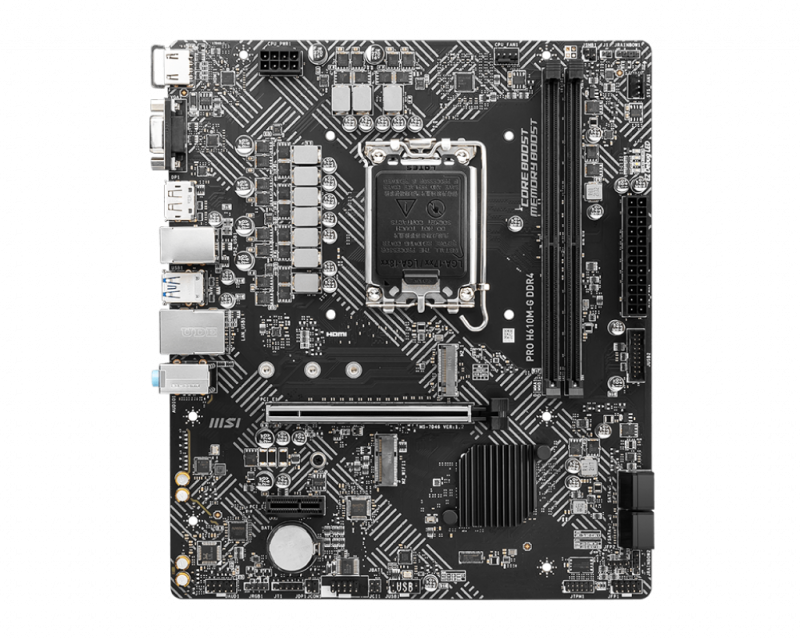

MSI PRO H610M-G DDR4
Марка:
MSI
- OS:Support for Windows® 11 64-bit
- Memory type:2x DDR4 memory slots, support up to 64GB1; Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR); Supports Dual-Channel mode; Supports non-ECC, un-buffered memory
- Graphics:1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 2; 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz1; x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1 2
- Audio:Realtek® ALC892/ ALC897 Codec; 7.1-Channel High Definition Audio
- LAN:1x Intel® I219V 1Gbps LAN controller
- Expansion Slots:1x PCIe x16 slot (From CPU); Supports up to PCIe 4.0 x16; 1x PCIe x1 slot; Supports PCIe 3.0 x1; 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)

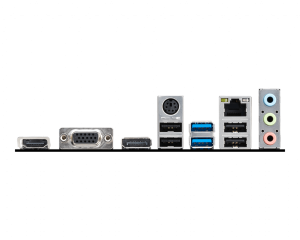

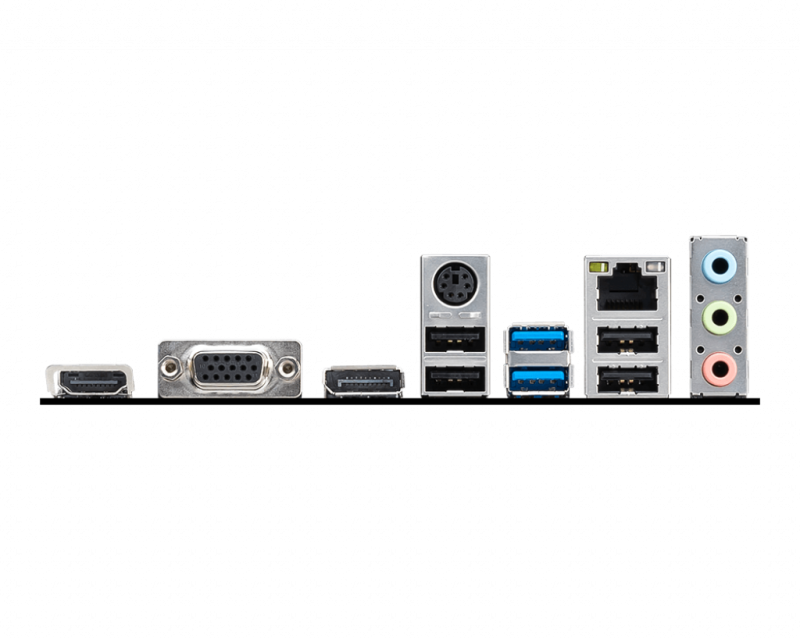

- I/O:HDMI; VGA; DisplayPort; Keyboard/Mouse; USB 3.2 Gen 1 5Gbps Type-A; LAN port; Audio connector; USB 2.0
- Form Factor:mATX Form Factor; 9.29 x 7.95 in. (23.6 cm x 20.2 cm)
- CPU's supported:Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1; Processor socket LGA1700
- Chipset:Intel® H610 Chipset
- Storage:4x SATA 6Gb/s ports1;1x M.2 slot (Key M, from chipset)1; Supports up to PCIe 3.0 x4; Supports up to SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; Supports Intel® Smart Response Technology for Intel Core™ processors
- Connectors:1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin CPU fan connector; 1x 4-pin system fan connector; 1x Clear CMOS jumper; 1x 4-pin RGB LED connector; 2x 3-pin RAINBOW LED connectors; 4x EZ Debug LED; 1x Front panel audio co...
