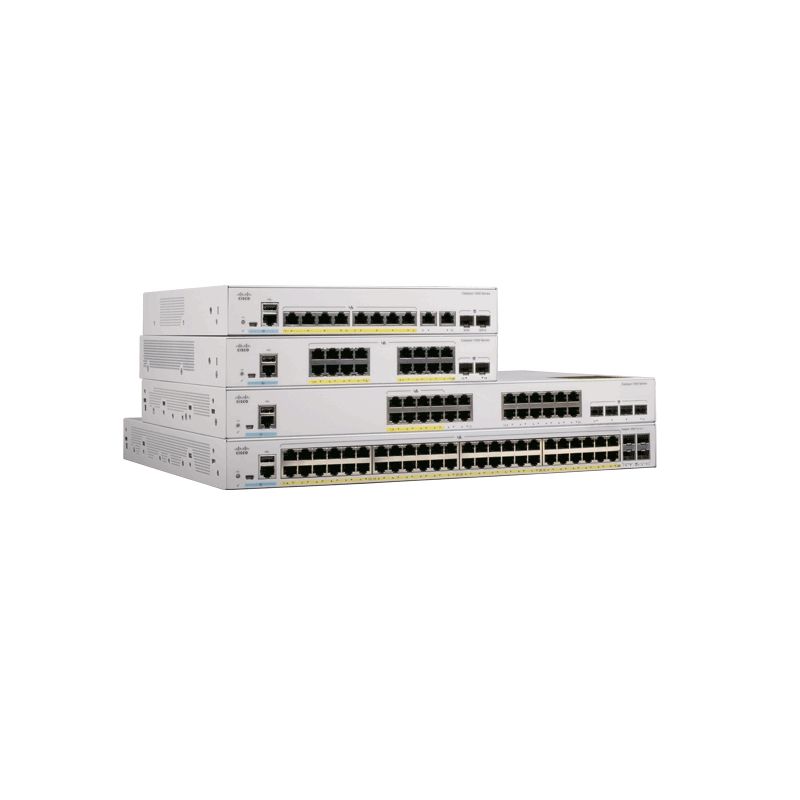

Комутатор Cisco Catalyst 1000 24port GE, Full POE, 4x1G SFP
Марка:
CISCO
4,99056 лв.
-
5.500 кг
- Други:USB mini-B port, USB-A port for storage and Bluetooth console
- Размери (Ш, Д, В), mm:444.5 x 345.2 x 43.9
- Суич, тип:Fixed Port
- Общ брой портове:24
- Основни портове, тип:10/100/1000Base-T
- Power Over Ethernet (PoE):Support both IEEE 802.3af PoE and IEEE 802.3at PoE+; 30W for any 12 ports or 15W for 24 ports; PoE power budget: 370W
- Uplink портове:4x SFP
- Свободни (10GB) слотове:-
- Stackable:-
- Fans_TEXT:yes
- Fans:Да
- Routing:Static
- Памет (Flash, RAM):512MB DRAM, 256 MB Flash memory
- Капацитет за маршрутизиране/превключване, Gbps:10/20 Gbps (Forwarding/Switching)
- Пропускателна способност, Mpps:14.88 Mpps
- MAC адреси:15 360
- VLAN (брой, стандарти):Maximum active: 256; IDs available: 4094
- QoS:Up to 8 egress queues and 2 thresholds per port, Ingress policing, QoS through DSCP mapping and filtering, QoS through traffic classification, Trust boundary, AutoQoS, Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD), 802.1p CoS
- L2 мрежови стандарти:802.1D STP, 802.1p CoS Prioritization, 802.1Q VLAN, 802.1s, 802.1w, 802.1X, 802.1ab LLDP, BT v4.0, 802.3ad, 802.3af, 802.3ah (100BASE-X single/multimode fiber only), 802.3x full duplex, 802.3, 802.3u, 802.3ab, 802.3z, RMON, SNMP, 802.3az, 802.3ae
- L3 мрежови стандарти:-
- IPv6 functionality:IPv6 routing, Access Control Lists (ACLS)
- Опция за монтаж:Rackmount
- Захранване:Single fixed power supply. Models have external power supply. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
- Управление:Web UI via Cisco Configuration Professional; CLI using a Telnet or Secure Shell (SSH) client over Bluetooth. The GUI can be accessed over Bluetooth with a browser. Single IP Management. Network management
- Сигурност:802.1X, Authentication, ACLS, Port-based ACLs, SSH, Kerberos, and SNMP v3, SPAN, TACACS+ and RADIUS authentication, MAC address notification, MAC Authentication Bypass (MAB), BPDU Guard, IP Source Guard, SSH v2, STRG, IGMP
