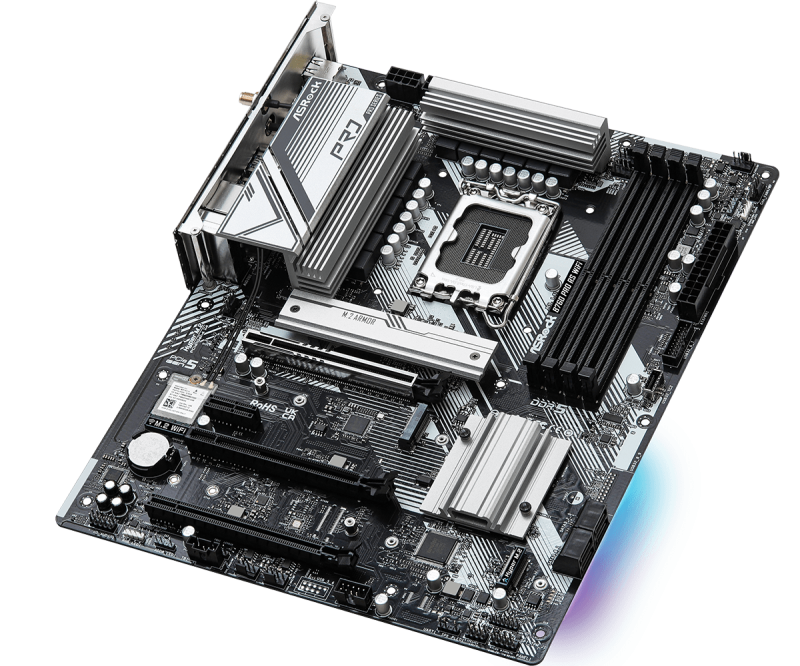

ASROCK B760 PRO RS WIFI /D5
Марка:
ASROCK
- OS:- Microsoft® Windows® 10 64-bit / 11 64-bit
- Other:- 802.11ax Wi-Fi 6E Module; - Supports IEEE 802.11a/b/g/n/ac/ax; - Supports Dual-Band 2x2 with extended 6GHz band support*; - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; - Supports Bluetooth 5.3 + High speed class II; - Suppo...
- Memory type:- Dual Channel DDR5 Memory Technology; - 4 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*; - Max. capacity of system memory: 192GB; - Supports Intel® Extreme Memory Profile (XMP) 3.0
- Graphics:- Intel® Xe Graphics Architecture (Gen 12); - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz; - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3...
- Audio:- 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio
- LAN:- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and St...
- Expansion Slots:CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*; - 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode*; - 1 x PCIe 3.0 x1 Slot (PCIE2)*; - 1 x M.2 Socket (Key E), supports type 2230 WiF...
- I/O:- 2 x Antenna Ports; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s); - 4 x USB 3.2 Gen1 Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Spea...
- Form Factor:- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- CPU's supported:- Supports 13th Gen & 12th Gen and next gen Intel® Core™ Processors (LGA1700); - Supports Intel® Hybrid Technology; - Supports Intel® Turbo Boost Max 3.0 Technology; - Supports Intel® Thermal Velocity Boost (TVB); - Supports Intel® Adaptive Boost Techn...
- Chipset:- Intel® B760
- Storage:CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280...
- Connectors:- 1 x eDP Signal Connector; - 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 2 x RGB LED Headers*; - 2 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****;...
- BIOS:- 128Mb AMI UEFI Legal BIOS with GUI support
