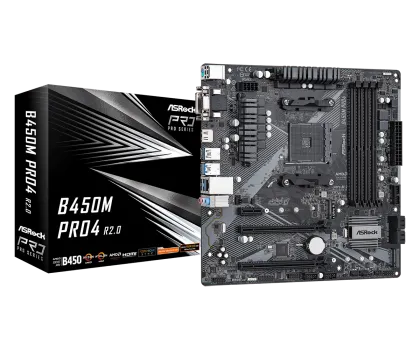

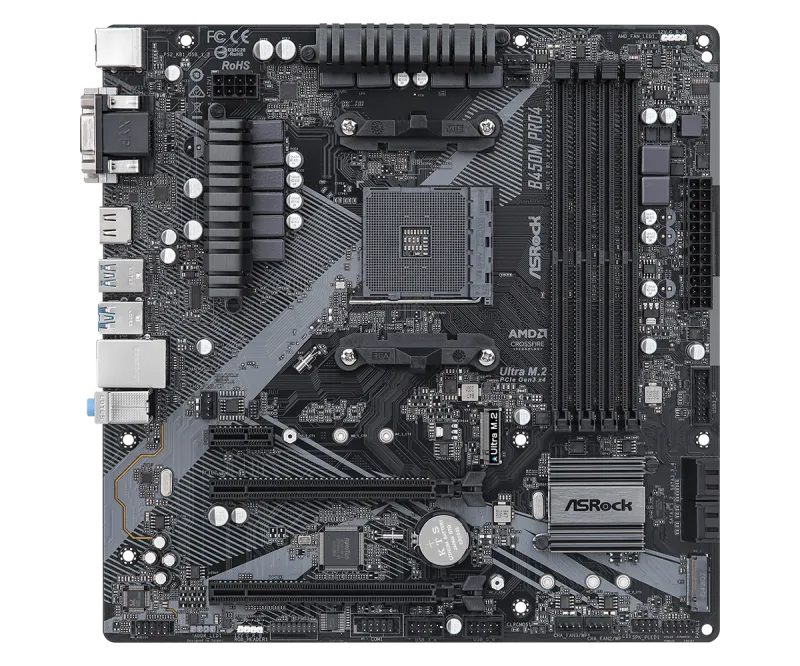

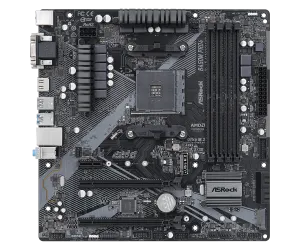

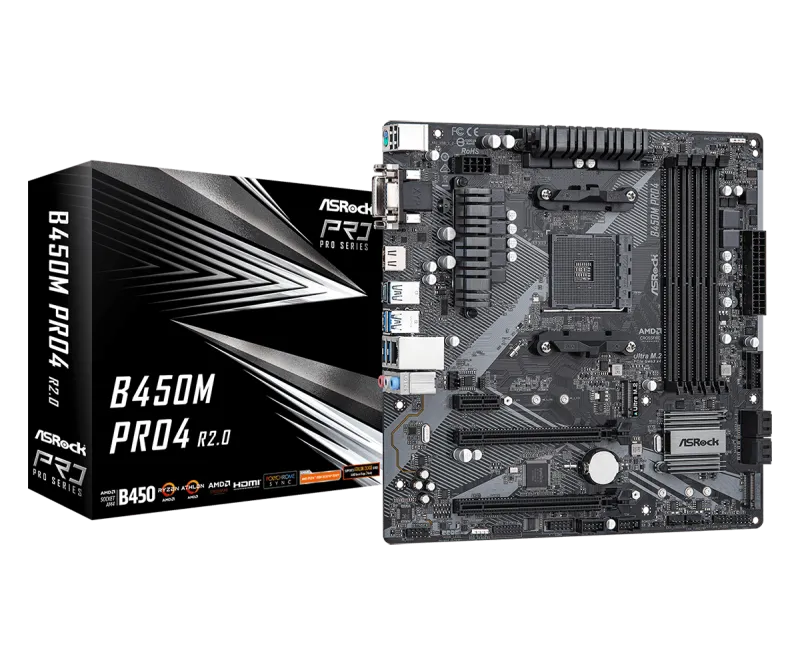

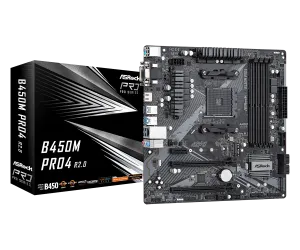

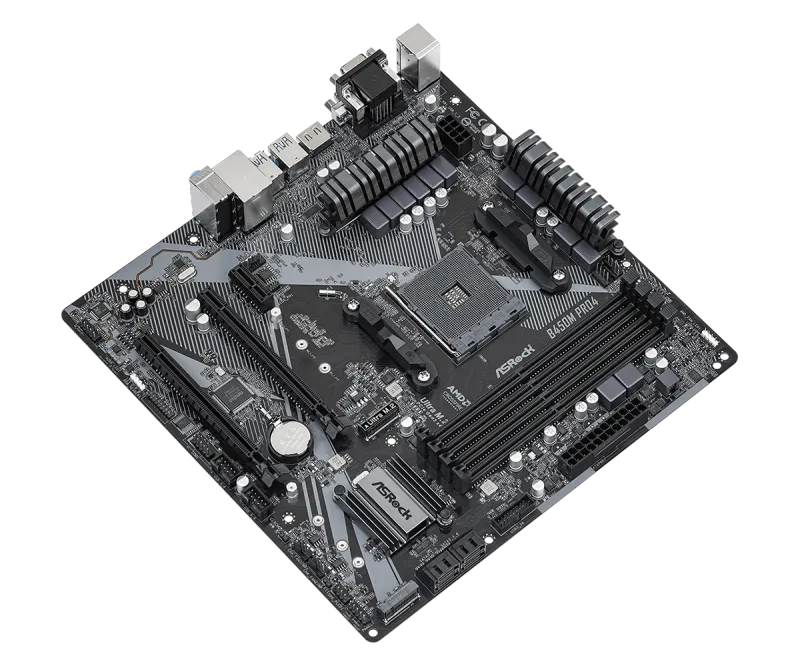

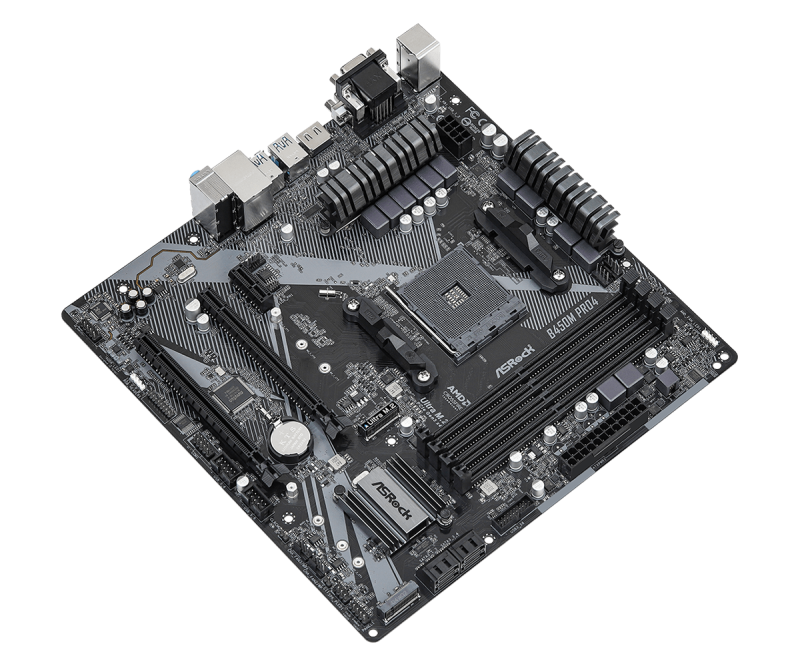

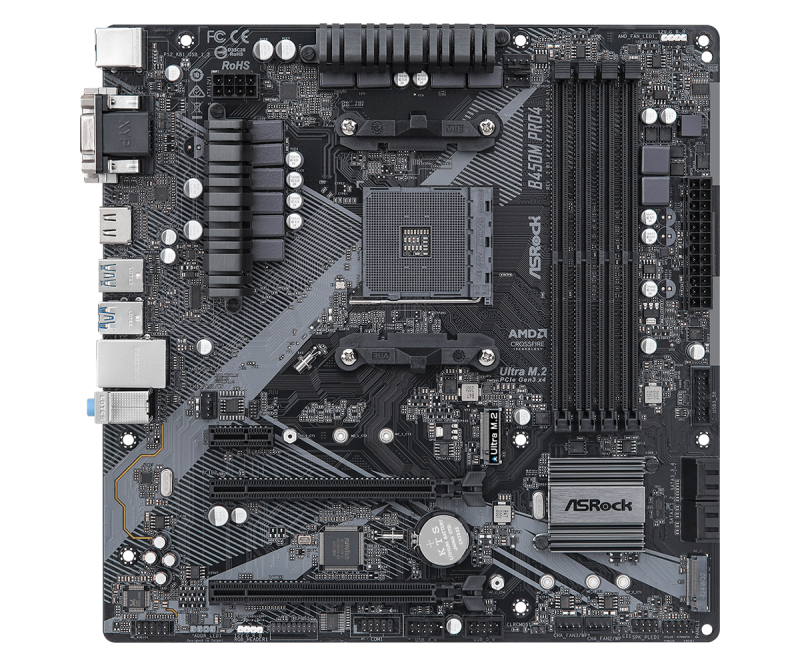

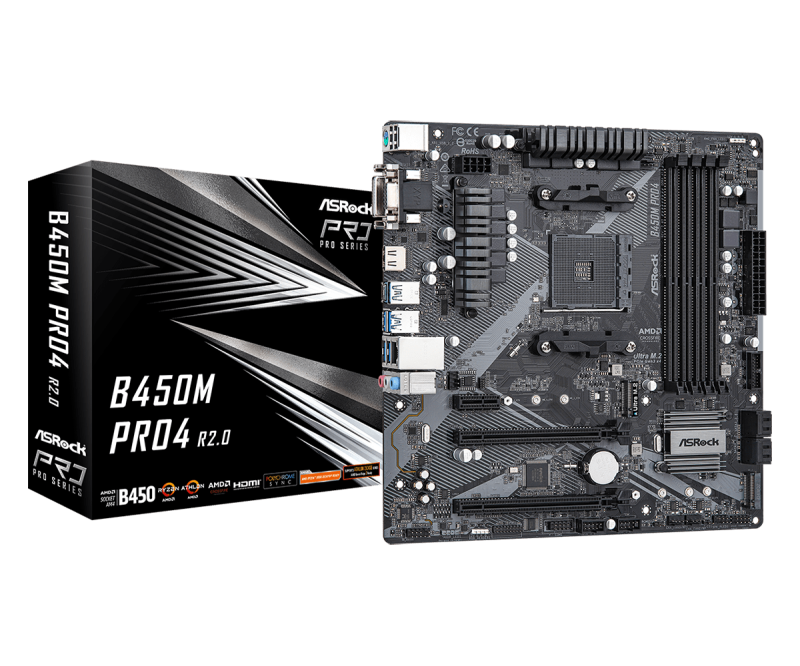

ASROCK B450M PRO4 R2.0 / AM4
Марка:
ASROCK
- OS:- Microsoft® Windows® 10 64-bit / 11 64-bit*
- Manufacturer:ASRock Inc.
- Memory type:Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133...
- Graphics:- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Three graphics output options: D-Sub, DVI-D and HDMI; - Supports Triple Monitor...
- Audio:- 7.1 CH HD Audio with Content Protection (Realtek ALC892/897 Audio Codec); - Supports Surge Protection
- LAN:- PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111H; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE
- Expansion Slots:AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge); - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*; - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode); AMD Ryzen series CPUs (Picasso, Raven Ridge); - 1 x PCI Expr...

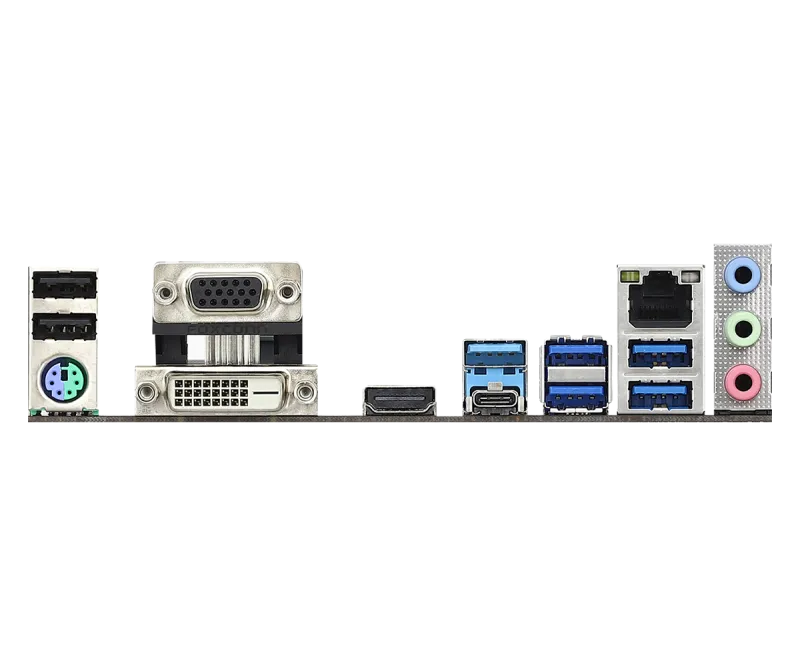

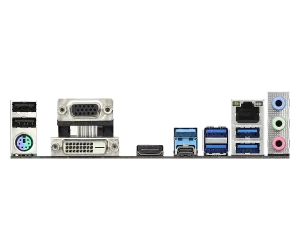

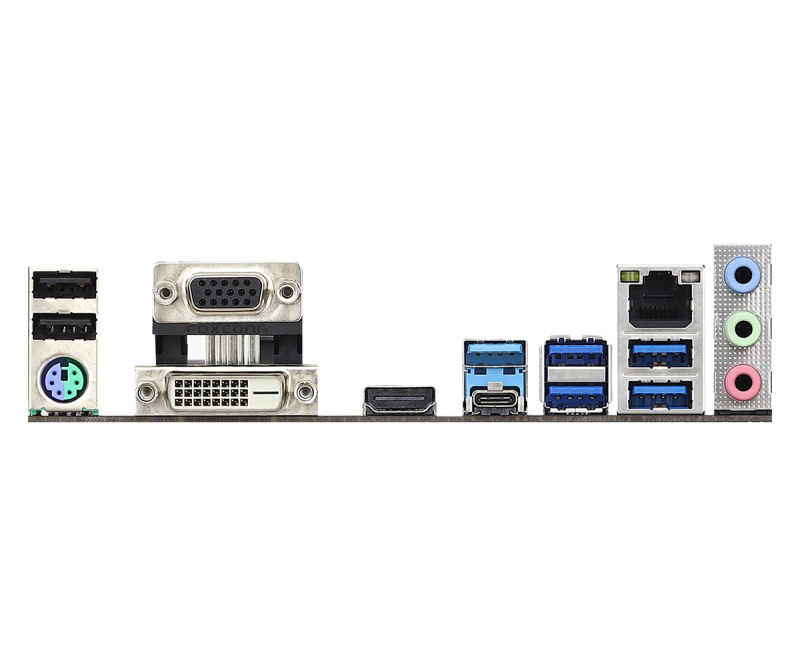

- I/O:- 1 x PS/2 Mouse/Keyboard Port; - 1 x D-Sub Port; - 1 x DVI-D Port; - 1 x HDMI Port; - 2 x USB 2.0 Ports (Supports ESD Protection); - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports E...
- Form Factor:- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm; - Solid Capacitor design
- CPU's supported:Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
- Chipset:AMD Promontory B450
- Storage:- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*; - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoi...
- Connectors:- 1 x COM Port Header; - 1 x TPM Header; - 1 x Chassis Intrusion Header; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header*; - 1 x Addressable LED Header**; - 1 x AMD Fan LED Header***; - 1 x CPU Fan Connector (4-pin)****; - 1 x CPU/Water Pump F...
- BIOS:- 128Mb AMI UEFI Legal BIOS with multilingual GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - DRAM Voltage multi-adjustment
