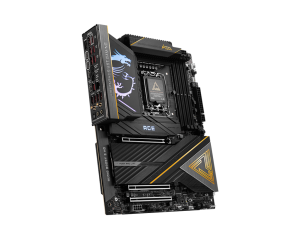

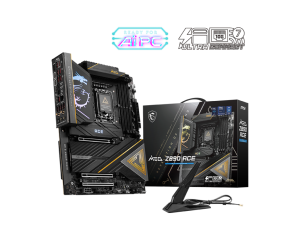

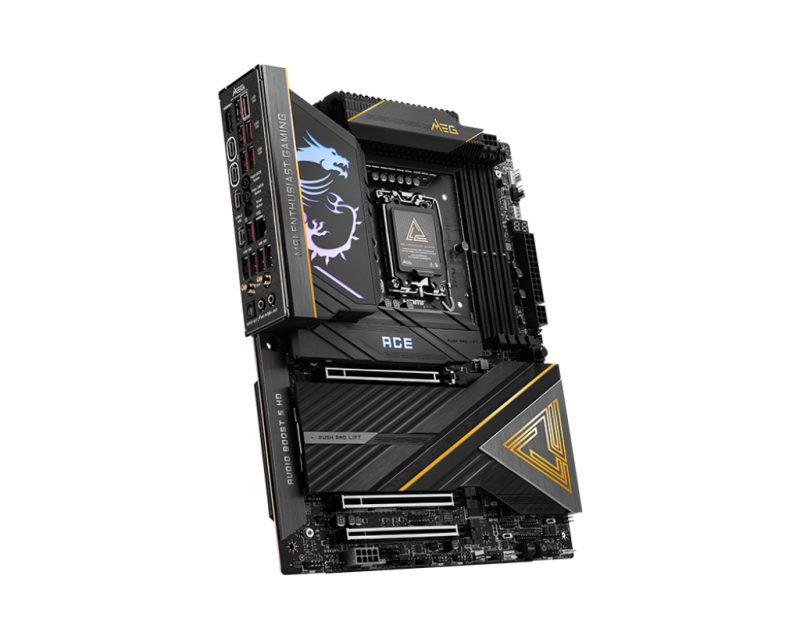

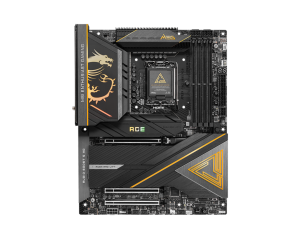

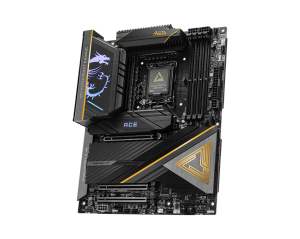

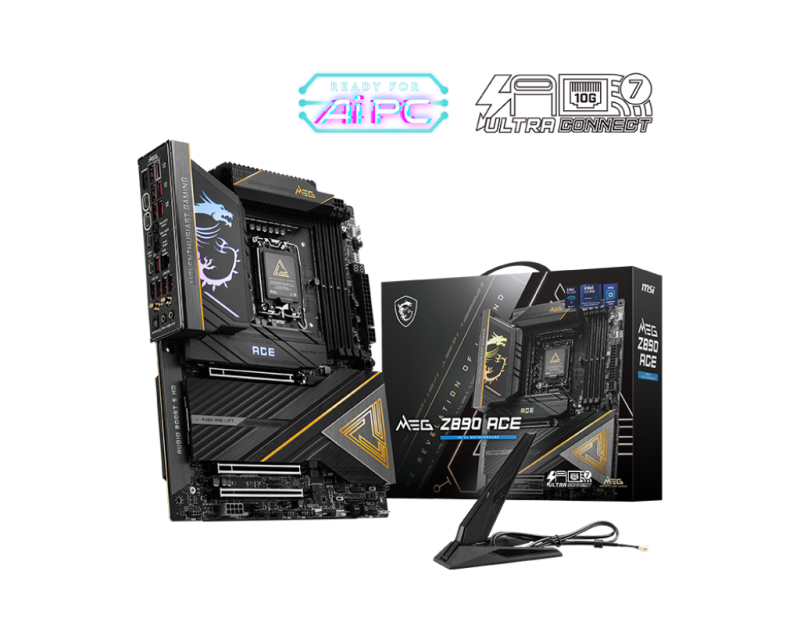

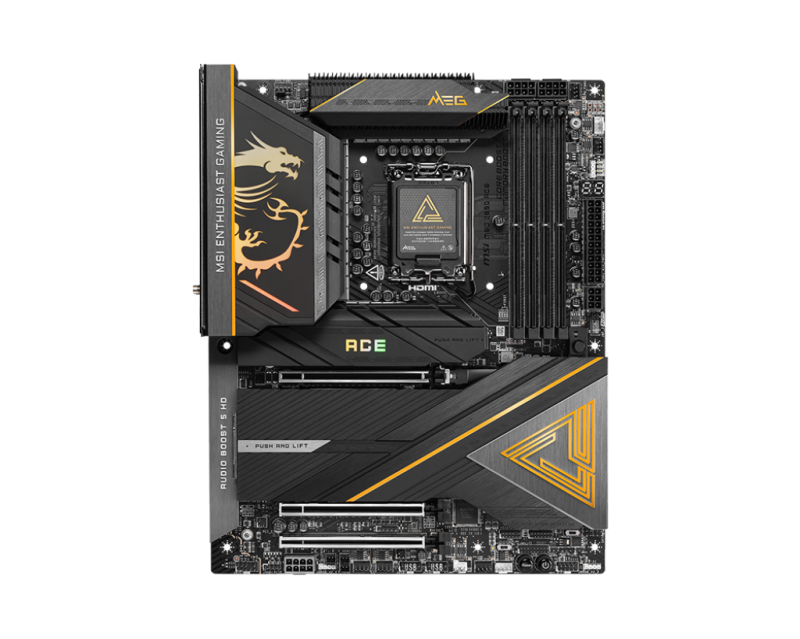

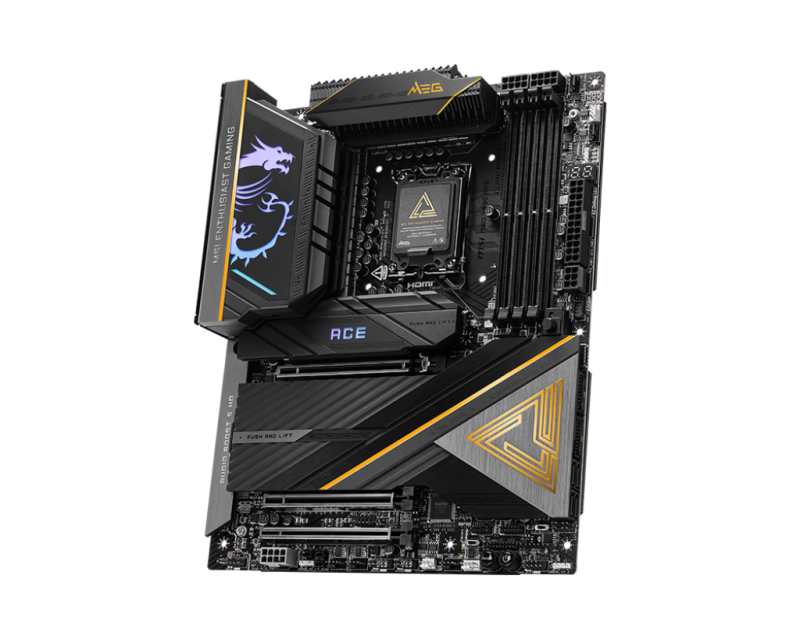

MSI MEG Z890 ACE /LGA1851

Код:

MEG Z890 ACE / 911-7E22-001

Марка: MSI

1,398⁹¹ лв.

0.500 кг

Сравни

Оцени продукта

Manufacturer:
MSI
Wireless:
Intel® Killer™ BE1750x Wi-Fi 7;The Wireless module is pre-installed in the M.2 (Key-E) slot;Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps;Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Memory type:
4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s;Max. overclocking frequency;• 1DPC 1R Max speed up to 9200+ MT/s;• 1DPC 2R Max speed up to 7200+ MT/s;• 2DPC 1R Max speed up to 4800+ MT/s;• 2D...
Graphics:
1x HDMI™;Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz;2x Type-C DisplayPort;Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
Audio:
Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA;7.1-Channel USB High-Performance Audio;Supports S/PDIF output;Supports up to 32-Bit/384 kHz playback on front panel
LAN:
1x Marvell® AQC113CS 10Gbps LAN
Expansion Slots:
3x PCI-E x16 slot;PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU);PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);• PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4;• PCI_E2 support manual...

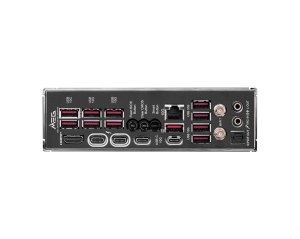

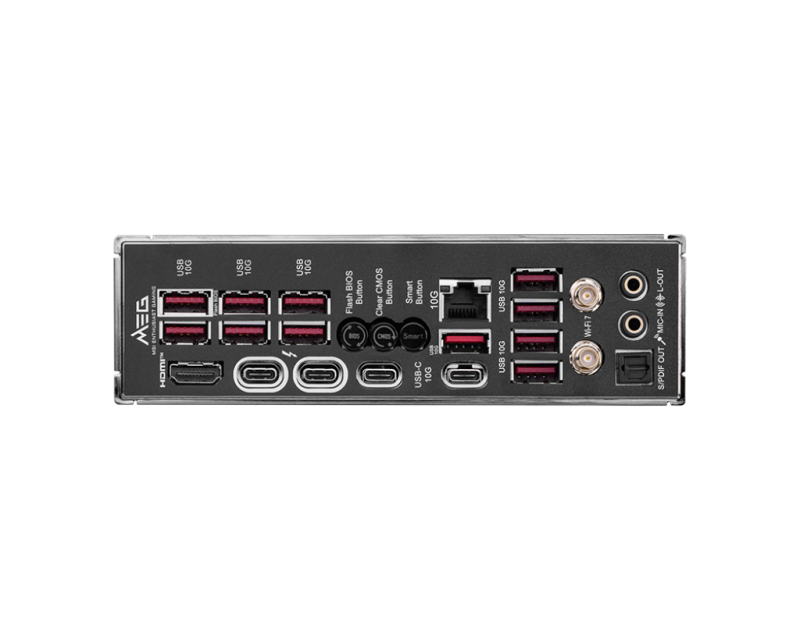

I/O:
2x Thunderbolt4 ports (Rear);Support up to 40Gbps transfer rate with Thunderbolt devices;Support up to 20Gbps transfer rate with USB4 devices;Support up to 10Gbps transfer rate with USB 3.2 devices;Support up to 5V/3A,15W power charging;Each port can d...
Form Factor:
ATX 243.84mmx304.8mm
CPU's supported:
Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Chipset:
INTEL Z890
Storage:
5x M.2;M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;-M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;-M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices...
Connectors:
1x Thunderbolt5 card connector(JTBT5, support RTD3);1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin);1x Front Type-C Quick Charge Connector(PD_PWR1);1x CPU Fan;2x Combo Fan (Pump_Sys Fan);5x System Fan;1x EZ Conn...
Features:
4x EZ Debug LED;1x EZ Digit Debug LED;1x EZ LED Control switch
