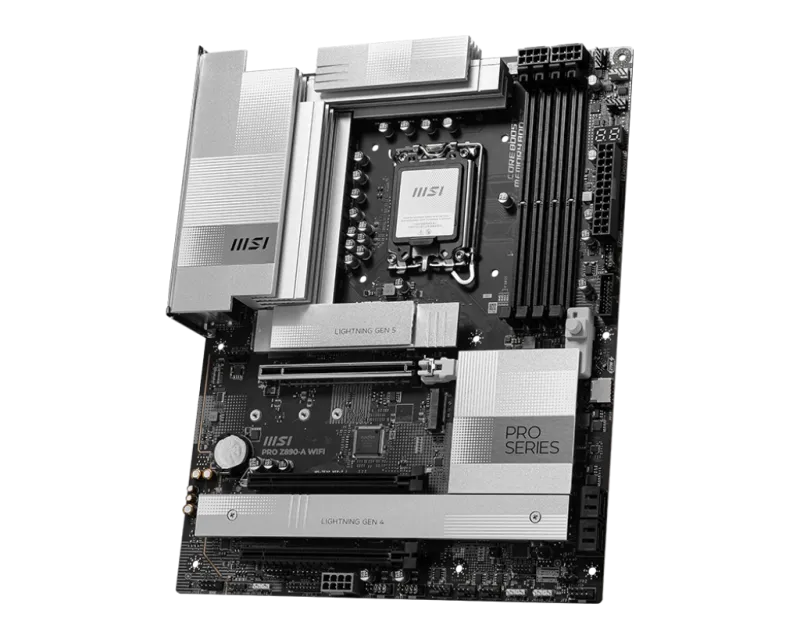

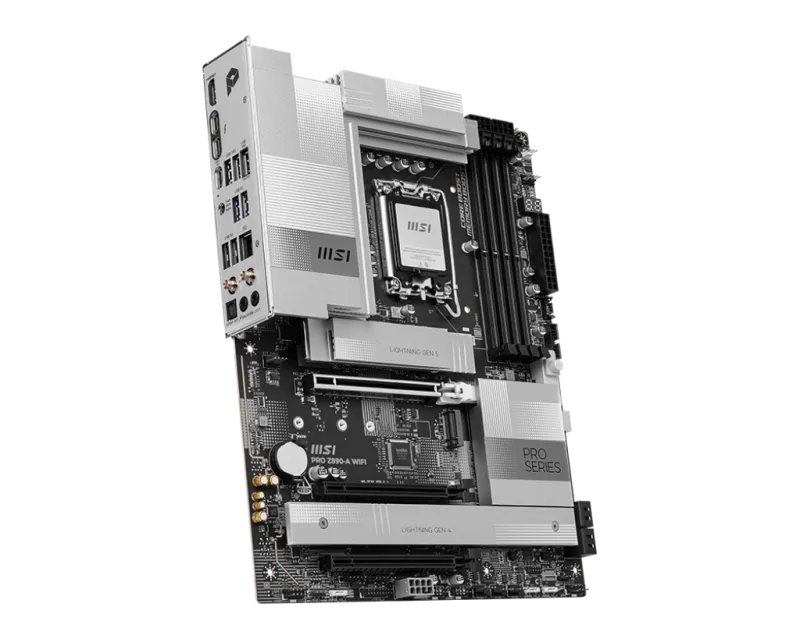

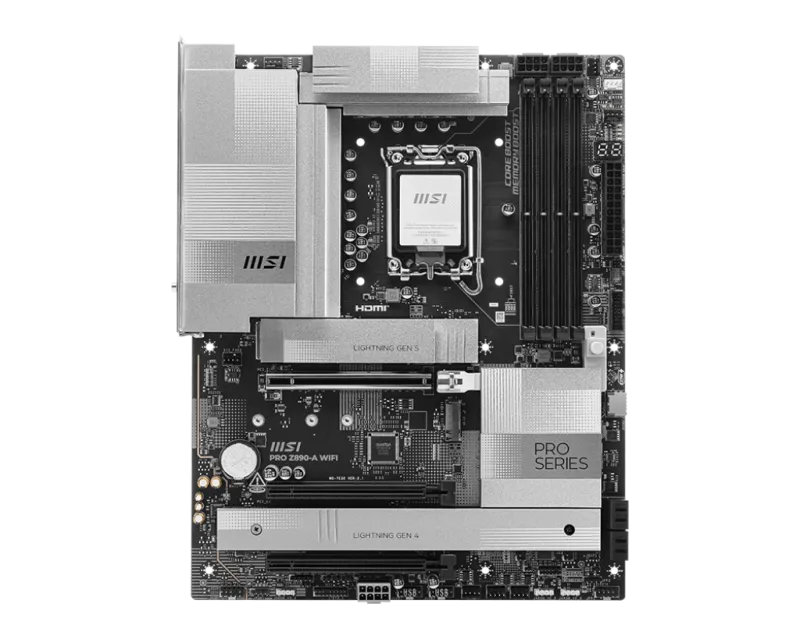

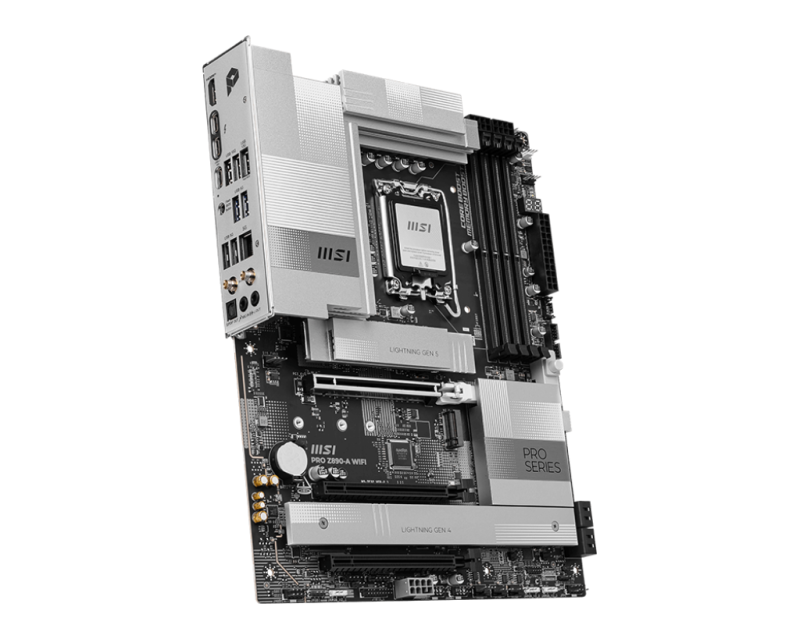

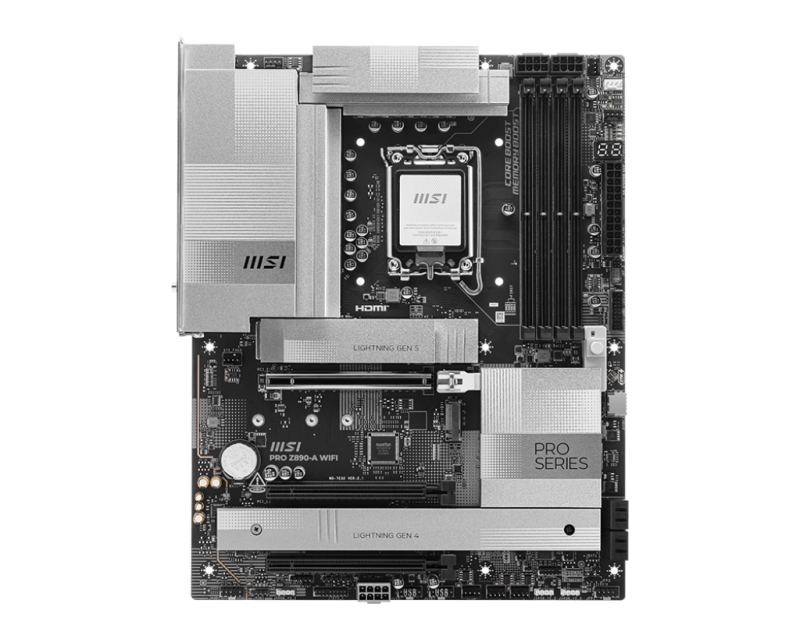

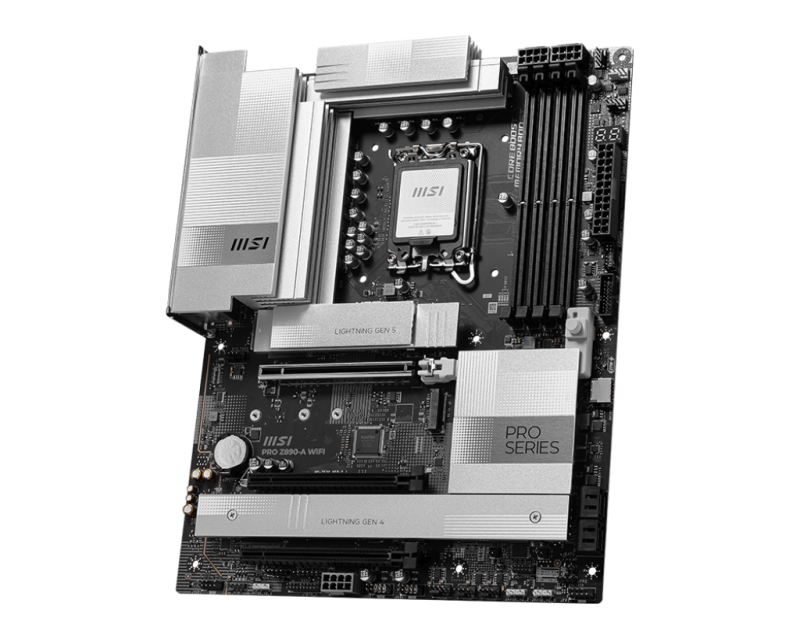

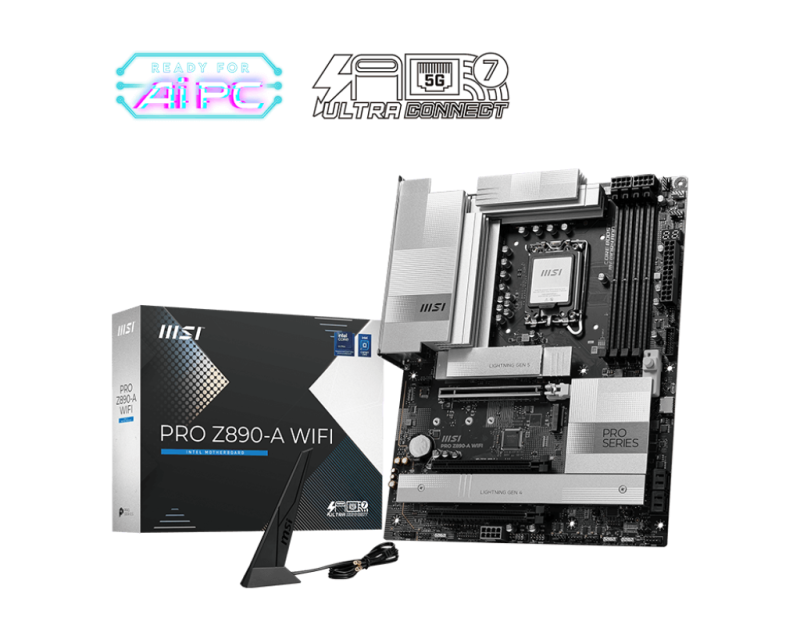

MSI PRO Z890-A WIFI /LGA1851
Марка:
MSI
- OS:Support for Windows® 11 64-bit
- Bluetooth:5.4
- Manufacturer:MSI
- Wireless:Intel® Wi-Fi 7;The Wireless module is pre-installed in the M.2 (Key-E) slot;Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps;Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
- Memory type:4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s;Max. overclocking frequency:;• 1DPC 1R Max speed up to 9200+ MT/s;• 1DPC 2R Max speed up to 7200+ MT/s;• 2DPC 1R Max speed up to 4800+ MT/s;• 2...
- Graphics:1x HDMI™;Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz;2x Type-C DisplayPort;Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
- Audio:Realtek® ALC1220P;7.1-Channel High Definition Audio;Supports S/PDIF output
- LAN:Realtek® 8126 5Gbps LAN
- Expansion Slots:3x PCI-E x16 slot;PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset);PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

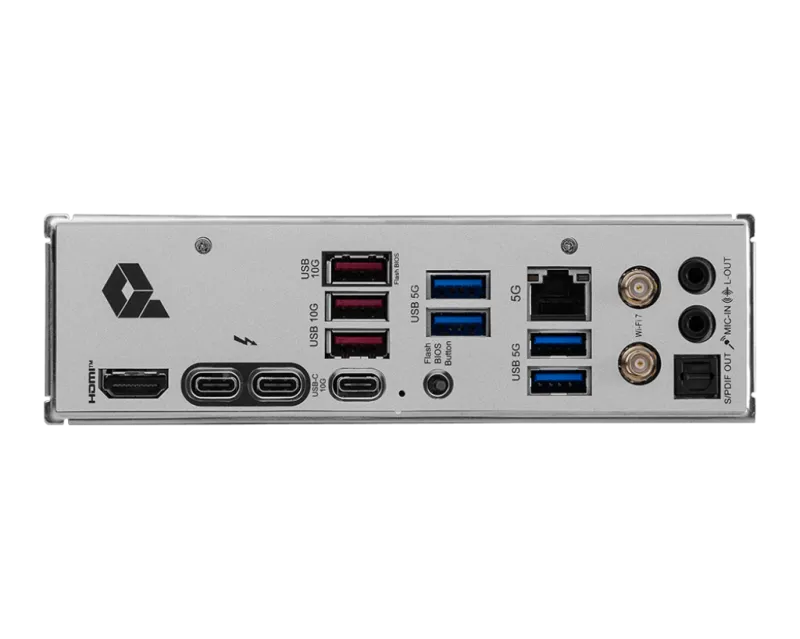

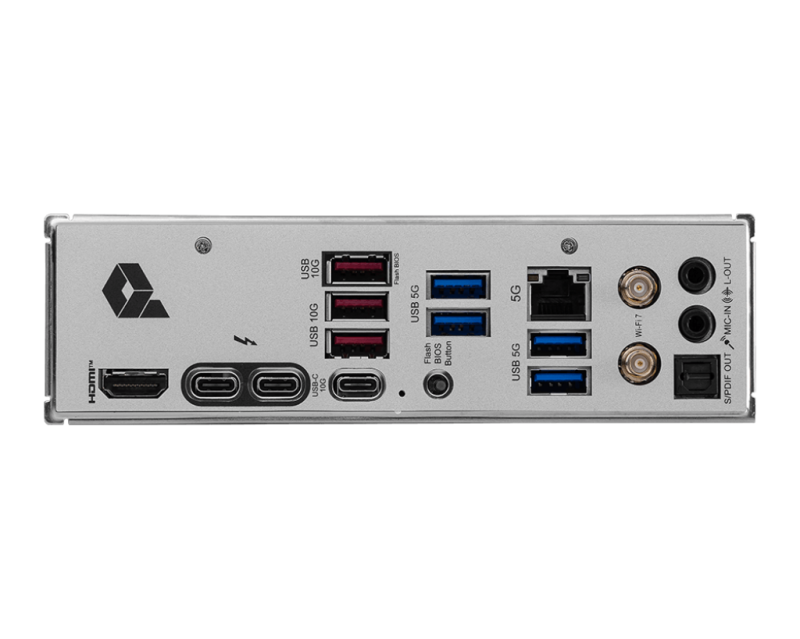

- I/O:2x Thunderbolt4 ports (Rear);Support up to 40Gbps transfer rate with Thunderbolt devices;Support up to 20Gbps transfer rate with USB4 devices;Support up to 10Gbps transfer rate with USB 3.2 devices;Support up to 5V/3A,15W power charging;Each port can d...
- Form Factor:ATX 243.84mmx304.8mm
- CPU's supported:Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
- Chipset:INTEL Z890
- Storage:4x M.2;-M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;-M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices;-M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/...
- Connectors:1x Thunderbolt5 card connector(JTBT5, support RTD3);1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR);1x Power Connector(PCIE_PWR 8pin);1x CPU Fan;1x Combo Fan (Pump_Sys Fan);6x System Fan;1x EZ Conn-header (JAF_2);2x Front Panel (JFP);1x Chassis...
- Features:4x EZ Debug LED;1x EZ Digit Debug LED
