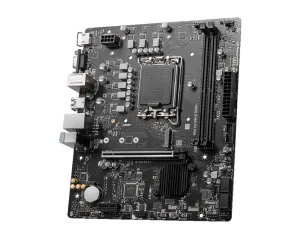

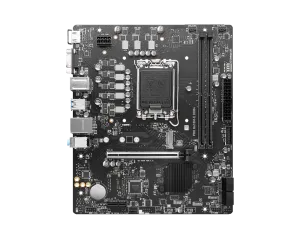

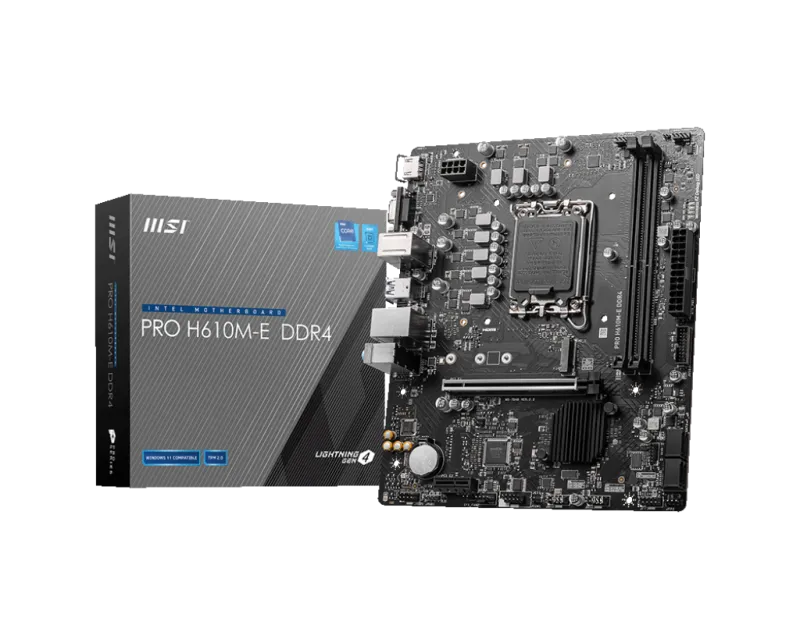

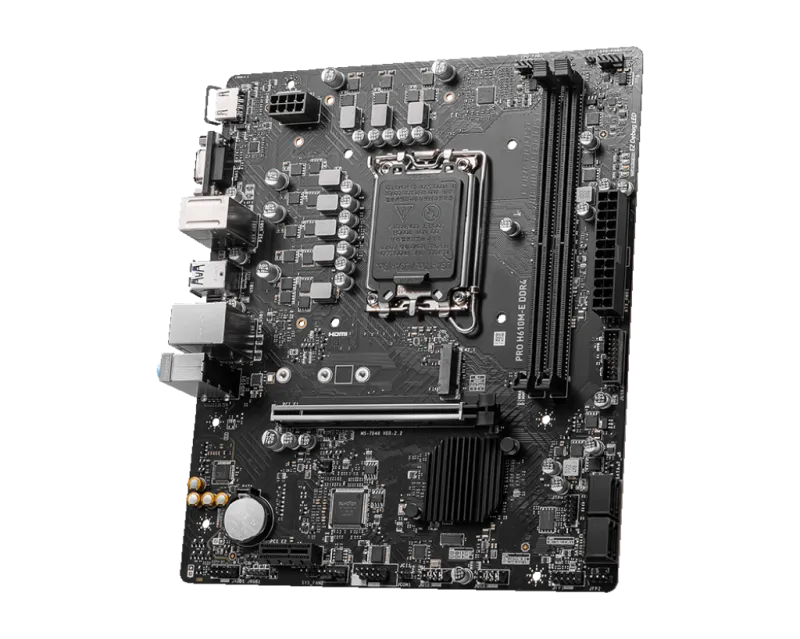

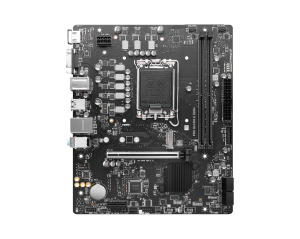

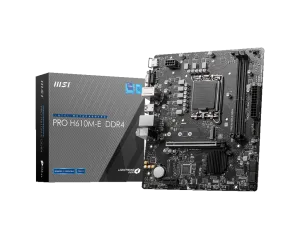

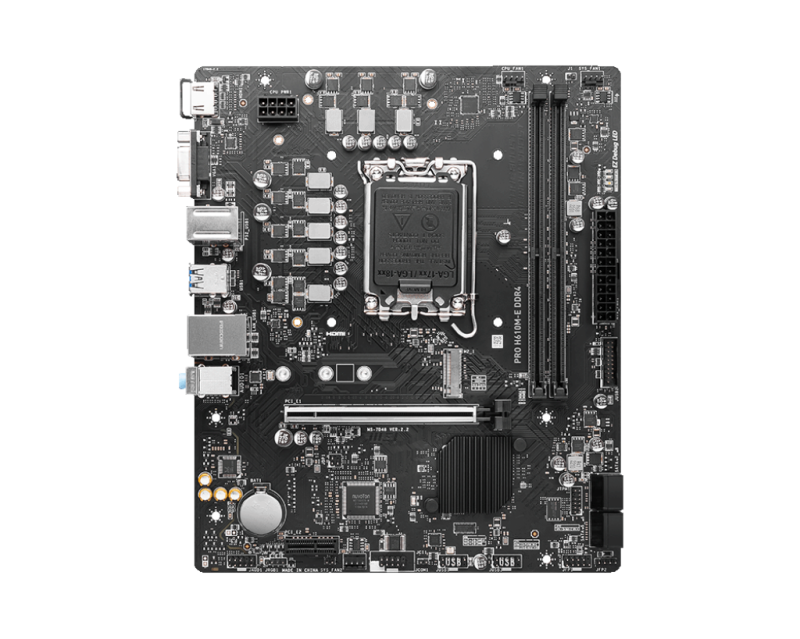

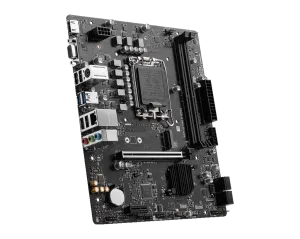

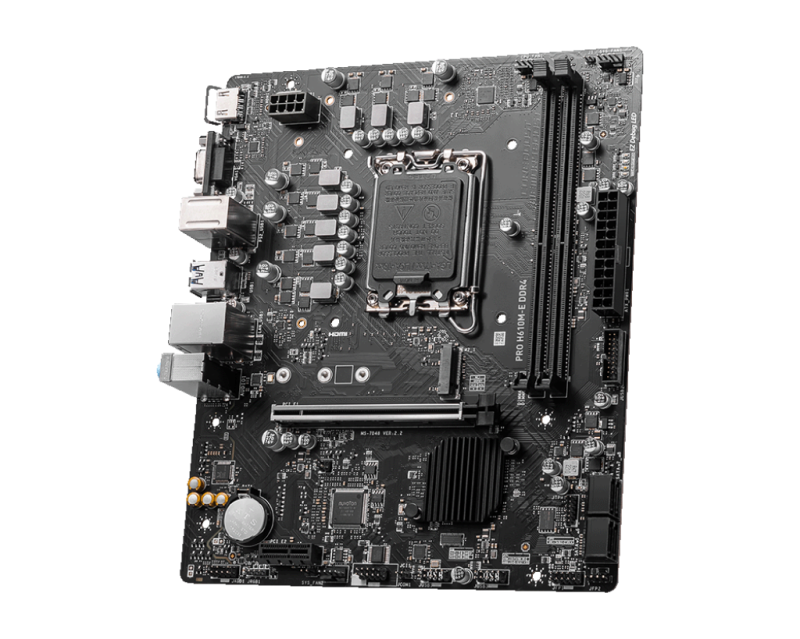

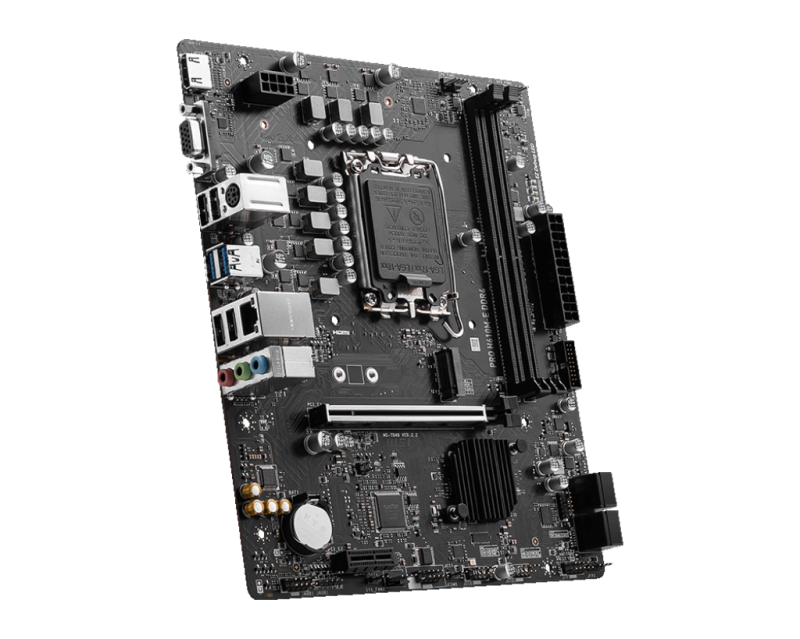

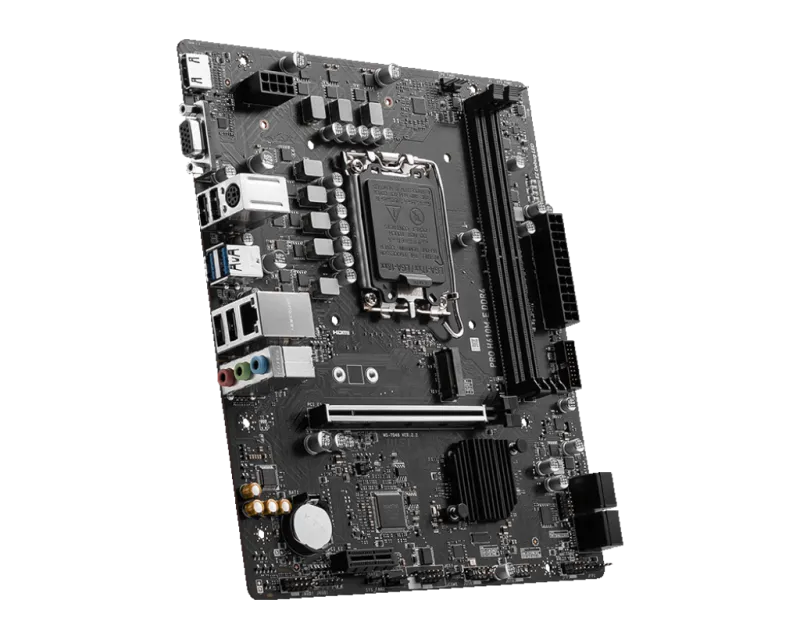

MSI PRO H610M-E DDR4 /LGA1700
Марка:
MSI
- Memory type:2x DDR4 memory slots, support up to 64GB 1; Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR); Supports Dual-Channel mode; Supports non-ECC, un-buffered memory
- Graphics:1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2; 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2
- Audio:Realtek® ALC897 Codec; 7.1-Channel High Definition Audio
- LAN:1x Realtek® RTL8111H 1Gbps LAN controller
- Expansion Slots:1x PCIe x16 slot (From CPU); Supports up to PCIe 4.0 x16; 1x PCIe x1 slot (From H610 chipset); Supports PCIe 3.0 x1

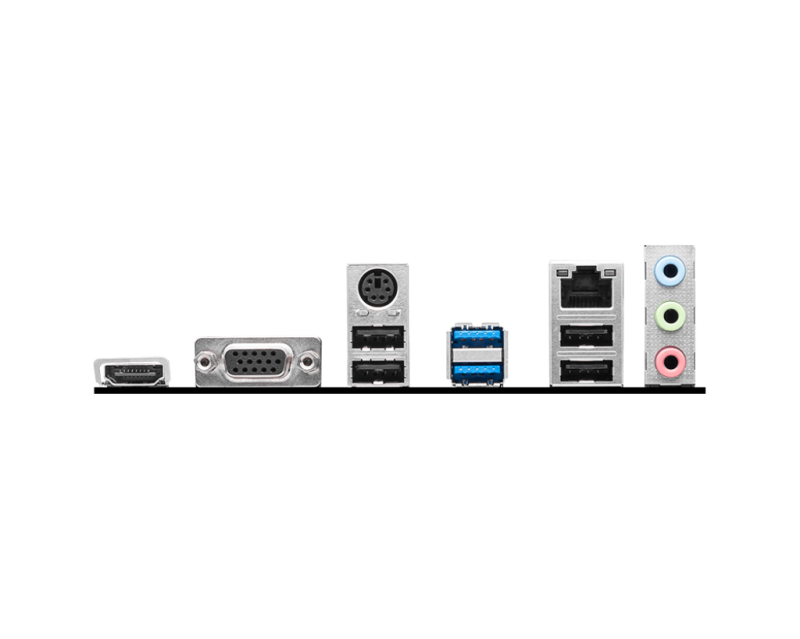

- I/O:HDMI™; VGA; Keyboard / Mouse; USB 3.2 Gen 1 5Gbps Type-A; LAN port; Audio connector; USB 2.0
- Form Factor:M-ATX Form Factor; 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
- CPU's supported:Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1; Processor socket LGA1700
- Chipset:Intel® H610 Chipset
- Connectors:4x SATA 6Gb/s ports (From H610 chipset); 1x M.2 slot (Key M) (from CPU); Supports up to PCIe 3.0 x4; Supports 2242/ 2260/ 2280 storage devices; 1x 24-pin ATX main power connector; 1x 8-pin +12V power connector; 1x USB 3.2 Gen 1 5Gbps connector (From H6...
