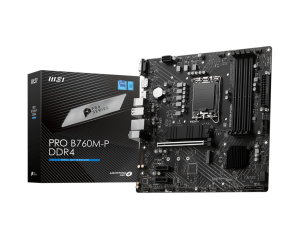

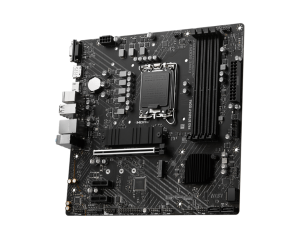

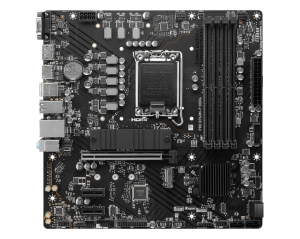

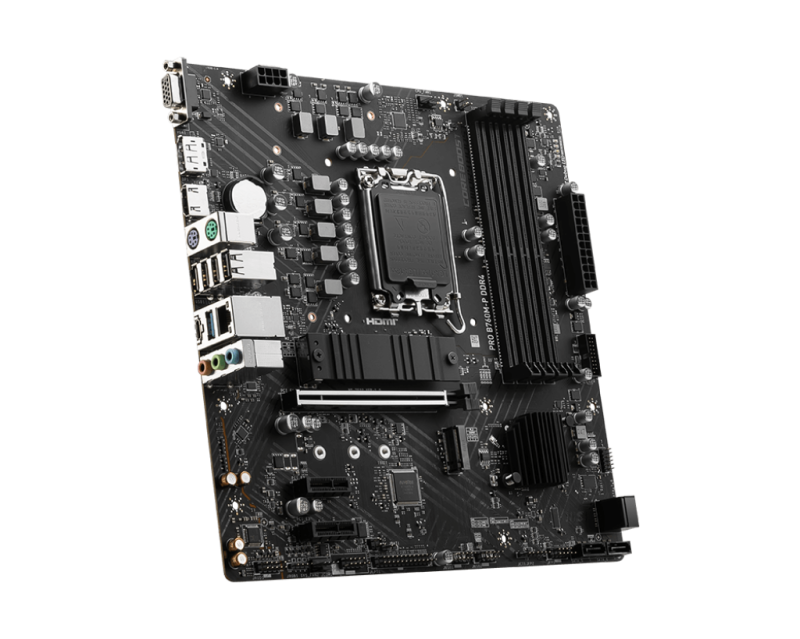

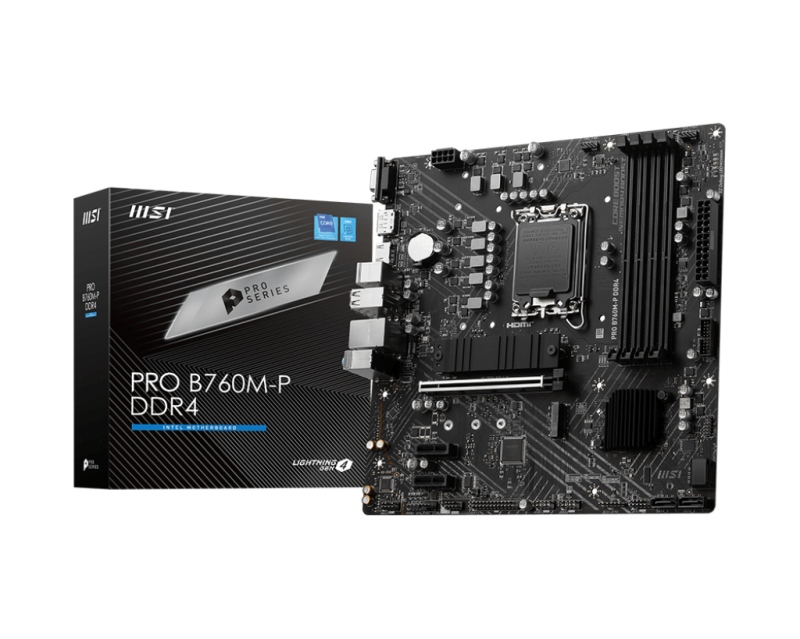

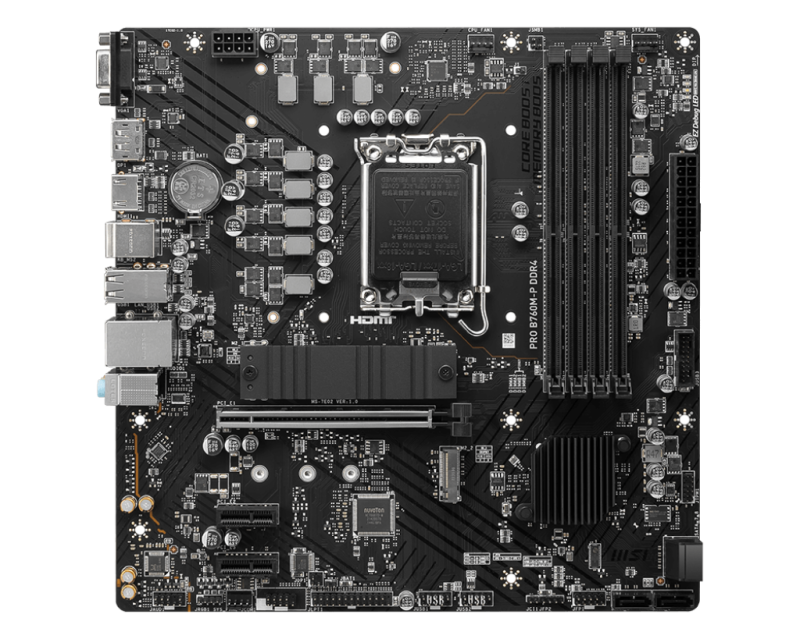

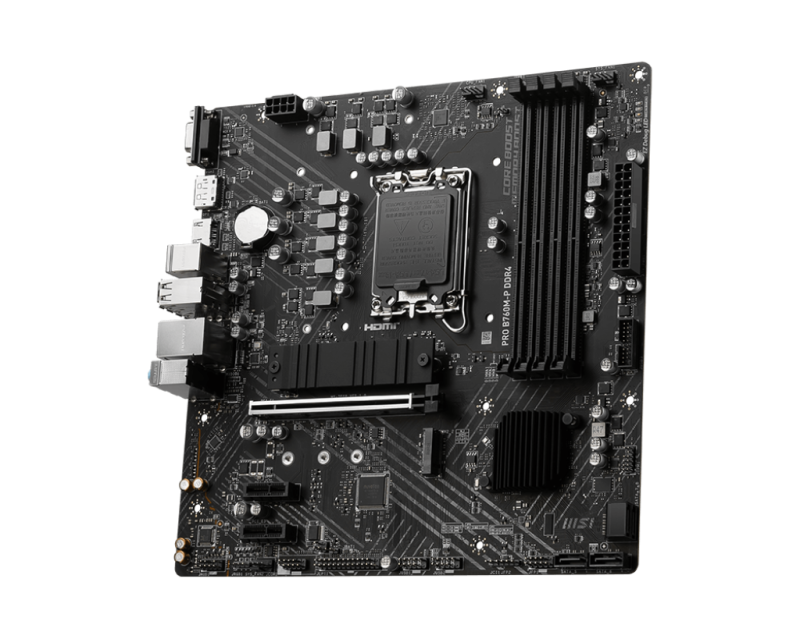

MSI PRO B760M-P DDR4 /LGA1700
Марка:
MSI
- Memory type:4x DDR4, Maximum Memory Capacity 128GB; Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC); Max. overclo...
- Graphics:1x HDMI™; 1x DisplayPort; 1x VGA; Support HDMI™ 1.4, maximum resolution of 4K 30Hz*; Support DP 1.4, maximum resolution of 4K 60Hz*; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
- Audio:Realtek® ALC897 Codec; 7.1-Channel High Definition Audio
- LAN:Realtek® RTL8111H Gigabit LAN
- Expansion Slots:1x PCI-E x16 slot; 2x PCI-E x1 slot; PCI_E1 PCIe 4.0 supports up to x16 (From CPU); PCI_E2 PCIe 4.0 supports up to x1 (From Chipset); PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)

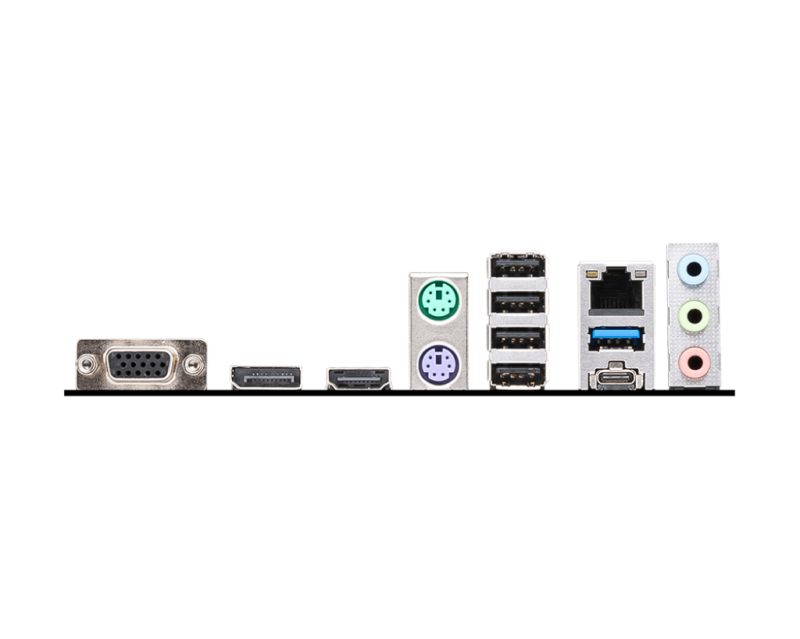

- I/O:VGA; DisplayPort; HDMI™; Keyboard / Mouse; USB 2.0; LAN port; Audio Connectors; USB 3.2 Gen 1 5Gbps (Type-A); USB 3.2 Gen 2 10Gbps (Type-C)
- Form Factor:mATX,243.84mmx243.84mm
- CPU's supported:Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
- Chipset:INTEL B760
- Storage:2x M.2 slot; M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G port
- Connectors:1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Printer Port (JLPT); 1x Com Port (JCOM); 1x RGB LED connector(JRGB); 1x TPM pin header(Supp...
