MediaTek Wi-Fi 7 MT7927, RZ738 (PCB rev. 1.0); - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11be 320MHz wireless standard; (Actual data rate may vary depending on environment and equipme...
:
Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O....
:
Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.0 version and HDCP 2.3.; - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Suppor...
:
Realtek® ALC1220-VB CODEC; High Definition Audio; 2/4/5.1/7.1-channel; 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out
:
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
:
CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * For optimum performance, if only one PCI Express graphics card is to be installed,be sure to install it in the PCIEX16 slot.; Chipset: - 2 x PCI Express x16 slots, sup...
:

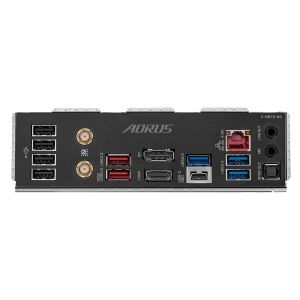

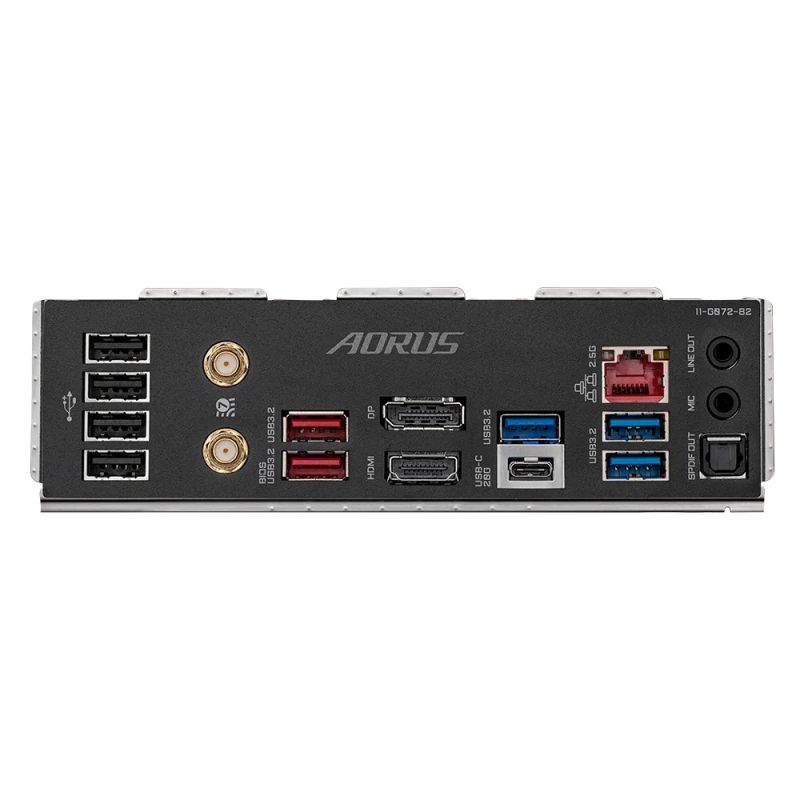

1 x USB Type-C® port, with USB 3.2 Gen 2x2 support; 2 x USB 3.2 Gen 2 Type-A ports (red); 3 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 2 x SMA antenna connectors (2T2R) jk; 1 x HDMI port; 1 x DisplayPort; 1 x RJ-45 port; 1 x optical S/PDIF Out conne...
:
ATX Form Factor; 30.5cm x 24.4cm
:
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*; L3 cache varies with CPU
:
Intel® Z790 Express Chipset
:
CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB); - 1 x M.2 connector (Socket 3, M key, type 2...
:
1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 3 x system fan headers; 1 x system fan/water cooling pump header; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LE...
:
1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
