E-ATX Form Factor; 30.5cm x 26.0cm
:
36 Months
:
Qualcomm® Wi-Fi 7 QCNCM865 (PCB rev. 1.0); - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11be 320MHz wireless standard; MediaTek Wi-Fi 7 MT7927, RZ738 (PCB rev. 1.1); - 802.11a, b, g, n,...
:
Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O....
:
Integrated Graphics Processor-Intel® HD Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
:
Realtek® ALC1220-VB CODEC; * The front panel line out jack supports DSD audio.; ESS ES9118 DAC chip; Support for DTS:X® Ultra; High Definition Audio; 2/4/5.1-channel;Support for S/PDIF Out
:
Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
:
CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.; * For op...
:
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*; L3 cache varies with CPU
:

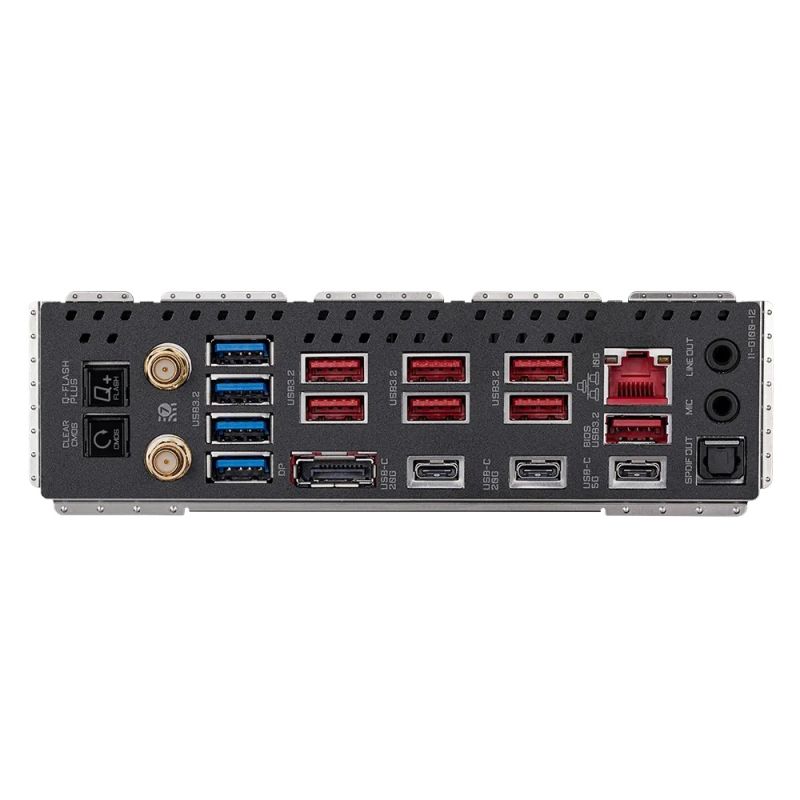

1 x Q-Flash Plus button; 1 x Clear CMOS button; 2 x SMA antenna connectors (2T2R); 1 x DisplayPort; 1 x USB Type-C® port, with USB 3.2 Gen 1 support; 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support; 7 x USB 3.2 Gen 2 Type-A ports (red); 4 x USB 3.2...
:
Intel® Z790 Express Chipset
:
1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 4 x system fan headers; 4 x system fan/water cooling pump headers; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB L...
:
1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
:
CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU); - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/228...
