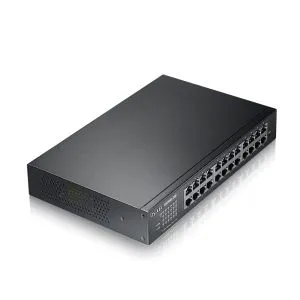

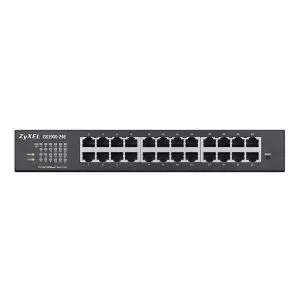

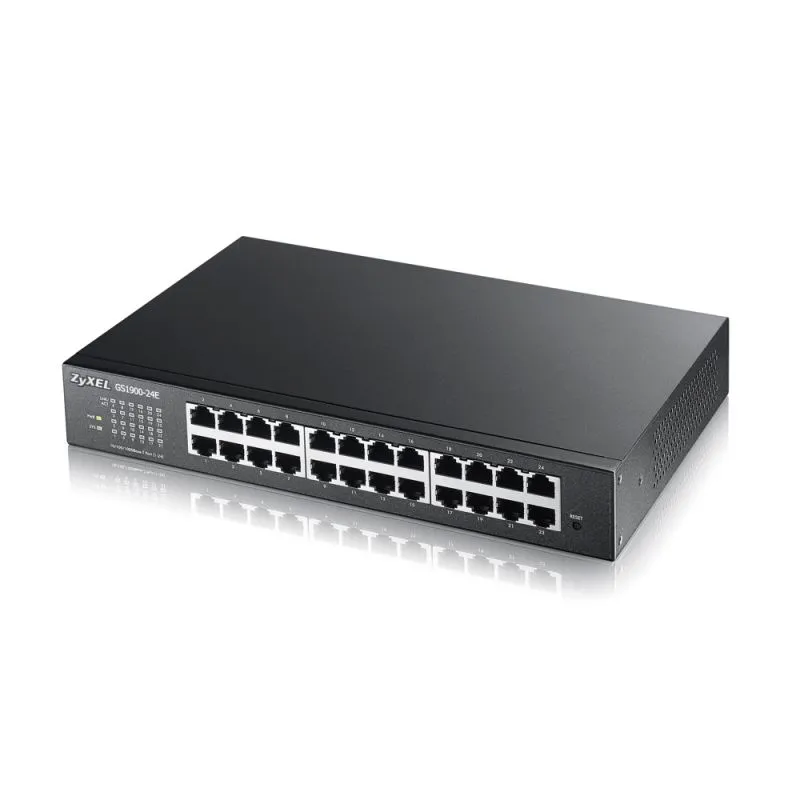

Switch ZyXEL GS1900-24E v3, 24-port GbE L2 Smart Switch, desktop, fanless
Brand:
ZYXEL
-
Dimensions (W, L, H), mm:267 x 162 x 42
-
Switch type:Fixed Port
-
Main ports, typ:24x10/100/1000Base-T
-
Power over Ethernet (PoE):No
-
Free (10GB) slots:No
-
Stackable:No
-
Fans_TEXT:Fanless design
-
Routing:Layer 2 Only
-
Memory (Flash, RAM):Packet Buffer: 525 KB
-
Routing/switching capacity, Gbps:48 Gbps
-
Throughput, Mpps:35.7 Mpps
-
MAC addresses:8000 MAC address table size
-
VLAN (number, standards):Port-based VLAN, IEEE 802.1Q VLAN tagging, IEEE 802.3ad LACP, Guest VLAN, Voice VLAN
-
L2 network standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x flow control, IEEE 802.3az EEE support, IEEE 802.1p CoS support, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s
-
L3 network standards:-
-
IPv6 functionality:IPv6 over Ethernet, Dual-stack, ICMPv6, Neighbor discovery, Auto configuration, Static IPv6 address and prefix length, Static IPv6 default gateway, IPv6 duplicate address detection
-
Mounting option:Desktop/Rackmount
-

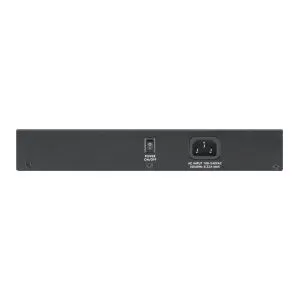

:Input voltage of AC: 100 - 240 V AC, 50/60 Hz; Max. power consumption: 15.1 (watt)
-
:IEEE 802.1x, Port security, Layer 2 MAC filtering, Static MAC forwarding, RADIUS, TACACS+, SSL, Management VLAN, CPU defense engine, DoS prevention
-
:IEEE 802.1p priority queues per port, IEEE 802.1p Queuing method (scheduler), Input priority mapping, Rate limiting per port (ingress/egress)
-
:24
-
:Built-in Web-based browser for simple configuration and management; Network Management: SNMP v1, v2, v3; RMON (1, 2, 3, 9); ICMP echo/echo reply; Syslog; IEEE 802.1AB LLDP; IEEE 802.1AB LLDP-MED
