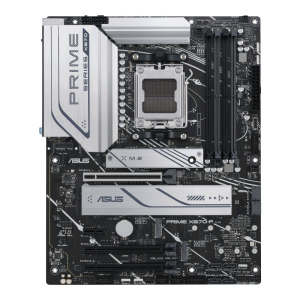

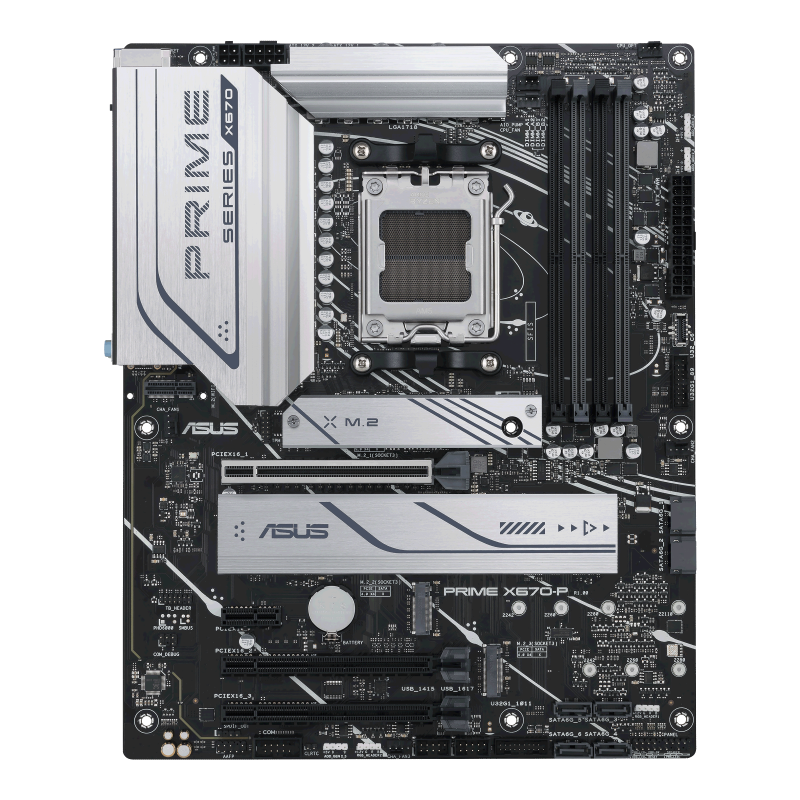

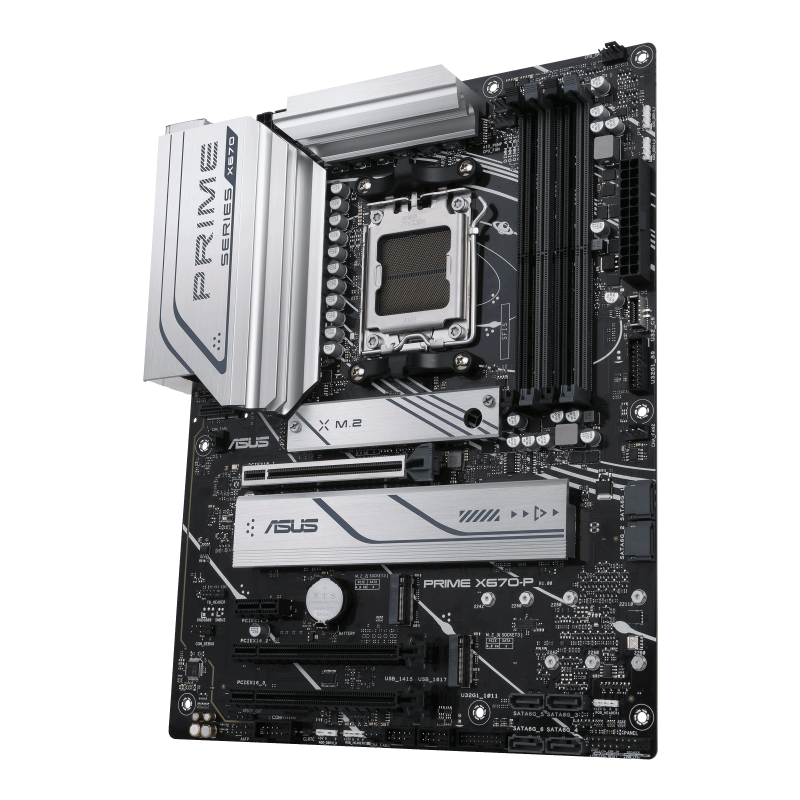

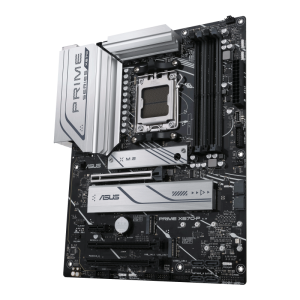

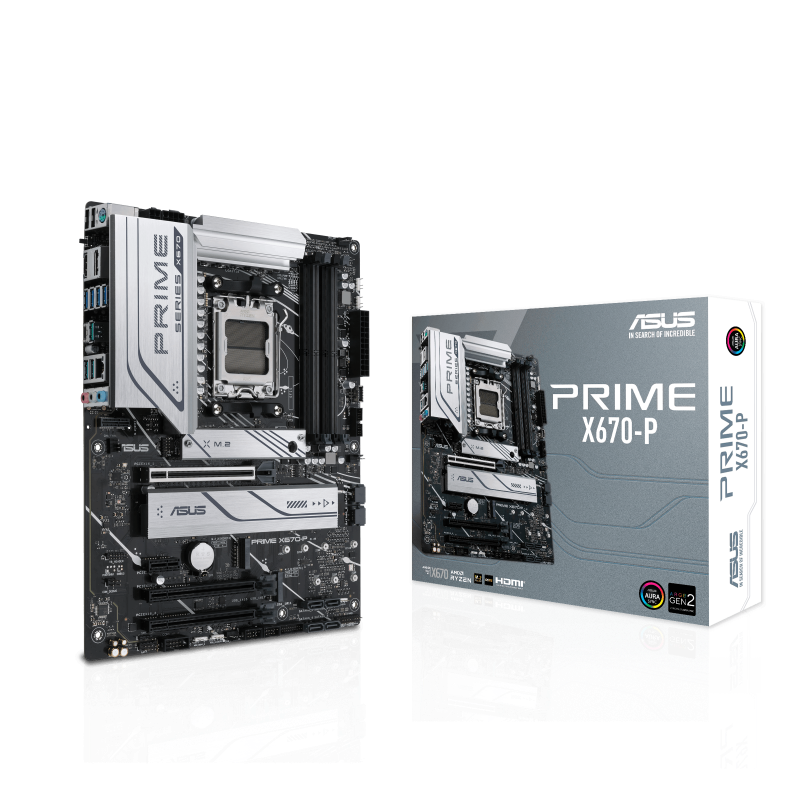

ASUS PRIME X670-P
Brand:
ASUS
- Form factor:ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Warranty:36 Months
- :V-M.2 slot only (Key E, PCIe)*
- :4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); OptiMem II
- :1 x DisplayPort**; 1 x HDMI® port***
- :Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio...
- :1 x Realtek 2.5Gb Ethernet
- :AMD Ryzen™ 7000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x16 mode); AMD X670 Chipset; 2 x PCIe 4.0 x16 slots (support x4 mode); 1 x PCIe 3.0 x1 slot**
- :AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*

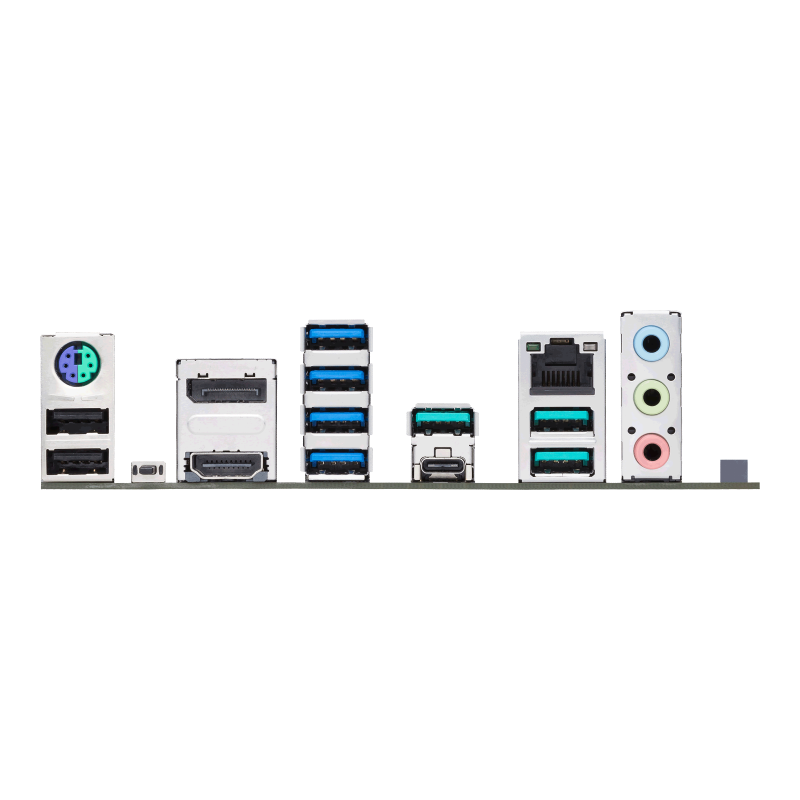

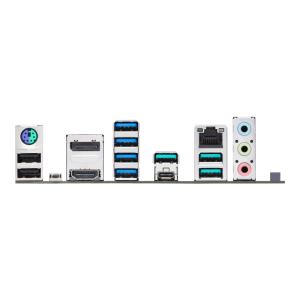

- :1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®); 3 x USB 3.2 Gen 2 ports (3 x Type-A); 4 x USB 3.2 Gen 1 ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI® port; 1 x V-M.2 slot (Key E); 1 x Realtek 2.5Gb Ethernet port; 3 x Audio...
- :AMD X670 Chipset
- :1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; 3 x M.2 slots (Key M); 6 x SATA 6Gb/s por...
- :256 Mb Flash ROM, UEFI AMI BIOS
- :Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*; AMD Ryzen™ 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); AMD X670...
