GB X670E AORUS MASTER / AM5
Brand:
GIGABYTE
- :Intel® Wi-Fi 6E AX210; WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.3; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
- :Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Su...
- :Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version and HDR.; 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution o...
- :Realtek® ALC1220-VB CODEC; * The back panel line out jack supports DSD audio.; Support for DTS:X® Ultra; High Definition Audio; 2/4/5.1/7.1-channel output; * You can change the functionality of an audio jack using the audio software. To configure; 7.1-...
- :Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- :CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16); * Actual support may vary by CPU.; * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipse...

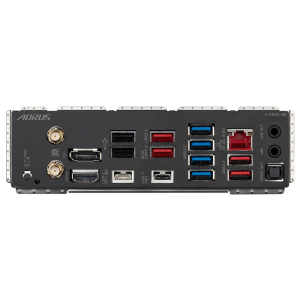

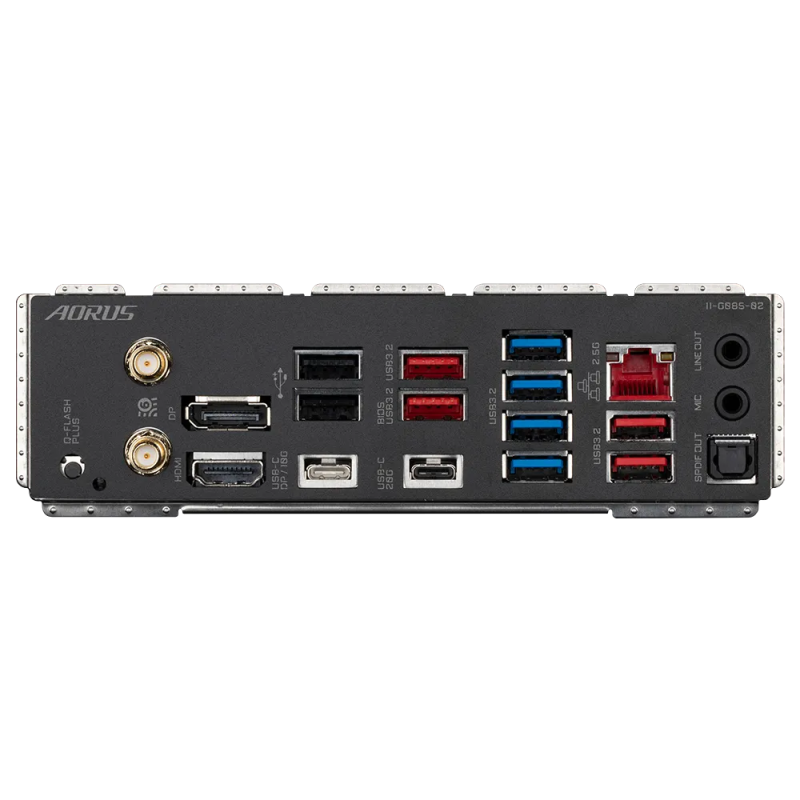

- :1 x Q-Flash Plus button; 2 x SMA antenna connectors (2T2R); 1 x DisplayPort; 1 x HDMI port; 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support; 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support; 4 x USB 3.2 Gen 2 Type-A ports (red); 4 x US...
- :Support for Windows 11 64-bit; Support for Windows 10 64-bit
- :AMD Socket AM5, support for : AMD Ryzen™ 7000 Series Processors
- :AMD X670
- :CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU); * Actual support may vary by CPU.; 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU); * Actual support may vary by...
- :1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x water cooling CPU fan header; 4 x system fan headers; 4 x system fan/water cooling pump headers; 2 x addressable LED strip headers; 2 x RGB LED strip heade...
- :1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
