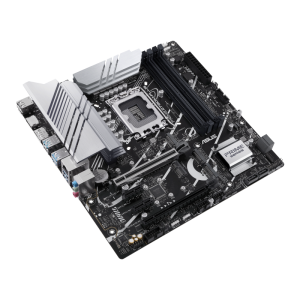

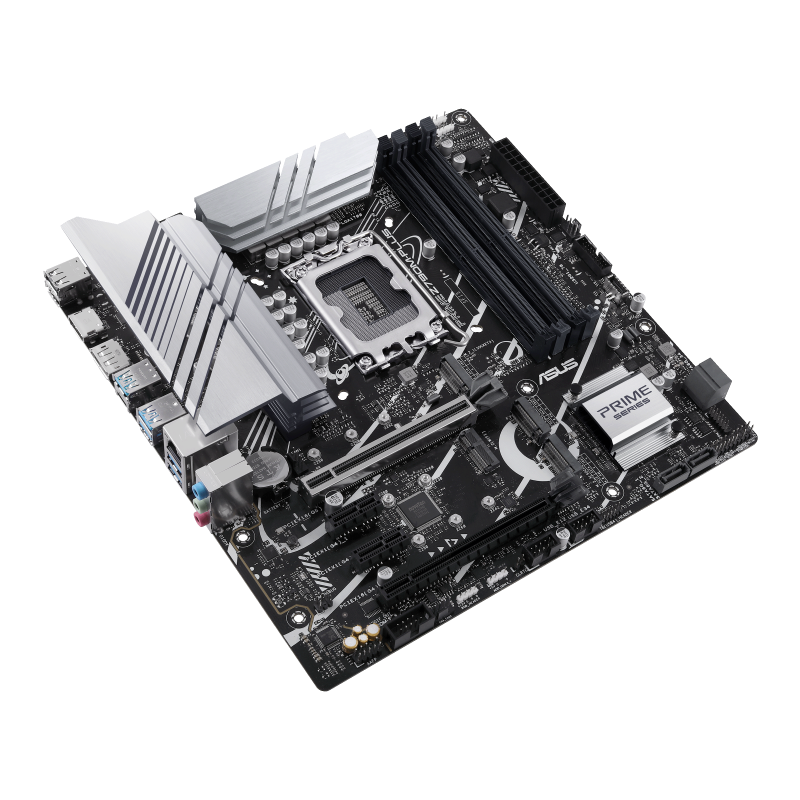

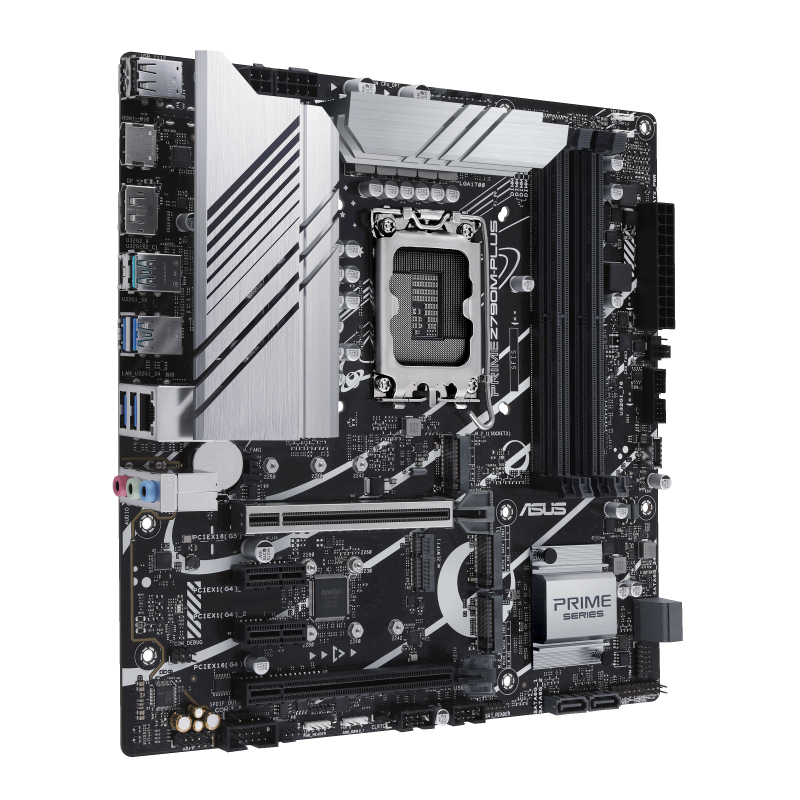

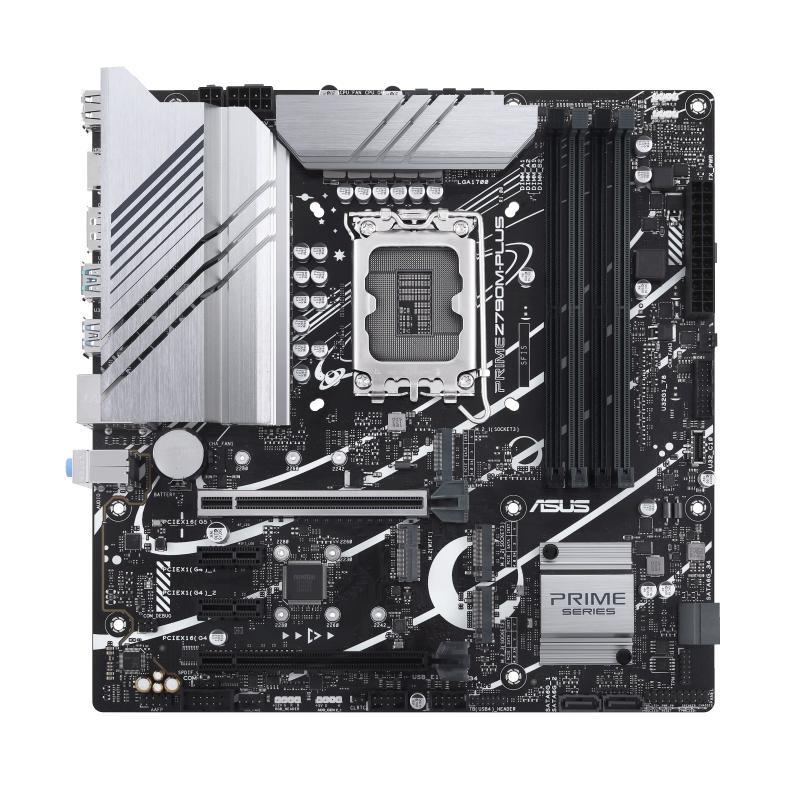

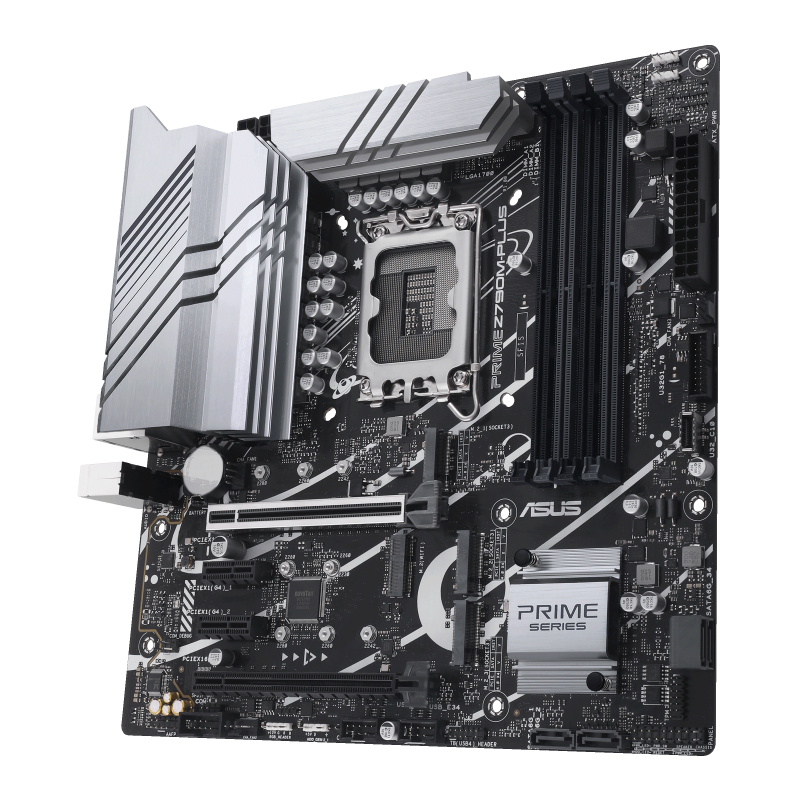

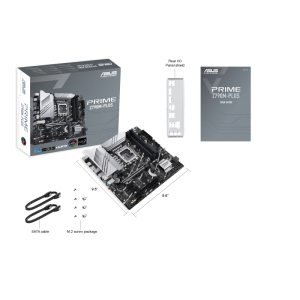

ASUS PRIME Z790M-PLUS
Brand:
ASUS
- Form factor:mATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
- Warranty:36 Months
- :M.2 slot only (Key E, CNVi & PCIe)*; *Wi-Fi module is sold separately.
- :4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem I...
- :1 x DisplayPort**; 1 x HDMITM port***
- :Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio...
- :1 x Intel® 1Gb Ethernet; ASUS LANGuard
- :Intel® Core™ Processors (14th & 13th & 12th Gen)*; 1 x PCIe 5.0 x16 slot; Intel® Z790 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 2 x PCIe 4.0 x1 slots
- :Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

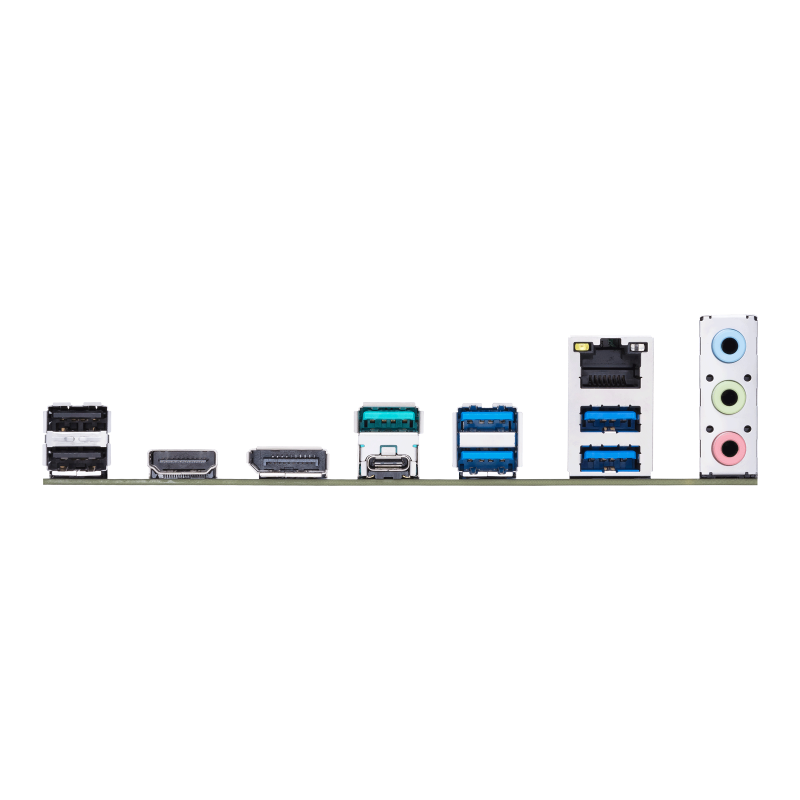

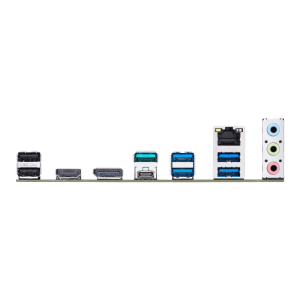

- :1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®); 1 x USB 3.2 Gen 2 port (1 x Type-A); 4 x USB 3.2 Gen 1 ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMITM port; 1 x Intel® 1Gb Ethernet port; 3 x Audio jacks
- :Intel® Z790 Chipset
- :1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 1 x 8-pin + 12V Power connector; 1 x 4-pin + 12V Power connector; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s p...
- :192 (128+64) Mb Flash ROM, UEFI AMI BIOS
- :Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel® Core™ Processors (14th & 13th & 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel® Z790 Chipset; M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4...
