ASROCK B550M PG RIPTIDE /AM4
Brand:
ASROCK
- :ASROCK
- :Software; ASRock Motherboard Utility (Phantom Gaming Tuning); ASRock Phantom Gaming LAN Software; ASRock Polychrome SYNC; ASRock Key Master*; UEFI; ASRock Full HD UEFI; ASRock Instant Flash; Drivers, Utilities, AntiVirus Software (Trial Version), Googl...
- :Dual Channel DDR4 Memory Technology; 4 x DDR4 DIMM Slots; AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(...
- :Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; DirectX 12, Pixel Shader 5.0; Shared memory default 2GB. Max Shared memory supports up to 16GB.**; Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display con...
- :7.1 CH HD Audio (Realtek ALC897 Audio Codec); Supports Surge Protection; Nahimic Audio;
- :2.5 Gigabit LAN 10/100/1000/2500 Mb/s; Dragon RTL8125BG; Supports Phantom Gaming LAN Software; Smart Auto Adjust Bandwidth Control; Visual User Friendly UI; Visual Network Usage Statistics; Optimized Default Setting for Game, Browser, and Streaming Mod...
- :AMD Ryzen series CPUs (Vermeer and Matisse); 2 x PCIe x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3x4 mode)*; AMD Ryzen series APUs (Cezanne and Renoir); 2 x PCIe x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3x4 mode)*; AMD Ryzen series APUs (Picasso); 2 x...

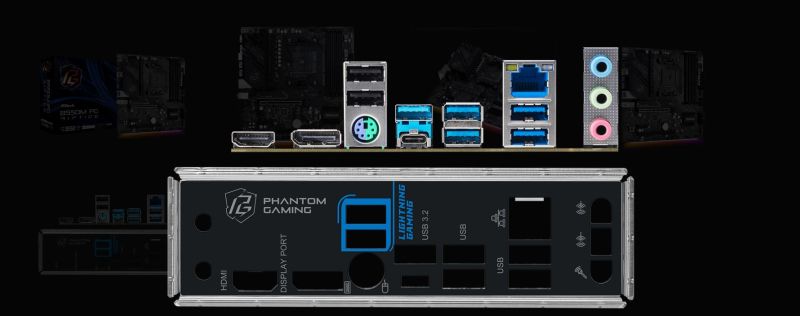

- :2 x Antenna Mounting Points; 1 x PS/2 Mouse/Keyboard Port; 1 x HDMI Port; 1 x DisplayPort 1.4; 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection); 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection); 4 x USB 3.2 Gen1 Ports (S...
- :Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm; Solid Capacitor design;
- :Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series; Desktop Processors; Digi Power design; 8 Power Phase design;
- :AMD B550
- :4 x SATA3 6.0 Gb/s Connectors; 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) mode (with Cezanne, Renoir and Picasso)*; 1 x M.2 Socket (M2_2, Key M), supports type 2260...
- :1 x SPI TPM Header; 1 x Power LED and Speaker Header; 2 x RGB LED Headers*; 2 x Addressable LED Headers**; 1 x CPU Fan Connector (4-pin)***; 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; 4 x Chassis/Water Pump Fan Connectors (...
- :128Mb AMI UEFI Legal BIOS with GUI support; Supports "Plug and Play"; ACPI 5.1 compliance wake up events; Supports jumperfree; SMBIOS 2.3 support; CPU, CPU VDDCR_SOC, DRAM, +1.8VSB, VPPM Voltage Multi-adjustment;
