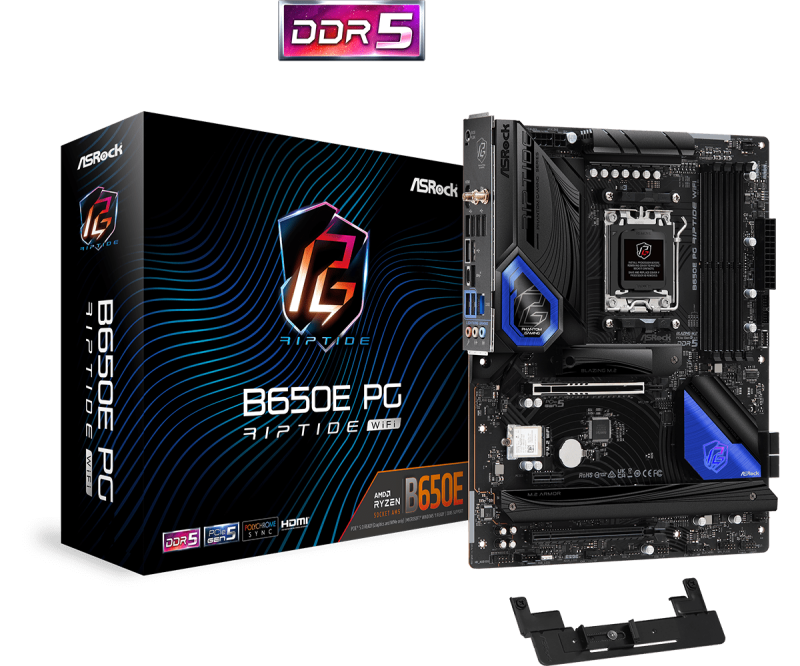

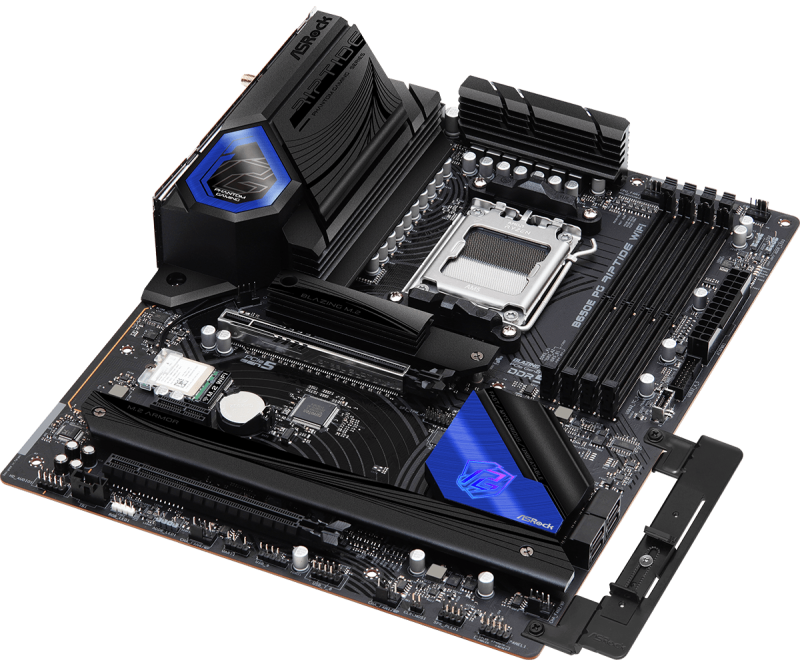

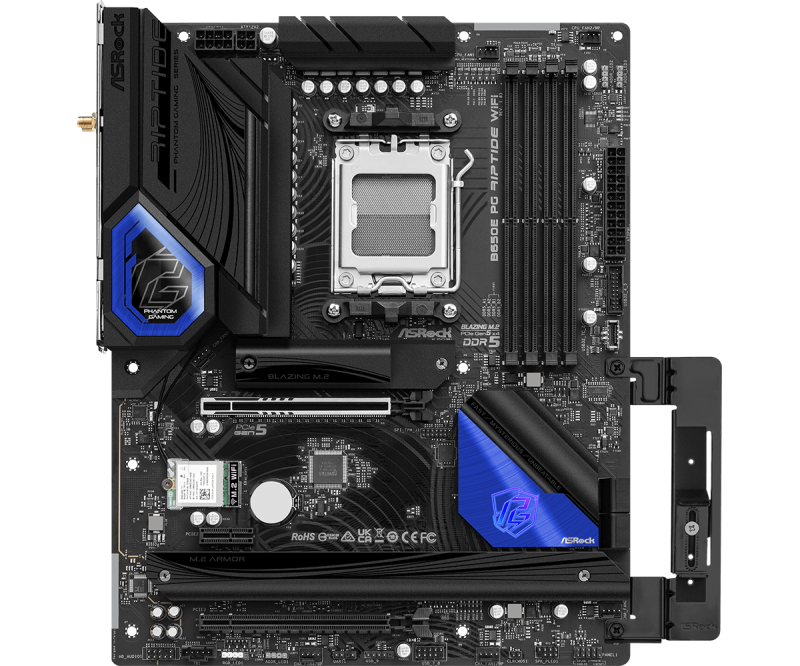

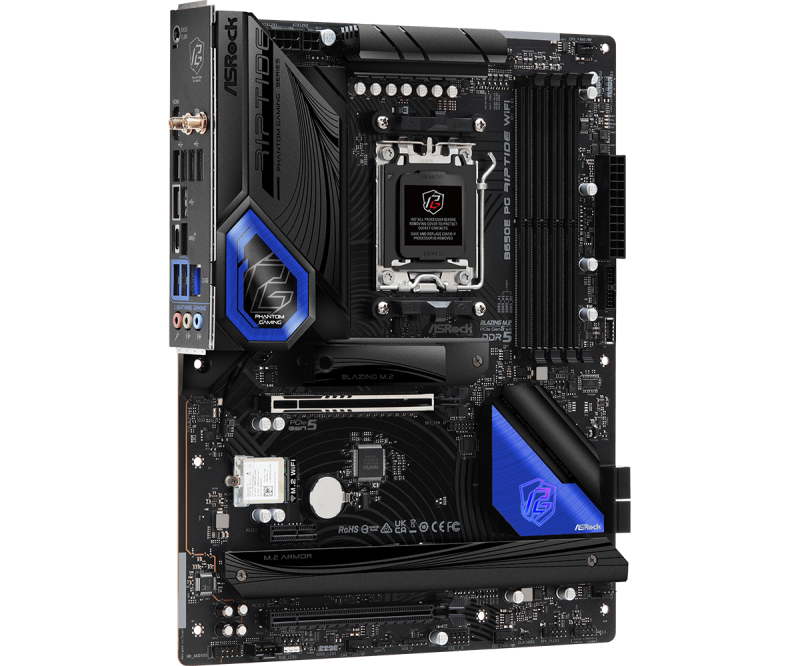

ASROCK B650E PG RIPTIDE WIFI
Brand:
ASROCK
- :- 802.11ax Wi-Fi 6E Module; - Supports IEEE 802.11a/b/g/n/ac/ax; - Supports Dual-Band 2x2 with extended 6GHz band support*; - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; - Supports Bluetooth 5.2 + High speed class II; - Suppo...
- :- Dual Channel DDR5 Memory Technology; - 4 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 6600+(OC)*; - Max. capacity of system memory: 128GB; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) m...
- :Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- :- 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio
- :- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Killer E3100G; - Supports Killer LAN Software
- :CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*; - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*; Chipset: - 1 x PCIe 4.0 x1 Slot (PCIE2)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*; - Supports AMD CrossFire™; -...
- :- 2 x Antenna Ports; - 1 x HDMI Port; - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver); - 2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports); - 6 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; -...
- :- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; - 8 Layer PCB
- :- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
- :- AMD B650
- :CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*; Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*; - 1 x Hyper M.2 Socket (M2_3, Key M), sup...
- :- 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 4 x Chassis/Water Pump Fan...
- :- 256Mb AMI UEFI Legal BIOS with GUI support
