Brand:
ASROCK
- :ASRock Inc.
- :- Intel® 802.11ac WiFi Module; - Supports IEEE 802.11a/b/g/n/ac; - Supports Dual-Band (2.4/5 GHz); - Supports high speed wireless connections up to 433Mbps; - Supports Bluetooth 4.2 + High speed class II
- :- Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) /...
- :- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent dis...
- :- 7.1 CH HD Audio (Realtek ALC887 Audio Codec); - Supports Surge Protection
- :- PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111H; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE
- :AMD Ryzen series CPUs (Matisse); - 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)*; AMD Ryzen series APUs (Renoir); - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*; - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on...

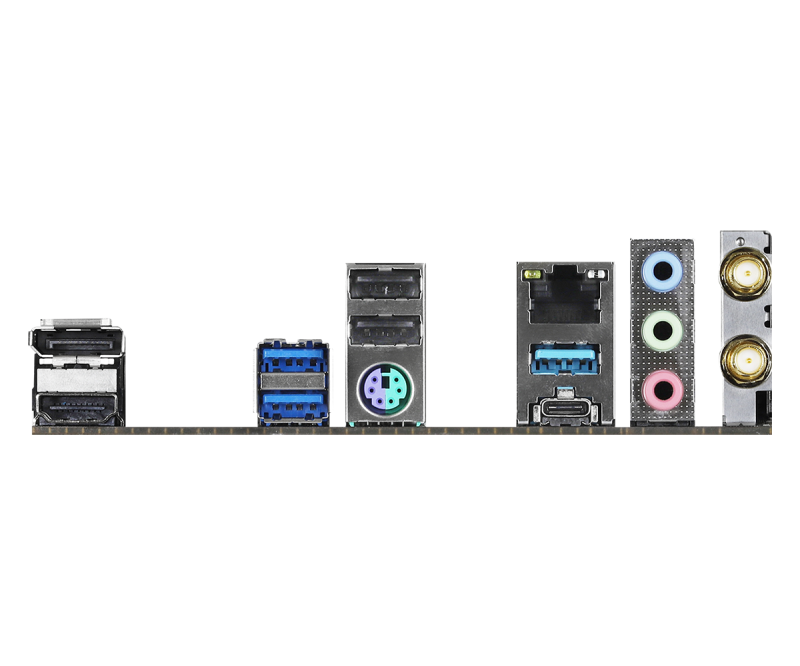

- :- 2 x Antenna Ports; - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 2 x USB 2.0 Ports (Supports ESD Protection); - 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection); - 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protecti...

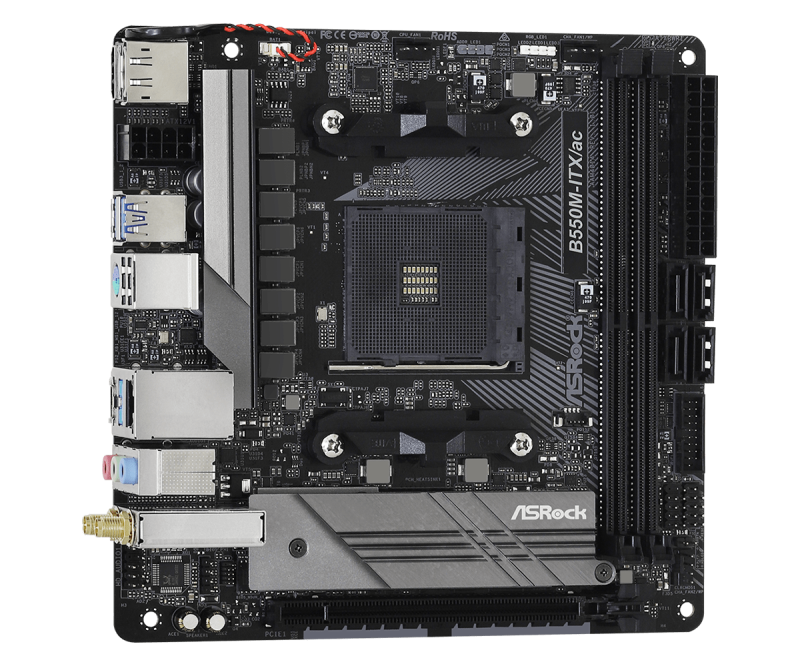

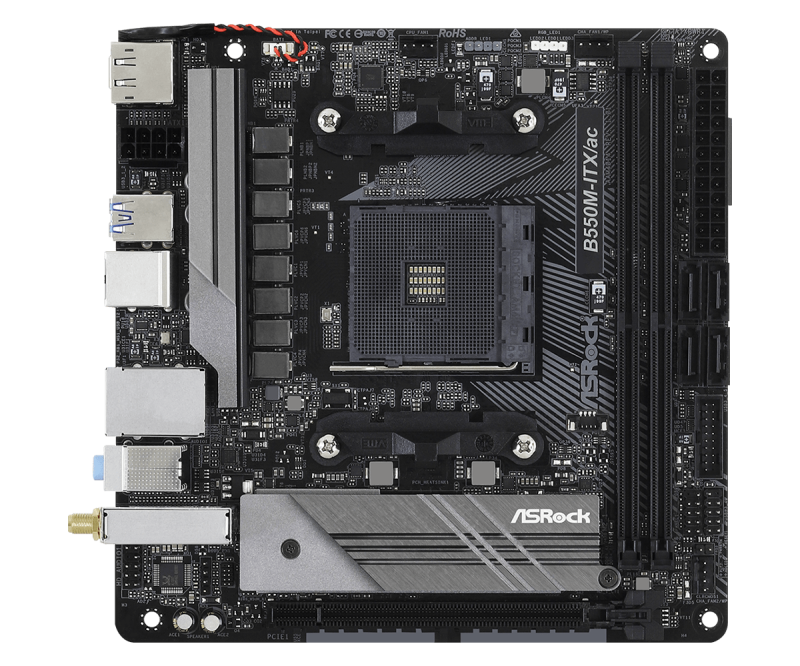

- :- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm; - Solid Capacitor design
- :- Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors*; - Digi Power design; - 8 Power Phase design
- :- AMD B550
- :- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug; - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Ge...
- :- 1 x RGB LED Header*; - 1 x Addressable LED Header**; - 1 x CPU Fan Connector (4-pin)***; - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Pan...
- :- 256Mb AMI UEFI Legal BIOS with GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - CPU, CPU VDDCR_SOC, DRAM, VPPM, +1.8VSB, VDDP Voltage Multi-adjustment
