Brand:
ASROCK
- :ASRock
- :- Dual Channel DDR4 Memory Technology;- 2 x DDR4 DIMM Slots;- Supports DDR4 non-ECC, un-buffered memory up to 3200;- Supports ECC UDIMM memory modules (operate in non-ECC mode);- Max. capacity of system memory: 64GB;- Supports Intel® Extreme Memory Pro...
- :- Intel® Xe Graphics Architecture (Gen 12);- 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz
- :7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- :- Gigabit LAN 10/100/1000 Mb/s;- Realtek 8111H
- :CPU;- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode;Chipset;- 1 x PCIe 3.0 x1 Slot (PCIE2)

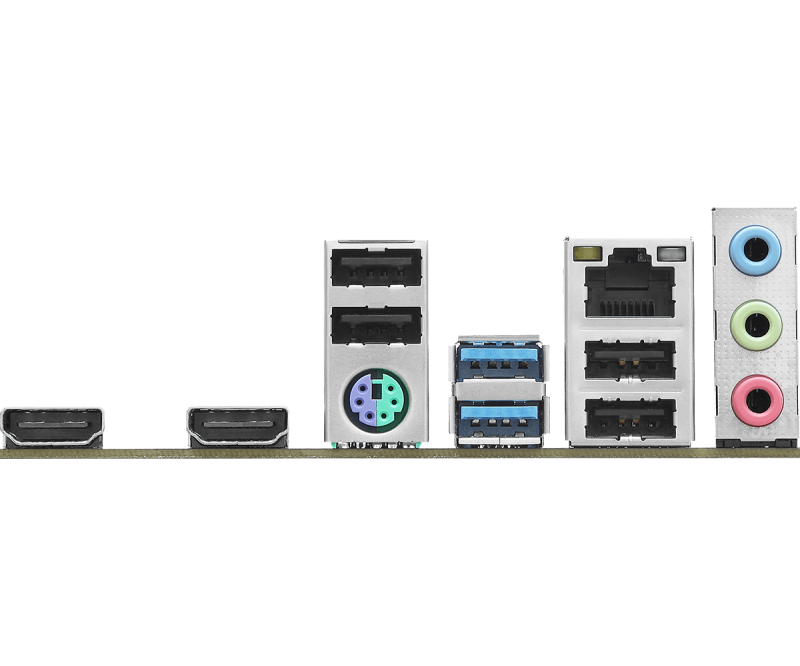

- :- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front);- 6 x USB 2.0 (4 Rear, 2 Front);- 1 x PS/2 Mouse/Keyboard Port;- 2 x HDMI Ports;- 2 x USB 3.2 Gen1 Type-A Ports;- 4 x USB 2.0 Ports;- 1 x RJ-45 LAN Port;- HD Audio Jacks: Line in / Front Speaker / Microphone
- :Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
- :- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700);- Supports Intel® Hybrid Technology;- Supports Intel® Turbo Boost Max 3.0 Technology
- :Intel® H610
- :Chipset;- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode;- 4 x SATA3 6.0 Gb/s Connectors
- :- 1 x SPI TPM Header;- 1 x Chassis Intrusion and Speaker Header;- 1 x CPU Fan Connector (4-pin);- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control);- 1 x 24 pin ATX Power Connector;- 1 x 8 pin 12V Power Connector;- 1 x Front Panel...
- :128Mb AMI UEFI Legal BIOS with GUI support
- :Rock-Solid Durability;- 3+1+1 Power Phase;EZ Update;- ASRock Auto Driver Installer
