Brand:
GIGABYTE

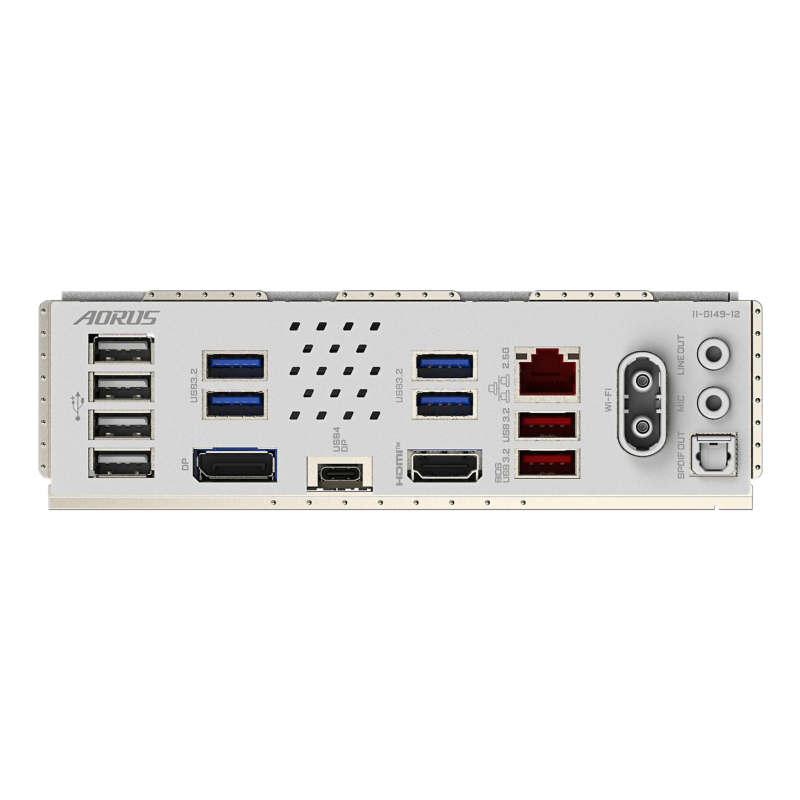

- USB:CPU:;- 1 x USB4® USB Type-C® port on the back panel;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header;- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;- 2 x USB 3.2 Gen 1 ports available throu...
- :GIGABYTE

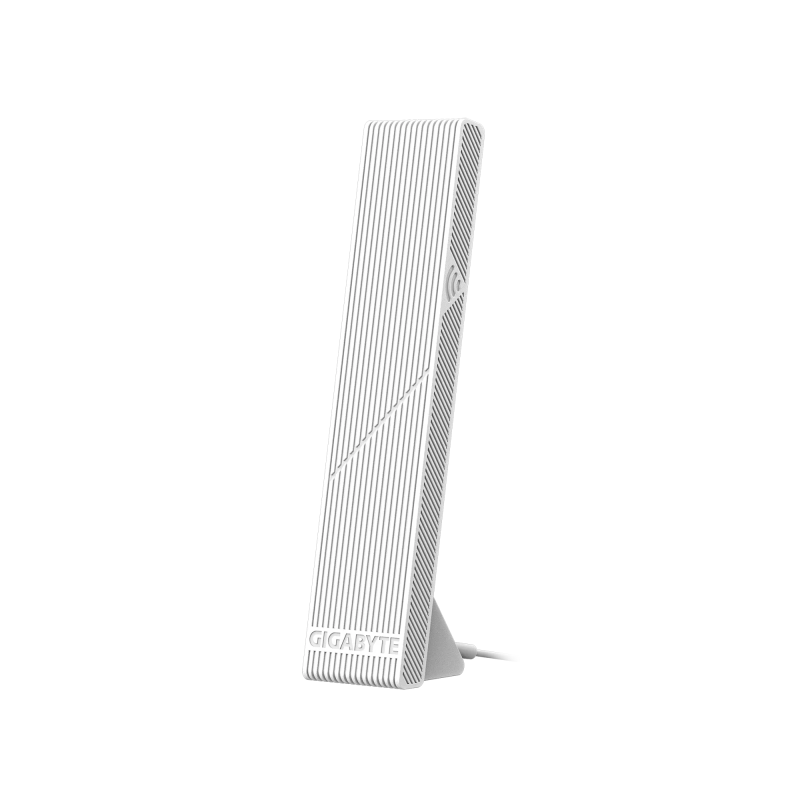

- :Intel® Wi-Fi 6E AX211 (PCB rev. 1.0);- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 160MHz wireless standard;Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1);- WIFI a, b, g, n, ac, ax, supporting...
- :Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules;4 x DDR5...
- :Integrated Graphics Processor-Intel® HD Graphics support:;- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 2.1 version.;- 1 x DisplayPort, supporting a ma...
- :Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out
- :Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- :CPU:;- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;Chipset:;- 1...
- :iTE® I/O Controller Chip
- :Micro ATX Form Factor; 24.4cm x 24.4cm
- :LGA1851 socket: Support for Intel ® Core™ Ultra Processors;L3 cache varies with CPU
- :Intel ® B860 Express Chipset
- :CPU:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU);Chipset:;- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB);- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/228...
- :1 x 24-pin ATX main power connector;2 x 8-pin ATX 12V power connectors;1 x CPU fan header;1 x CPU fan/water cooling pump header;3 x system fan headers;1 x system fan/water cooling pump header;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip...
- :1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- :Support for GIGABYTE Control Center (GCC);* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.;Support for Q-Flash;Support for Q-Flash Plus;Support...
