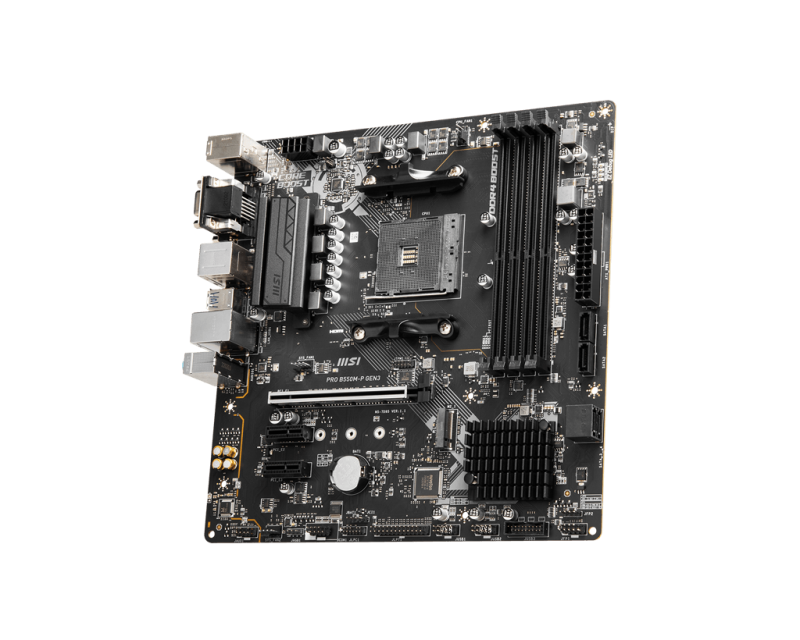

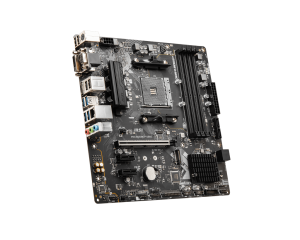

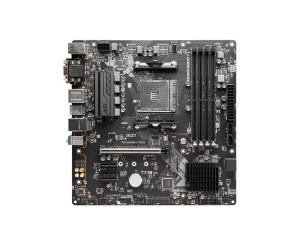

MSI PRO PRO B550M-P GEN3
Brand:
MSI
- Form factor:m-ATX Form Factor; 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
- Warranty:36 Months
- :4x DDR4 memory slots, supporting up to 128GB* 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE; 1D...
- :1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1; 1x HDMI™ 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz 1 2; 1x DVI-D port, supports a maximum resolution of 1920x1200 @60...
- :Realtek® ALC897 Codec; 7.1-Channel High Definition Audio
- :1x Realtek® RTL8111H 1Gbps LAN controller
- :1x PCIe 3.0 x16 slot (From CPU); 2x PCIe 3.0 x1 slots (From AMD B550 chipset)
- :Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

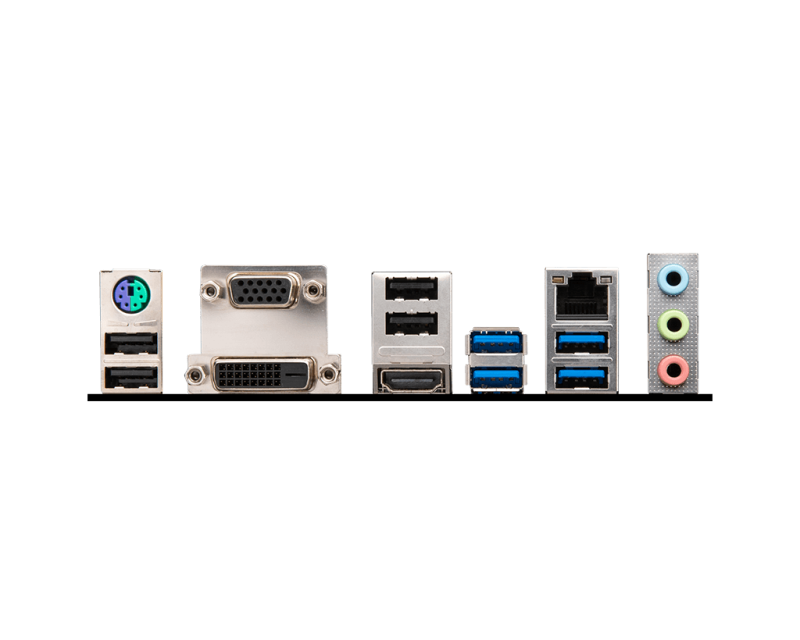

- :Keyboard / Mouse; VGA; USB 2.0; USB 3.2 Gen 1 5Gbps Type-A; LAN port; Audio connector; USB 2.0; DVI-D; HDMI™; USB 3.2 Gen 1 5Gbps Type-A
- :AMD® B550 Chipset
- :1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin CPU fan connector; 2x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x Serial port connector; 1x P...
- :1x 256 Mb flash; UEFI AMI BIOS; ACPI 6.1, SMBIOS 2.8; Multi-language
- :4x SATA 6Gb/s ports (From AMD B550 Chipset) 1;1x M.2 slot (Key M); M2_1 slot (From CPU); Supports PCIe 3.0 x4; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices
