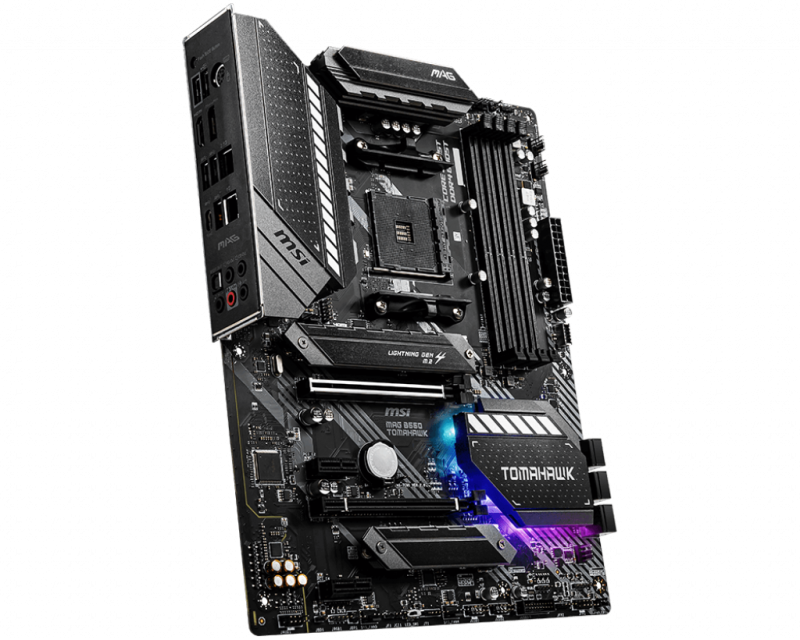

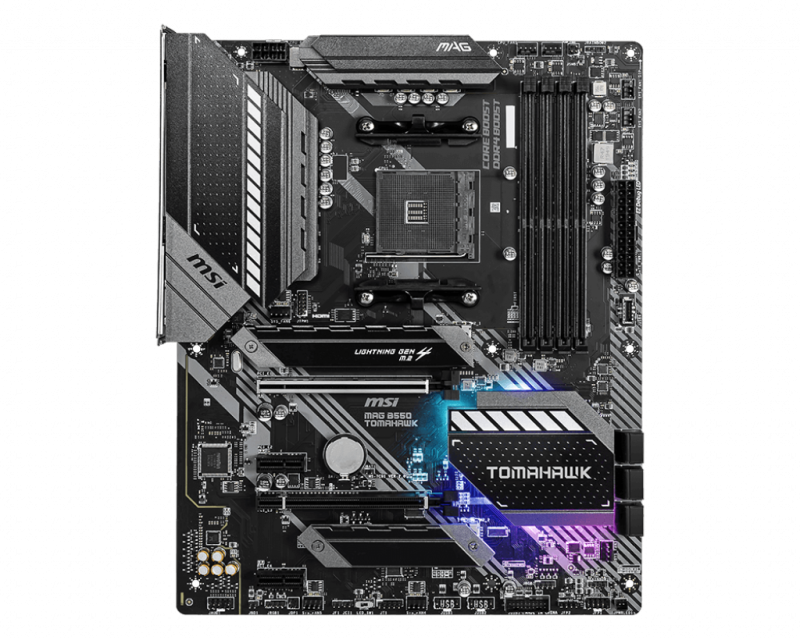

MSI MAG B550 TOMAHAWK
Марка:
MSI
- Форм-фактор:ATX Form Factor; 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- Гаранция:36 Months
- Memory Type:4 x DDR4 memory slots, support up to 128GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 486...
- Graphics:1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1; 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1; Maximum shared memory of 2048 MB
- Audio:Realtek® ALC1200 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output
- LAN:1x Realtek® RTL8125B 2.5Gbps LAN controller; 1x Realtek® RTL8111H 1Gbps LAN controller
- Expansion Slots:1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1; 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2; 2x PCIe 3.0 x1 slots
- CPU's supported:Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update

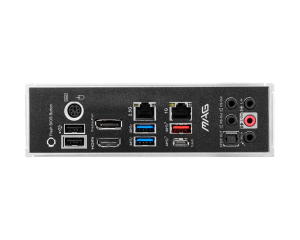

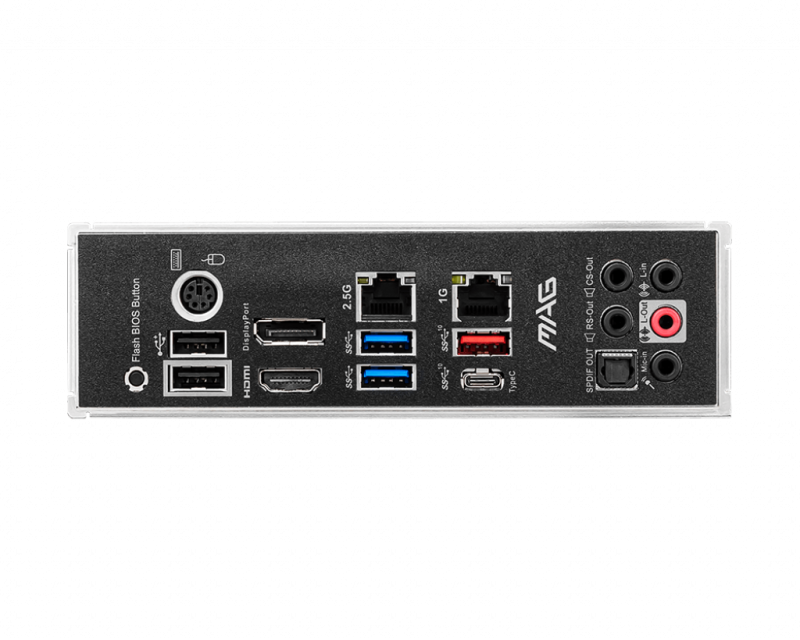

- I/O:PS/2 Combo Port; DisplayPort; 2.5G LAN Port; 1G LAN Port; HD Audio Connectors; Flash BIOS Button; USB 2.0 Port; HDMI Port; USB 3.2 Gen 1 5Gbps (Type-A); USB 3.2 Gen 2 10Gbps (Type-A + Type-C); Optical S/PDIF OUT
- Chipset:AMD B550 Chipset
- Connectors:1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 6x SATA 6Gb/s connectors; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 con...
- Storage:AMD B550 Chipset; 6x SATA 6Gb/s ports; 2x M.2 slots (Key M); M2_1 slot (from AMD Processor); Supports PCIe 4.0/ 3.0 x4 1; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_2 slot (from AMD B550 chipset); Supports PCIe 3.0x4; Sup...
