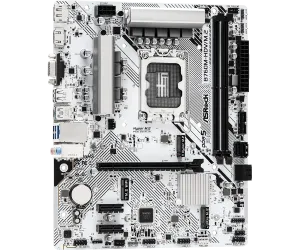

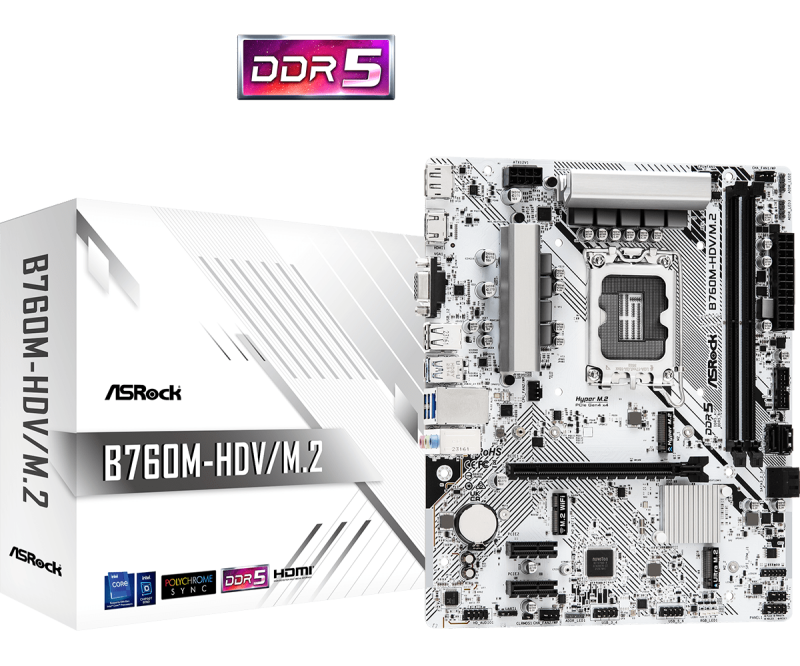

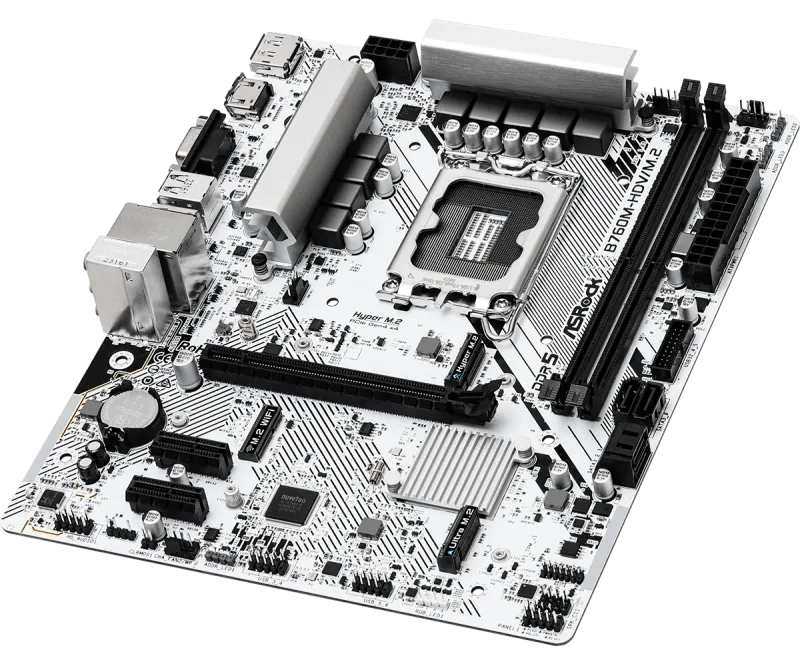

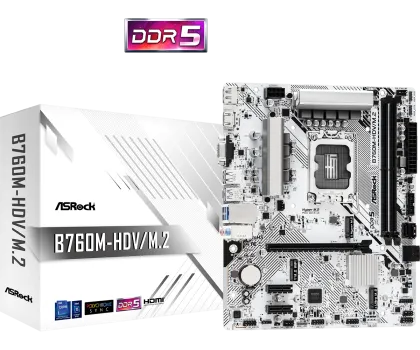

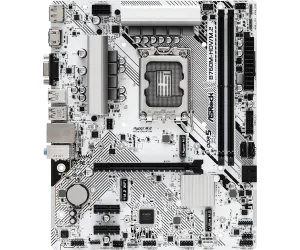

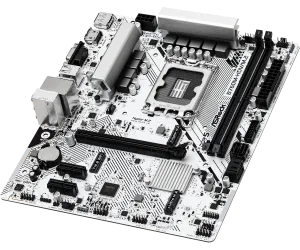

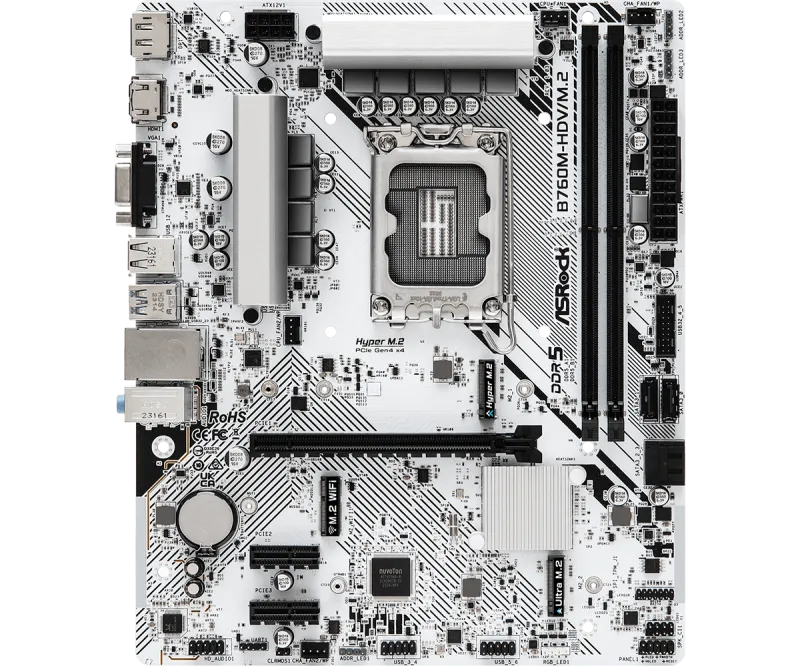

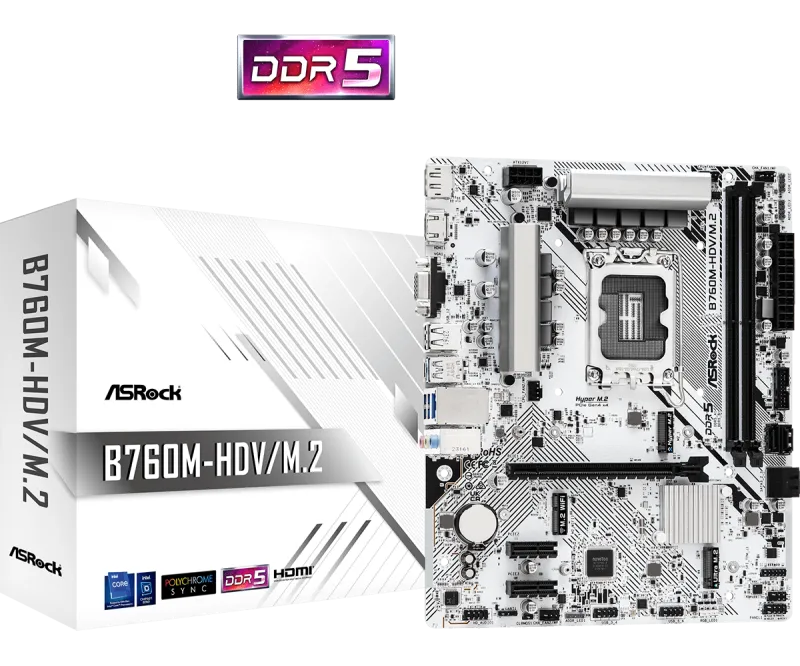

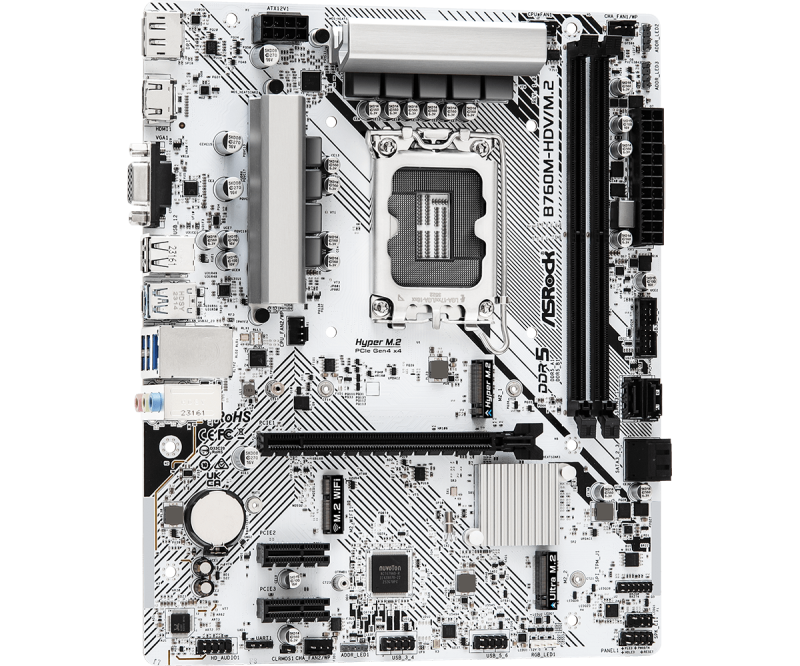

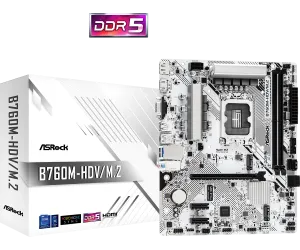

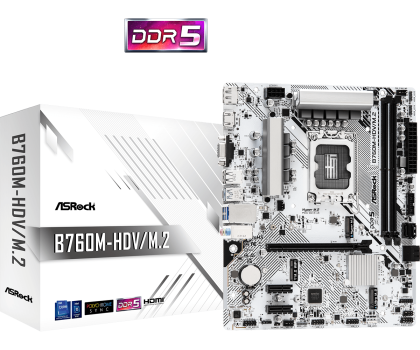

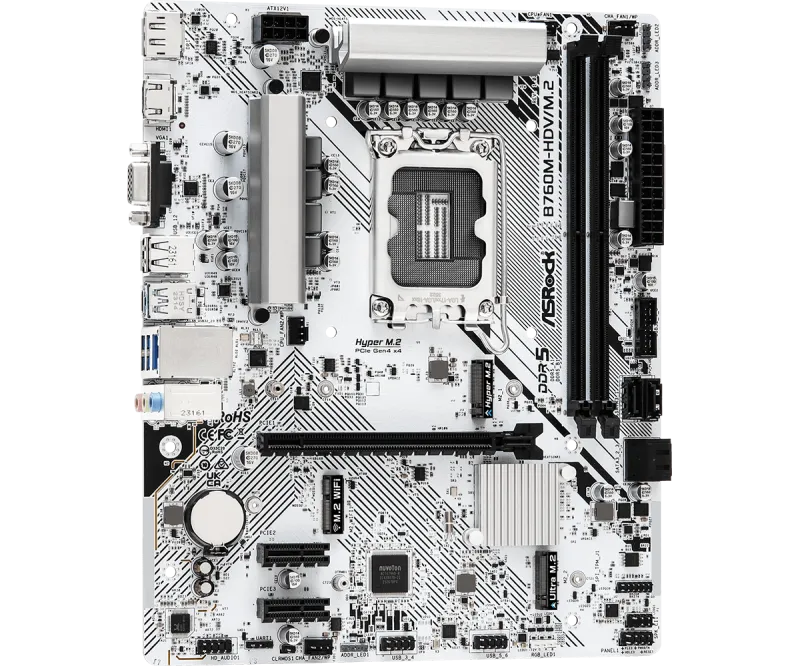

ASROCK B760M-HDV/M.2
Марка:
ASROCK
- OS:- Microsoft Windows® 10 64-bit / 11 64-bit
- Memory type:- Dual Channel DDR5 Memory Technology; - 2 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*; - Max. capacity of system memory: 96GB; - Supports Intel® Extreme Memory Profile (XMP) 3.0
- Graphics:- Intel® Xe Graphics Architecture (Gen 12); - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz; - 1 x D-Sub, s...
- Audio:- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- LAN:- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and St...
- Expansion Slots:CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

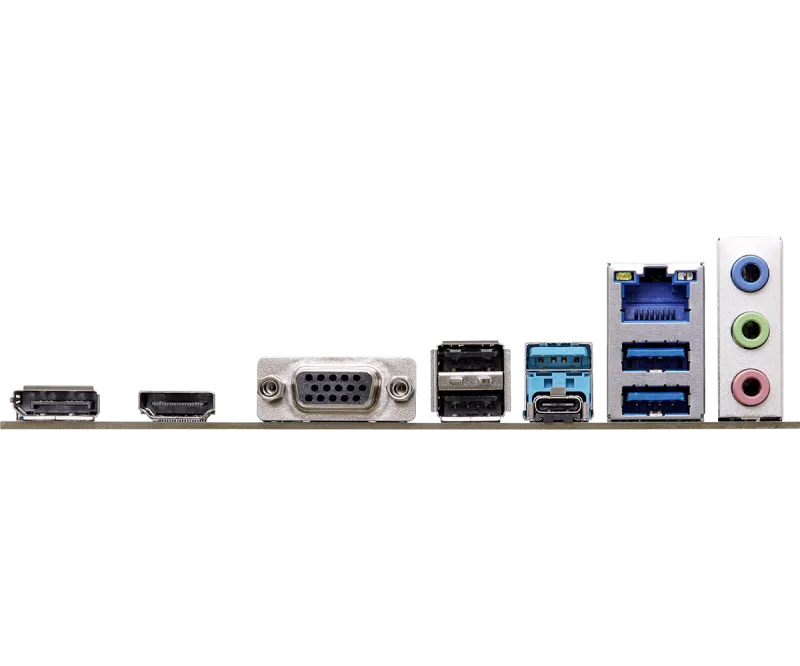

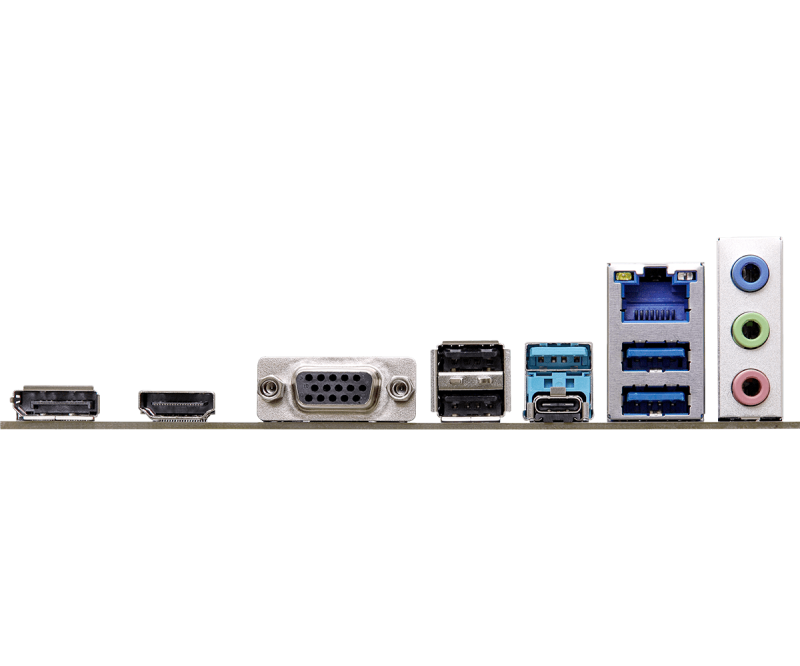

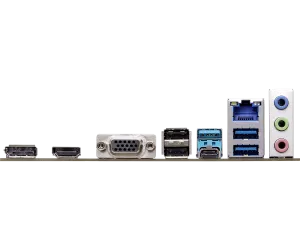

- I/O:- 2 x Antenna Mounting Points; - 1 x D-Sub Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen1 Type-C Port; - 3 x USB 3.2 Gen1 Type-A Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone
- Form Factor:- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
- CPU's supported:- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700); - Supports Intel® Hybrid Technology; - Supports Intel® Turbo Boost Max 3.0 Technology; - Supports Intel® Thermal Velocity Boost (TVB); - Supports Intel® Adaptive Boost Technology (ABT)
- Chipset:- Intel® B760
- Storage:Chipset: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes**; - 4 x SATA3 6.0 Gb/s Connectors
- Connectors:- 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 2 x Chassis/Water...
- BIOS:- 128Mb AMI UEFI Legal BIOS with GUI support
