GB B760M GAMING X AX
Марка:
GIGABYTE
- Other:Intel® Wi-Fi 6E AX211; WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.3; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
- Memory type:Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to...
- Graphics:Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Supp...
- Audio:Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
- LAN:Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Expansion Slots:CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16); * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset: 1 x PCI Express x16 slot, support...

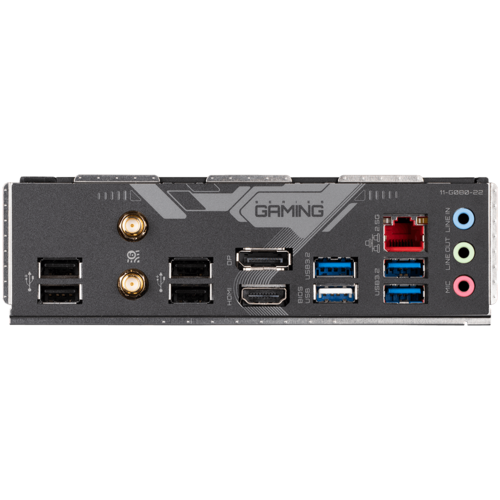

- I/O:3 x USB 3.2 Gen 1 ports; 5 x USB 2.0/1.1 ports; 2 x SMA antenna connectors (2T2R); 1 x HDMI 2.0 port; 1 x DisplayPort; 1 x RJ-45 port; 3 x audio jacks
- Form Factor:Micro ATX Form Factor; 24.4cm x 24.4cm
- CPU's supported:LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors; L3 cache varies with CPU
- Chipset:Intel® B760 Express Chipset
- Storage:CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, RAID 5, and RAID 10...
- Connectors:1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 3 x system fan headers; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel he...
- BIOS:1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
