ASROCK B450M-HDV R4.0 / AM4

Код:
B450M-HDV R4.0 / B450M-HDV R4.0
Марка:
10109 лв.

 изчерпана наличност



  • Форм-фактор:
    - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm - Solid Capacitor design
  • Гаранция:
    36 Months
  • Memory Type:
    - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC)...
  • Graphics:
    - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Three graphics output options: D-Sub, DVI-D and HDMI; - Supports Triple Monitor...
  • Audio:
    - 7.1 CH HD Audio (Realtek ALC887 Audio Codec); - Supports Surge Protection; - ELNA Audio Caps
  • LAN:
    - PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111H; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE
  • Expansion Slots:
    AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge); - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*; AMD Ryzen series CPUs (Picasso, Raven Ridge); - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*; AMD Athlon series CPUs; - 1 x PCI Expre...
  • CPU's supported:
    - AMD AM4 Socket; - 6 Power Phase design; - Supports CPU up to 105W

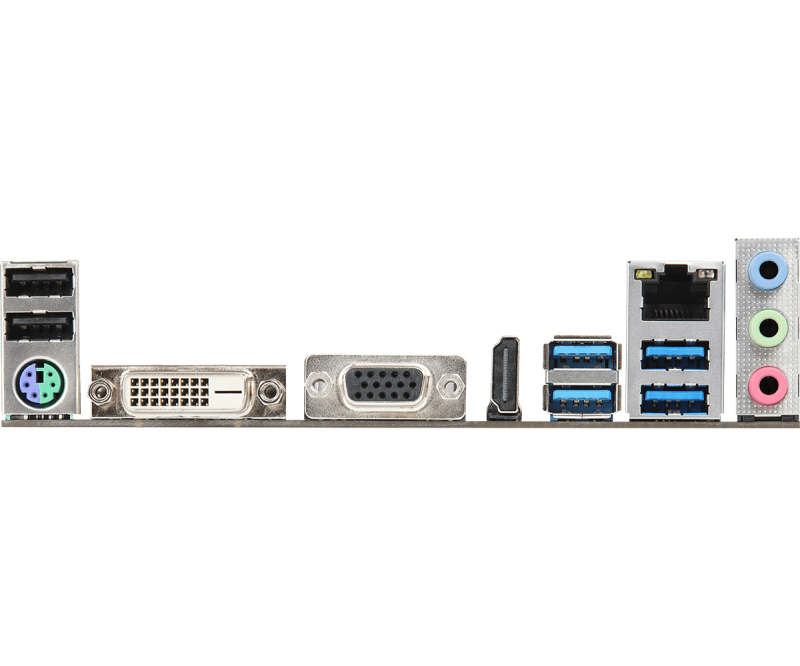

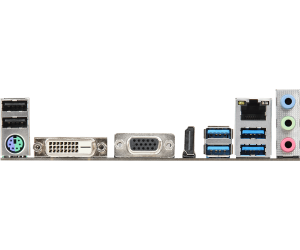

  • I/O:
    - 1 x PS/2 Mouse/Keyboard Port; - 1 x D-Sub Port; - 1 x DVI-D Port; - 1 x HDMI Port; - 2 x USB 2.0 Ports (Supports ESD Protection); - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Aud...
  • Chipset:
    - AMD Promontory B450
  • Connectors:
    - 1 x COM Port Header; - 1 x TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin)*; - 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)**; - 1 x 24 pin ATX Power Connector; - 1 x 4 pin 12V Power Connector; - 1 x Front...
  • BIOS:
    - 128Mb AMI UEFI Legal BIOS with GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - DRAM Voltage multi-adjustment
  • Storage:
    - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug; - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, P...
