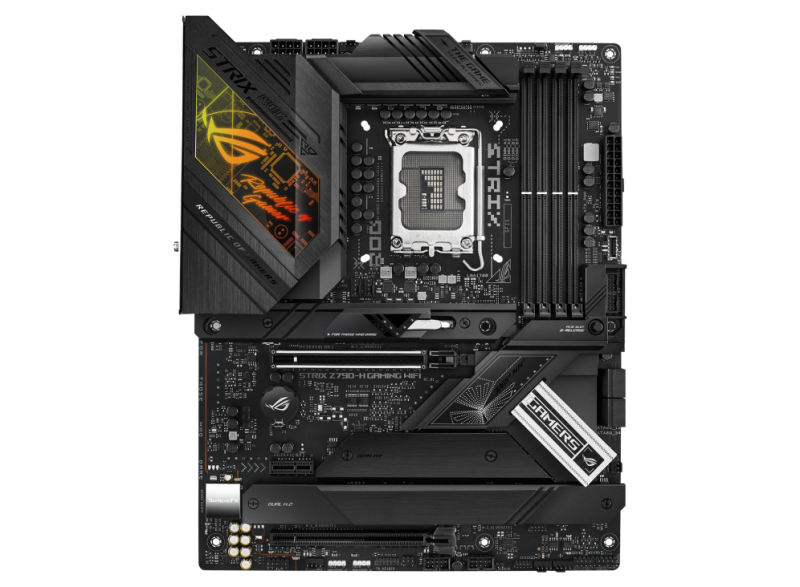

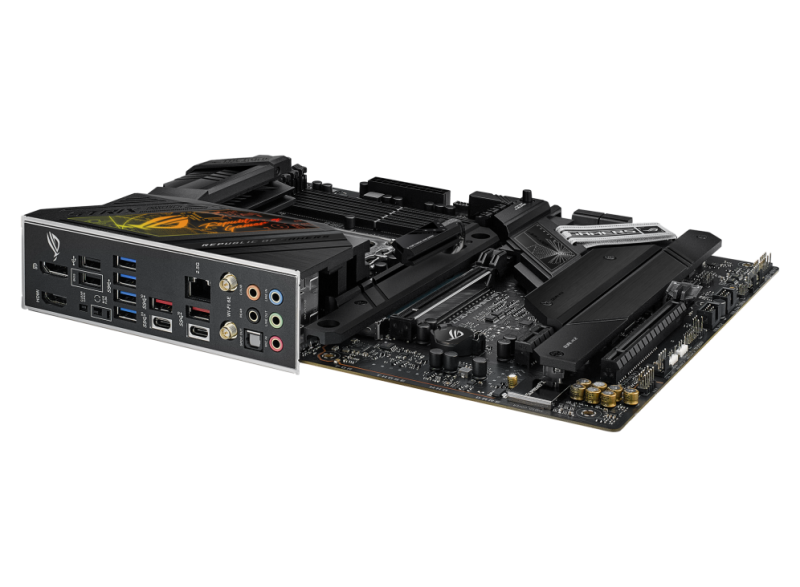

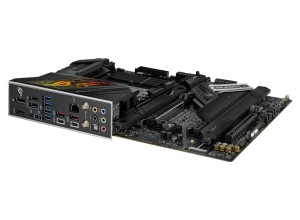

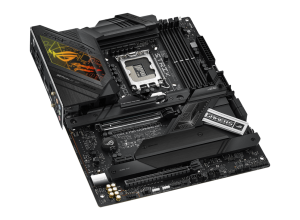

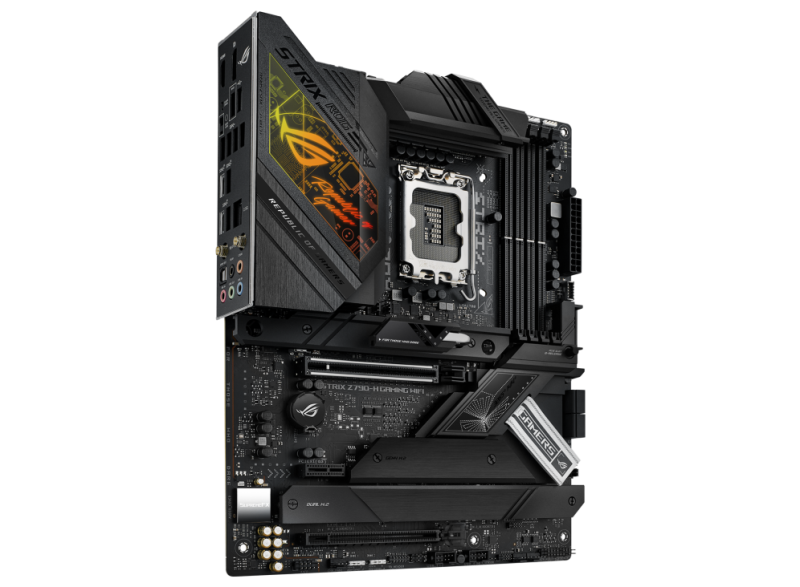

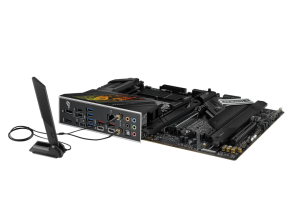

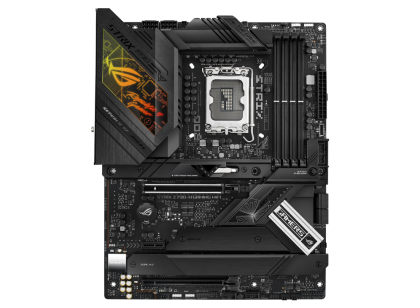

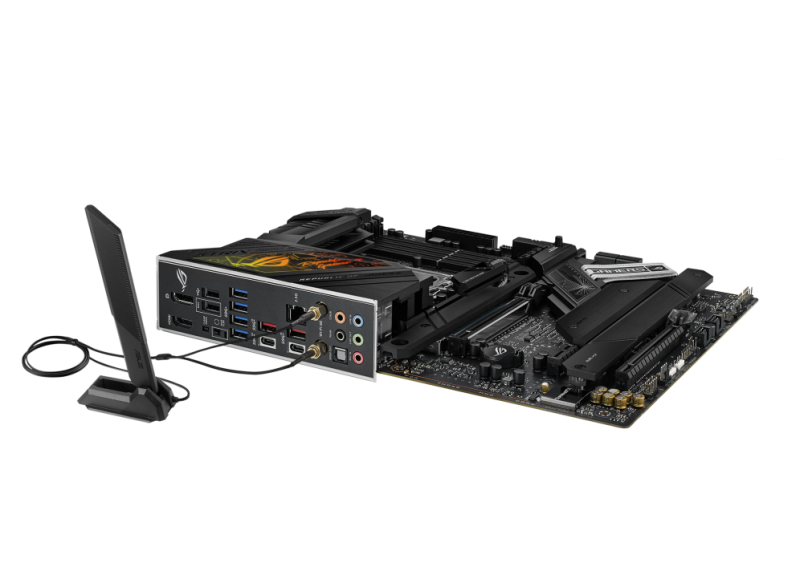

ASUS ROG STRIX Z790-H GAM WIFI
Марка:
ASUS
- OS:Windows® 11, Windows® 10 64-bit
- Other:Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) ; Supports 2.4/5/6GHz frequency band*; Bluetooth® v5.3
- Memory type:4 x DIMM, Max. 192GB, DDR5; 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800; Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Pr...
- Graphics:1 x DisplayPort**; 1 x HDMI® port***
- Audio:ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A; - Impedance sense for front and rear headphone outputs; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output an...
- LAN:1 x Intel® 2.5Gb Ethernet; ASUS LANGuard
- Expansion Slots:Intel® 13th & 12th Gen Processors; 1 x PCIe 5.0 x16 slot; Intel® Z790 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode); 1 x PCIe 3.0 x1 slot
- I/O:1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®); 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®); 4 x USB 3.2 Gen 1 ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A) ; 1 x DisplayPort; 1 x HDMI® port; 1 x Wi-Fi Module; 1 x Intel® 2.5Gb Ethernet port...
- Form Factor:ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- CPU's supported:Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- Chipset:Intel® Z790 Chipset
- Storage:Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel® 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); Intel® Z790 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mo...
- Connectors:1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 5 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connectors; 4 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 2x2 connect...
- BIOS:256 Mb Flash ROM, UEFI AMI BIOS
