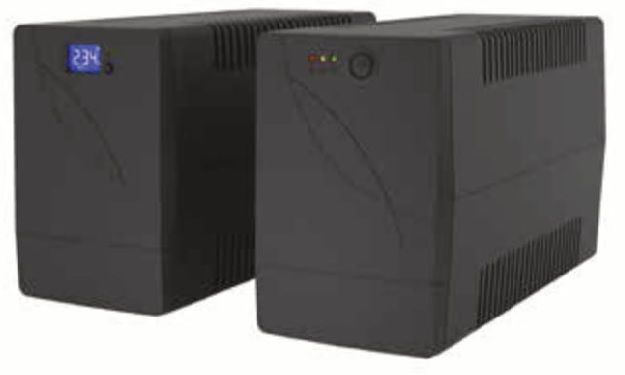

GUARDIAN 800AP 800VA/AVR
Марка:
INFORM
-
Manufacturer:INFORM
-
Mnfr Part #:GUARDIAN 800AP
-
Model:800AP 800VA/AVR
-
Capacity:800 VA
-
Type:Line-interactive
-
Input:Voltage: 220V or 230V; Input Voltage Range: 172 to 286VAC; Frequency: 50 or 60 Hz (auto sensing).
-
Output:Power Factor: 0.6; Voltage (On battery): 220V or 230V ± 1t0%; Waveform (On battery): Simulated Sinewave; Frequency (On battery): 50 or 60 Hz ± 1Hz; Voltage Regulation (AVR) :AVR automatically increases output voltage 15% above input voltage if -10% to...
-
Interface:USB Port (only AP models); Software Available with AP models only
-
Display:LED Display: Fault, Battery Mode, AC Mode; LCD Display (optional): Input & Output Voltage values, AC mode / Load Level / Battery Capacity Indicators.
-
Battery:Type: Maintenance-free lead acid batteries; Recharge Time: 6 hours ( to 90% of full capacity); Voltage: 12VDC; Quantity:1x12V 9Ah.
-
Environment:Operating Temperature: 0-40 °C; Humidity: 0 to 95% non-condensing; Audible Noise at 1m: <40dBA; Protection class: IP20.
-
Standarts:EN 62040-1-1 (safety), EN 62040-2(EMC)
-
Dimensions:101x298x142 mm
