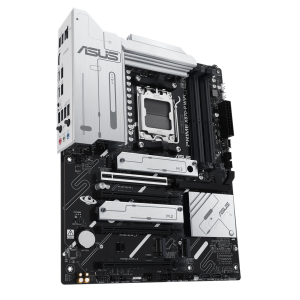

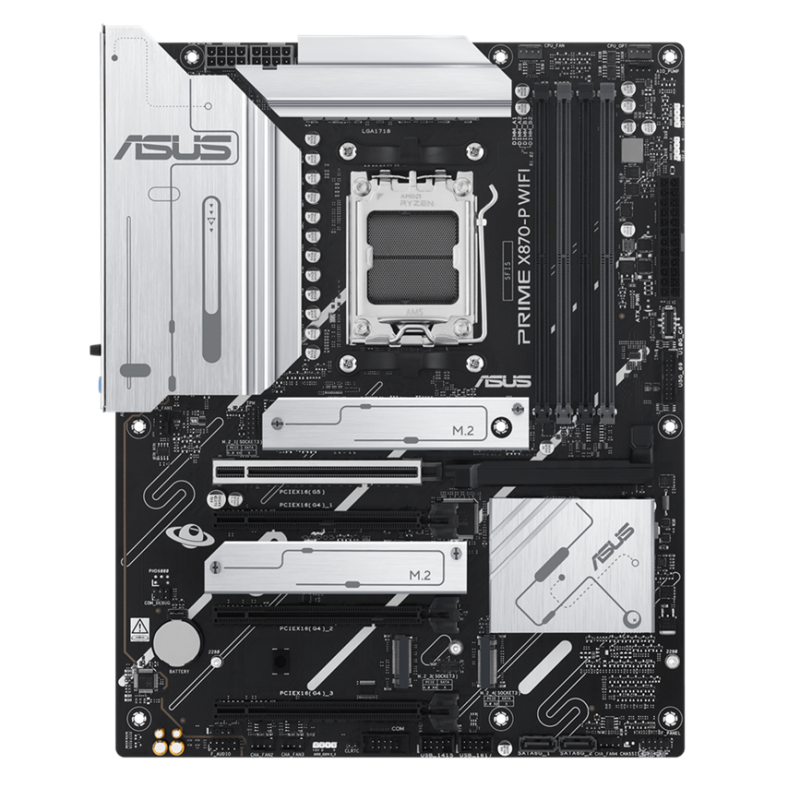

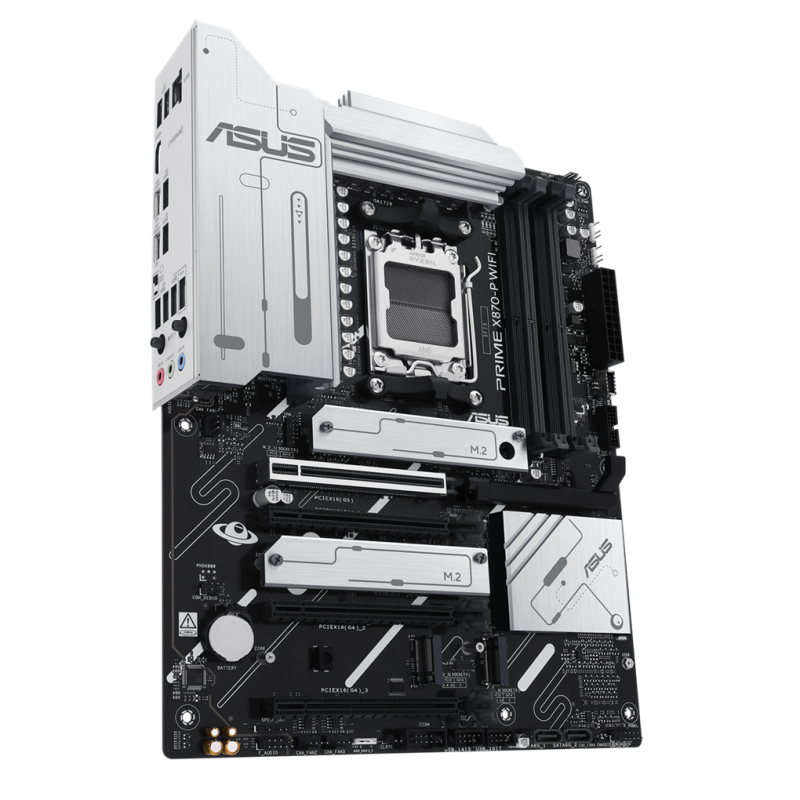

ASUS PRIME X870-P WIFI
Марка:
ASUS
- Manufacturer:ASUS
- Wireless:Wi-Fi 7 2x2 Wi-Fi 7 (802.11be); Supports 2.4/5/6GHz frequency band; Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
- Memory type:4 x DIMM slots, max. 192GB, DDR5; Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors; ECC and Non-ECC, Un-buffered DIMM; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced...
- Graphics:1 x HDMI™ port; 2 x USB4® (40Gbps) ports support USB Type-C® display outputs
- Audio:Realtek 7.1 Surround Sound High Definition Audio CODEC; Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; Supports up to 24-Bit/192 kHz playback; Audio Features; Audio Shielding; Premium audio capacitors; Dedicated audio PCB layers
- LAN:1 x Realtek 2.5Gb Ethernet, ASUS LANGuard
- Expansion Slots:AMD Ryzen™ 9000 & 7000 Series Desktop Processors; 1 x PCIe 5.0 x16 slot (supports x16 mode); AMD Ryzen™ 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD X870 Chipset; 3 x PCIe 4.0 x16 slots (support x1 mode)

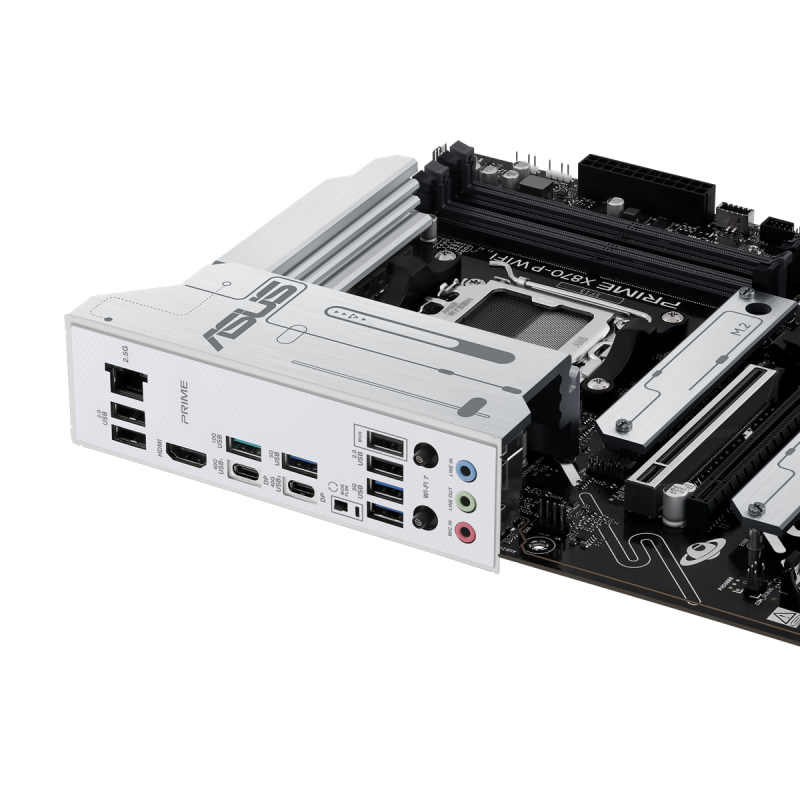

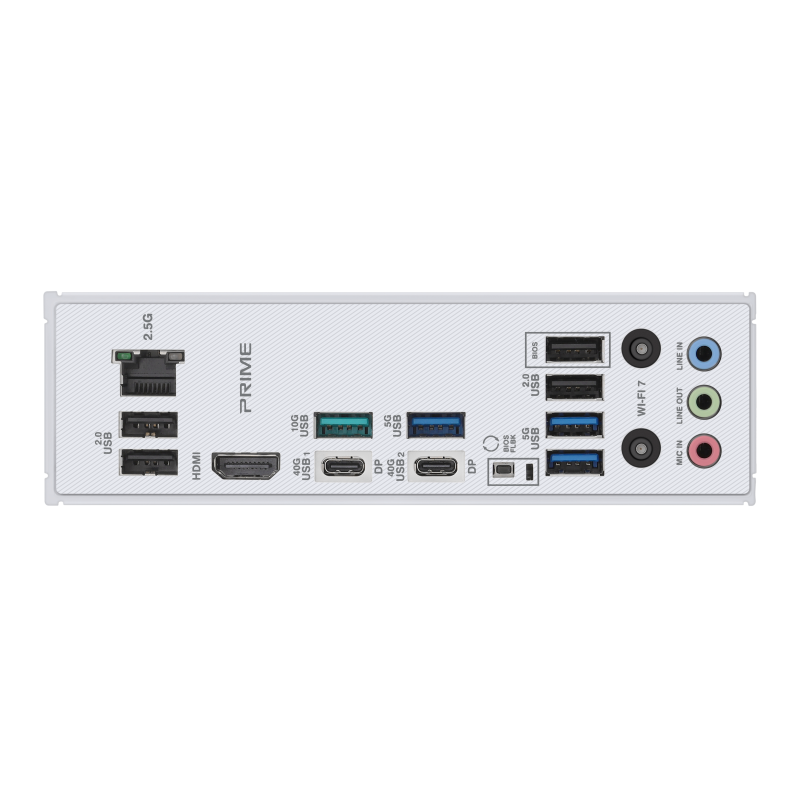

- I/O:Back Panel I/O Ports; 2 x USB4® (40Gbps) ports (2 x USB Type-C®); 1 x USB 10Gbps port (1 x Type-A); 3 x USB 5Gbps ports (3 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x HDMI™ port; 1 x Wi-Fi module; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1...
- Form Factor:ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- CPU's supported:AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Chipset:AMD X870 Chipset
- Storage:Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports; AMD Ryzen™ 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); AMD Ryzen™ 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4...
- Connectors:Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connectors; Storage Related; 4 x M.2 slo...
- BIOS:256 Mb Flash ROM, UEFI AMI BIOS
- Features:ASUS 5X PROTECTION III; DIGI+ VRM (- Digital power design with DrMOS); LANGuard; Overvoltage protection; SafeSlot; Stainless-steel back I/O; ASUS Q-Design; M.2 Q-Latch; PCIe Slot Q-Release; Q-Antenna; Q-Dashboard; Q-DIMM; Q-LED Core; Q-Slot; ASUS Therm...
