GB B760M D3HP DDR4
Марка:
GIGABYTE
- OS:Support for Windows 11 64-bit;Support for Windows 10 64-bit
- Manufacturer:GIGABYTE
- Memory type:Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O....
- Graphics:Integrated Graphics Processor-Intel® HD Graphics support;- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;** Support fo...
- Audio:Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out
- LAN:Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
- Expansion Slots:CPU;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16;* The PCIEX16 slot can only support a graphics card or an NVMe SSD.;Chipset;- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

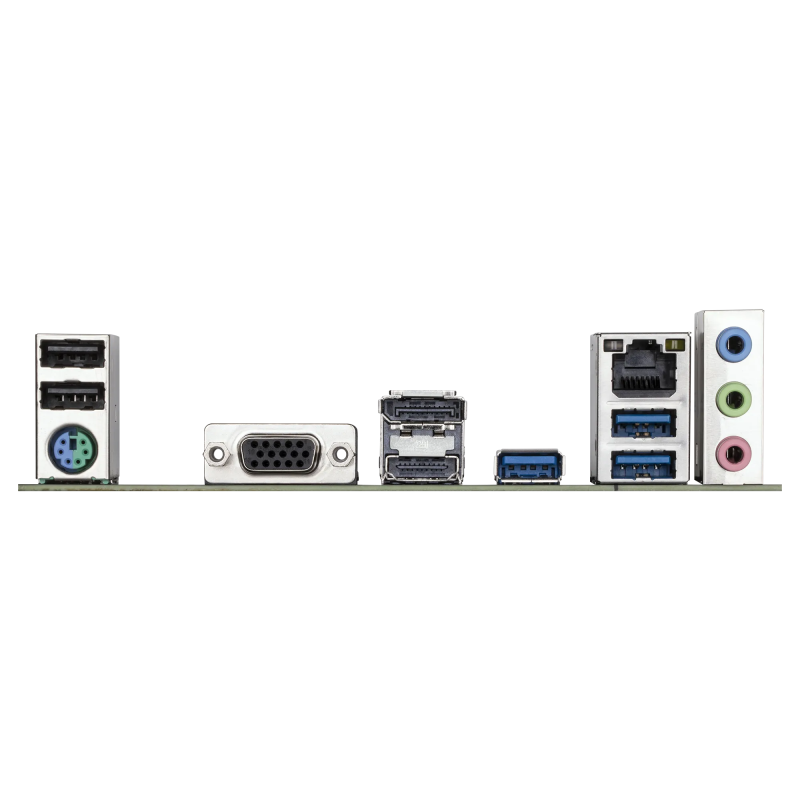

- I/O:Chipset;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header);- 2 x USB 2.0/1.1 ports on the back panel;Chip...

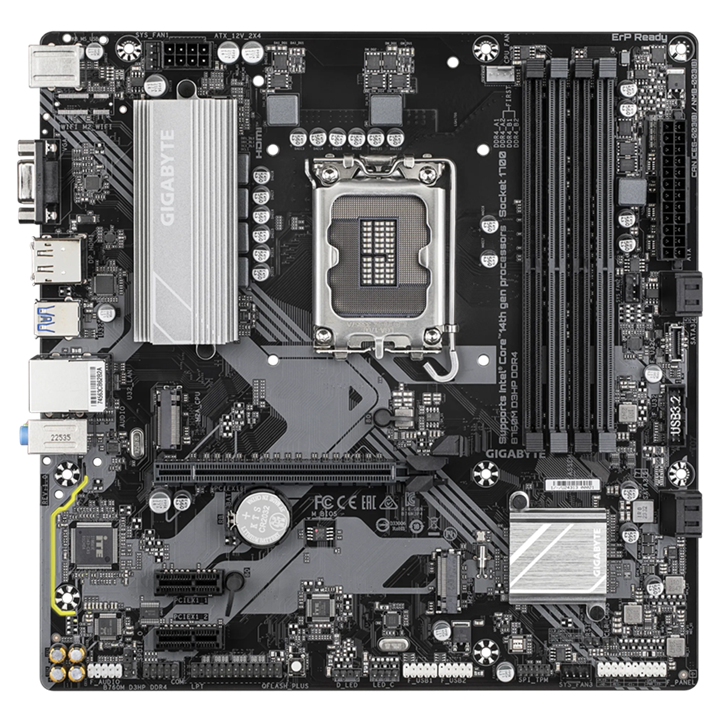

- Form Factor:Micro ATX Form Factor; 24.4cm x 24.4cm
- CPU's supported:LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors; L3 cache varies with CPU;(Please refer "CPU Support List" for more information.)
- Chipset:Intel® B760 Express Chipset
- Storage:CPU;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU);Chipset;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 suppo...
- Connectors:iTE® I/O Controller Chip;1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;3 x system fan headers;1 x addressable LED strip header;1 x RGB LED strip header;2 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x...
- BIOS:1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Features:Support for GIGABYTE Control Center (GCC);* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.;Support for Q-Flash;Support for Q-Flash Plus
