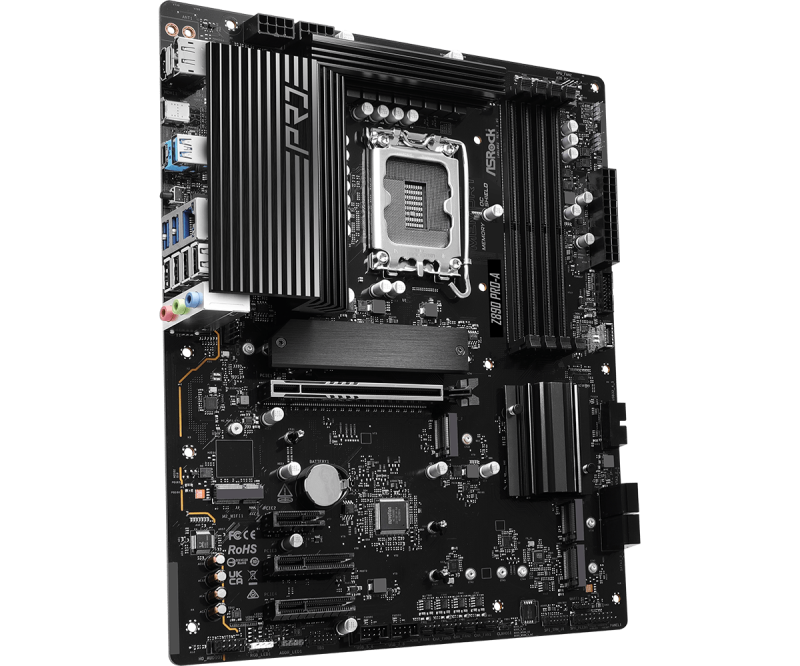

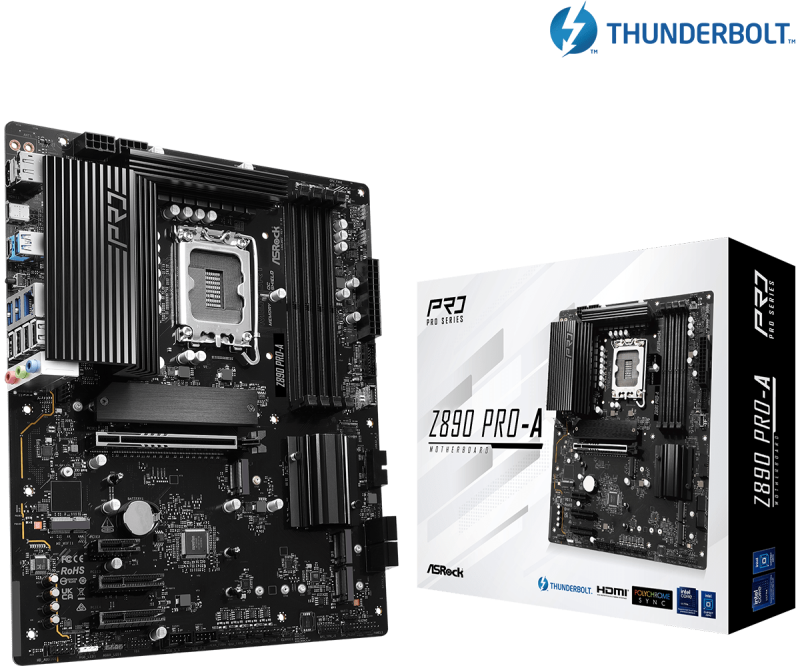

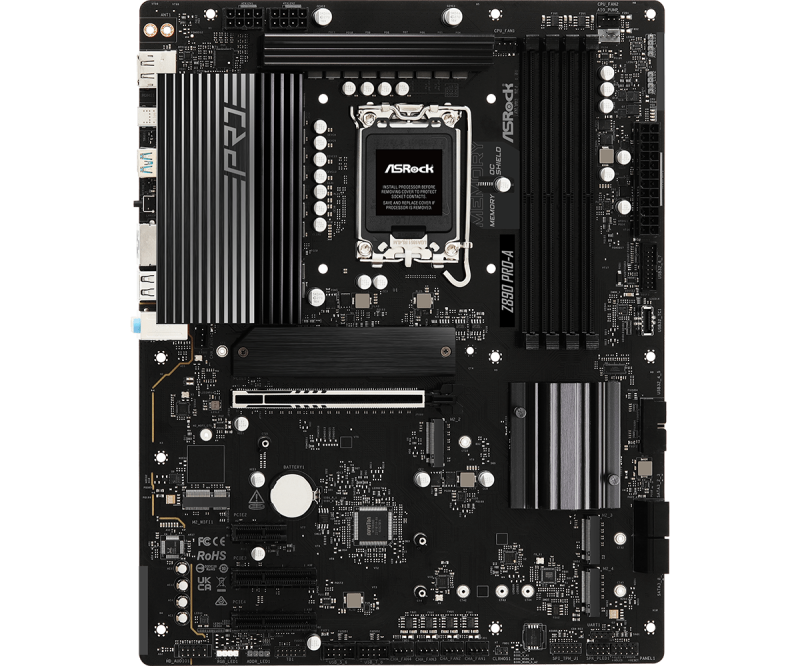

ASROCK Z890 PRO-A
Марка:
ACER
- OS:Microsoft Windows® 11 64-bit;Software;- ASRock Motherboard Utility (A-Tuning);- ASRock Dragon 2.5G LAN Software;- ASRock Polychrome SYNC;UEFI;- ASRock EZ Mode;- ASRock Full HD UEFI;- ASRock My Favorites in UEFI;- ASRock Auto Driver Installer;- ASRock I...
- Manufacturer:ASRock
- Memory type:- Dual Channel DDR5 Memory Technology;- 4 x DDR5 DIMM Slots;- Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)*;- Supports Clocked Unbuffered DIMM (CUDIMM);- Max. capacity of system memory: 256GB;- Supports Intel® Extreme Memory Profile (XM...
- Graphics:- Intel® Xe LPG Graphics Architecture;- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz;- 1 x Int...
- Audio:7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- LAN:- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s;- Dragon RTL8125BG;- Supports Dragon 2.5G LAN Software;- Smart Auto Adjust Bandwidth Control;- Visual User Friendly UI;- Visual Network Usage Statistics;- Optimized Default Setting for Game, Browser, and Streamin...
- Expansion Slots:CPU;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset;- 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode;- 1 x PCIe 4.0 x1 Slot (PCIE2);- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Inte...

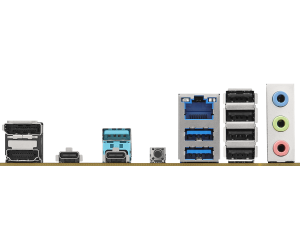

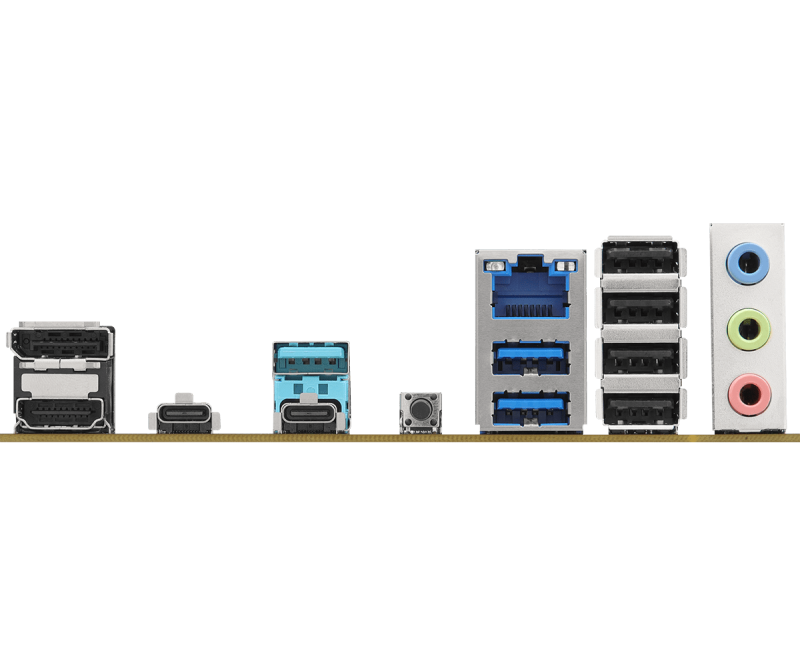

- I/O:CPU;- 1 x Thunderbolt™ 4 Type-C (Rear);- 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset:;- 1 x USB 3.2 Gen2x2 Type-C (Front);- 1 x USB 3.2 Gen2 Type-A (Rear);- 6 x USB 3.2 Gen1 (2 Rear, 4 Front);- 8 x USB 2.0 (4 Rear, 4 Front);- 2 x Antenna Mounting Points;-...
- Form Factor:- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm;- 2oz Copper PCB
- CPU's supported:- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM);- Supports Intel® Hybrid Technology;- Supports Intel® Turbo Boost Max 3.0 Technology;- Supports Intel® Thermal Velocity Boost (TVB);- Supports Intel® Adaptive Boost Technology (ABT);-...
- Chipset:Intel® Z890
- Storage:CPU;- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;Chipset;- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4...
- Connectors:- 1 x SPI TPM Header;- 1 x Power LED and Speaker Header;- 1 x RGB LED Header;- 3 x Addressable LED Headers;- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control);- 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);- 1 x AIO Pump Fan Conn...
- BIOS:256Mb AMI UEFI Legal BIOS with GUI support
- Features:Superb Productivity;- PCIe Gen5 (Graphics, M.2);- Dual Channel DDR5;- Thunderbolt™ 4 Type-C Port (40 Gb/s);Rock-Solid Durability;- 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT;- Memory OC Shield;Ultrafast Connectivity;- 2.5G LAN;EZ Update;- BIOS Flashb...
