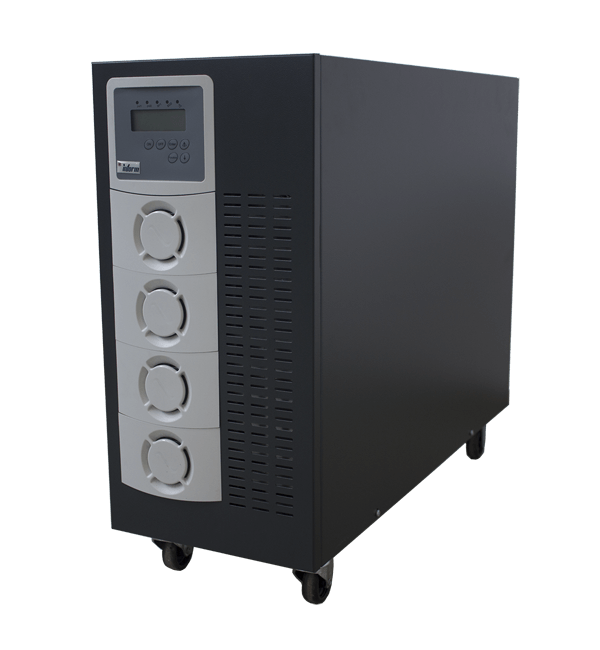

DSP FLEXPOWER 3KVA W/BATT
Марка:
INFORM
- Input:Phase Configuration 1Ph + N + PE;Nominal Voltage 220V/230/240V;Minimum Voltage 160 V;Maximum Voltage 288 V;Frequency ± 5 Hz;Power Factor 0.99
- Output:Power Factor 0.8;Phase Configuration 1Ph + N + PE;Nominal Voltage 220V / 230 / 240V (adjustable);Wave Form Pure Sine Wave;Total Harmonic Distortion at 100% linear load <3%;Frequency 50Hz or 60Hz (adjustable);Frequency Tolerance (free running) ±0.2 %;St...
- Display:LED + LCD Display Line Mode, Back up Mode, Eco Mode, Bypass Supply, Battery Low, Battery Bad/Disconnect, Overload, UPS Fault, Interruption during transfer;LCD Display Input Voltage, Input Frequency, Output Voltage, Output Frequency, Load%, Battery Volt...
- Battery:Type Maintenance-free lead acid batteries;Recharge Time (for Internal Battery) 4-6h up to 90%;Quantity per String 6pcs 12V Batteries;Voltage 72 VDC;Internal Batteries (Optional) 7Ah, 9Ah;Cold Start Present
- Environment:Operating Temperature 0 ˚C.... + 40˚C;Proposed Temp. to extend battery life 20 - 25 ˚C;Humidity 0 - 95% (non-condensing);Audible Noise at 1 m;Protection Class IP 20
- Standarts:EN62040-1-1 (Safety); EN62040-2 (EMC)
- Dimensions:449x226x454mm
