GB X870 GAMING WF6
Марка:
GIGABYTE
- Manufacturer:GIGABYTE

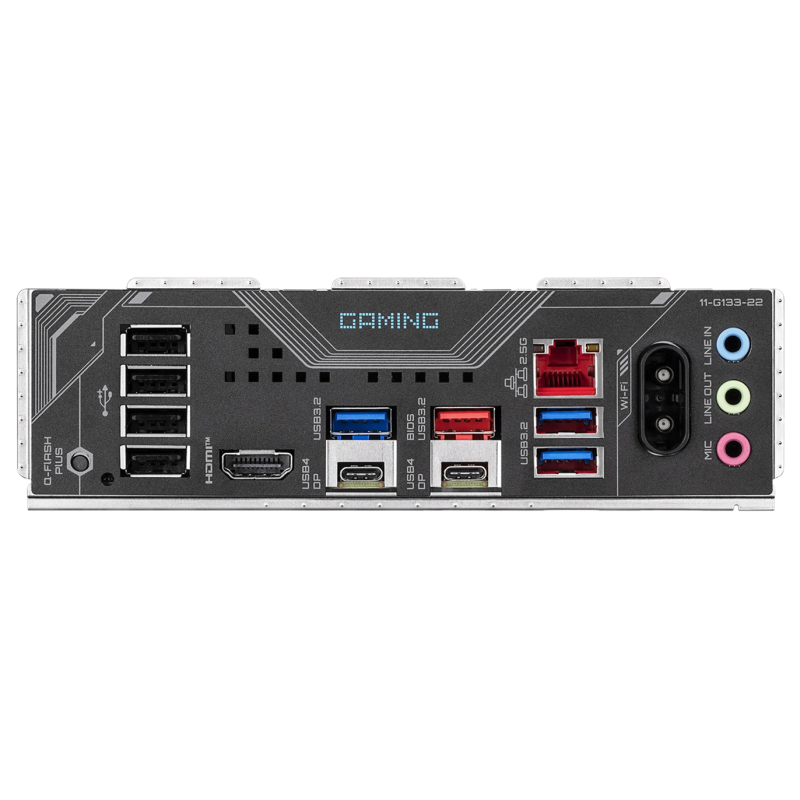

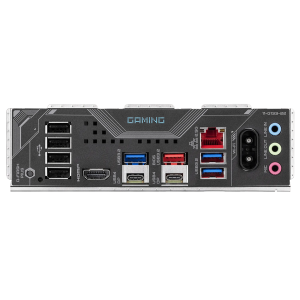

- Interface:CPU+ASMedia USB4® controller;- 2 x USB4® USB Type-C® ports on the back panel CPU;- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel;- 1 x USB 3.2 Gen 1 port on the back panel Chipset+2 USB 2.0 Hubs;- 8 x USB 2.0/1.1 ports (4 ports on the back pane...
- Wireless:Realtek® Wi-Fi 6 RTL8851BE (PCB rev. 1.0);- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 80MHz wireless standard;(Actual data rate may vary depending on environment and equipment.)
- Memory type:Support for DDR5;8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM cap...
- Graphics:Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller;- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz;* Support for DisplayPort 1.4 version and...
- Audio:Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
- LAN:Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Expansion Slots:1 x PCI Express x16 slot (PCIEX16), integrated in the CPU;-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode;-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe...
- I/O:iTE® I/O Controller Chip
- Form Factor:ATX Form Factor; 30.5cm x 24.4cm
- CPU's supported:AMD Socket AM5, support for;-AMD Ryzen™ 9000 Series Processors/;-AMD Ryzen™ 8000 Series Processors/;-AMD Ryzen™ 7000 Series Processors
- Chipset:AMD X870
- Storage:1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs;-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;-AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2...
- Connectors:Internal I/O Connectors;-1 x 24-pin ATX main power connector;-1 x 8-pin ATX 12V power connector;-1 x 4-pin ATX 12V power connector;-1 x CPU fan header;-1 x CPU fan/water cooling pump header;-4 x system fan headers;-3 x addressable RGB Gen2 LED strip he...
- BIOS:1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Features:Support for GIGABYTE Control Center (GCC);* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.;Support for Q-Flash;Support for Q-Flash Plus;Support...
