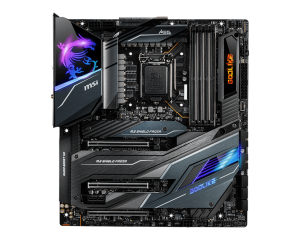

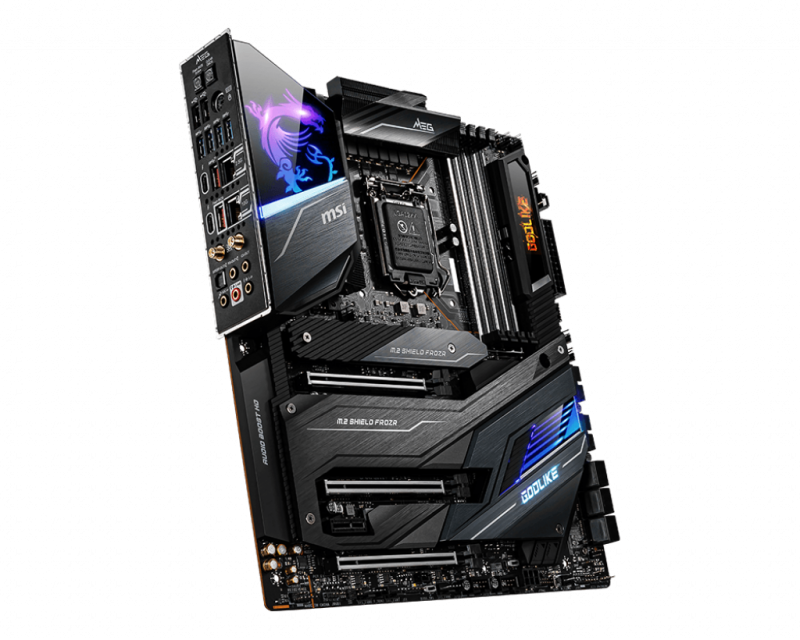

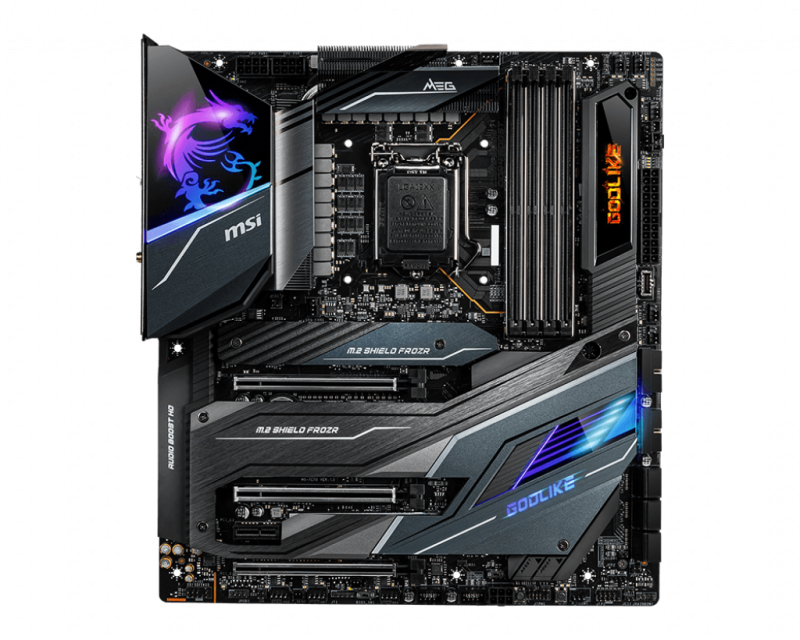

MSI MEG Z490 GODLIKE
Марка:
MSI
- Other:Intel® AX201; Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps; WiFi 6 Pre-Certified; Supports Bluetooth® 5.1 , FIPS, FISMA; The Wireless module is pre-install in the M2 (Key-E) slot
- Memory type:4x DDR4 memory slots, support up to 128GB1; Supports 1R 2133/2666/2933 MHz; 1DPC 1R Max speed up to 5000+ MHz; 1DPC 2R Max speed up to 4400+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports...
- Graphics:Intel® JHL7540 Thunderbolt™ 3 Controller; 2x Thunderbolt™ 3 (Type-C) ports on the back panel; Supports Thunderbolt™ 3 with a maximum resolution of 5120x2880 @60 Hz1; Supports DisplayPort 1.4 with a maximum resolution of 4096x2304 @60 Hz; Maximum shared...
- Audio:Realtek® ALC1220 Codec + ESS E9018 combo DAC; 7.1-Channel High Definition Audio; Supports Optical S/PDIF outp
- LAN:1x Aquantia® AQC107 10G LAN controller; 1x Realtek® RTL8125B 2.5G LAN controller
- Expansion Slots:3x PCIe 3.0 x16 slots, support x16/ x0/ x4 or x8/ x8/ x4 mode1; 1x PCIe 3.0 x1 slot

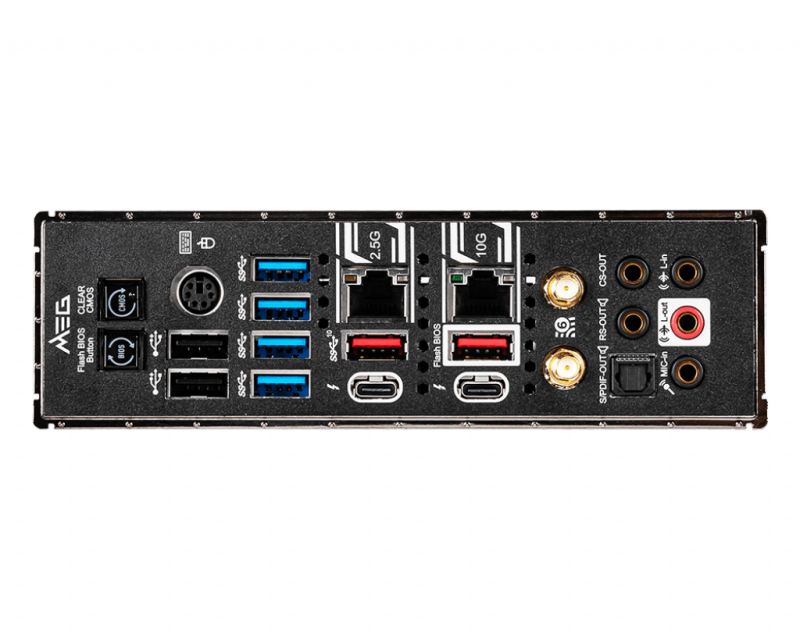

- I/O:Clear CMOS Button; PS/2 Keyboard / Mouse Port; USB 3.2 Gen1 5Gbps (Type-A); 2.5G LAN; 10G Super LAN; Wi-Fi /Bluetooth Antenna Connectors; HD Audio Connectors; Flash BIOS Button; USB 2.0; Thunderbolt 3 (40Gbps); USB 3.2 Gen2 10Gbps (Type-A); Optical S/P...
- Form Factor:12 in. x 10.9 in. (30.5 cm x 27.7 cm); E-ATX Form Factor
- CPU's supported:Supports 10th Gen Intel® Core™ and Pentium® Gold /Celeron® processors for LGA 1200 socket1
- Chipset:Intel® Z490 Chipset
- Storage:Intel® Z490 Chipset; 6x SATA 6Gb/s ports1,2; 3x M.2 slots (Key M); M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices1; M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices2; M2_3...
- Connectors:1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 1x 6-pin ATX PCIE power connector; 6x SATA 6Gb/s connectors; 3x M.2 slots (M-Key); 1x USB 3.2 Gen 2 10Gbps Type-C port; 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB...
